DPX Serisi DIN-Rail (Ray montaj) DC-DC Konvertör


	12, 24 veya 48VDC girişli
	Tek, çift veya üç çıkışlı
	14.9 - 60W çıkış gücü
	Input fuse protection
	Meet EN55022 Class B
	Input reverse polarity protection
	Input in-rush current protection
	Overload and short circuit protection
	Over voltage protection
	Reliable snap-on for DIN rail TS-35/7.5 or TS-35/15
	I/O-isolation 1600 VDC
	Output DC-OK indicator

Uygulama Alanları

Açıklama

Bu DIN rayına monte DC-DC dönüştürücüler, yaygın olarak kullanılan 24Vdc DIN ray veriyolundan ek, izole ve düzenlenmiş voltajlar üretmek için idealdir. Tamamen korumalı ve B Sınıfı EMC performansı ile DPX, tek, çift veya üçlü çıkış modelleri ve 15 ila 60W güç seviyelerinde mevcuttur. Yaygın olarak talep edilen tüm voltajlar seri tarafından karşılanır ve üniteler 2: 1 veya 4: 1 aralıklarla 12V, 24V veya 48V nominal dc girişlerden çalışır.

Teknik Broşür, Manuel ve Dosyalar

Benzer Ürünler

	DPX-15 Datasheet
	DPX-20 Datasheet
	DPX-30 Datasheet
	DPX-40 Datasheet
	DPX-60 Datasheet
	DPX-40 Üç çıkışlı Datasheet
	DPX Kullanım Klavuzu
	3D Drawings

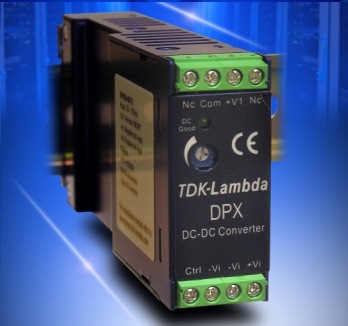

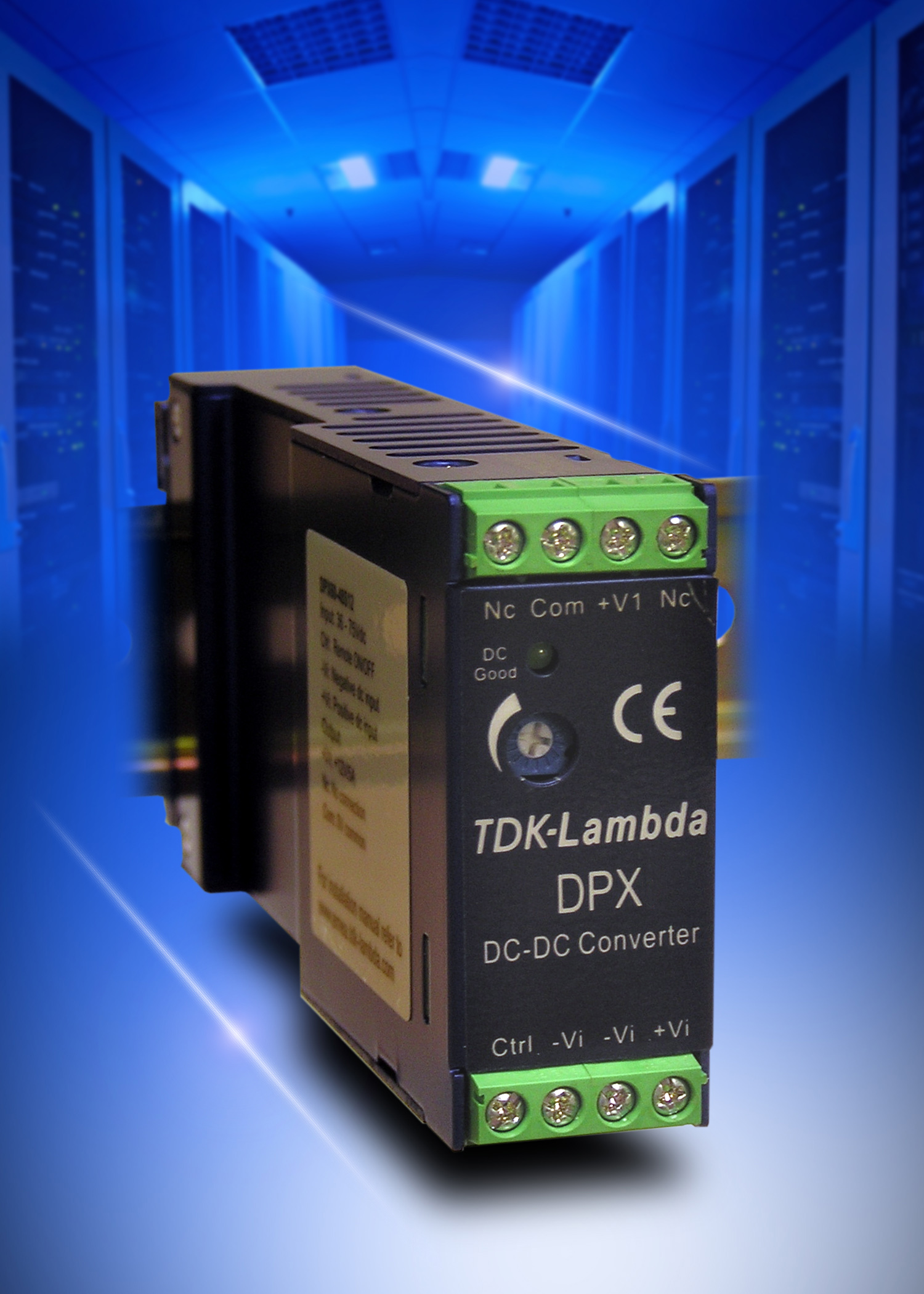

	Ürün resmi

DDA Serisi 250-500W wide range non isolated DC-DC converters

Ürün Listesi DPX-15 / 15W

Model Adı	Çıkış Gücü	Giriş Gerilimi	Çıkış Gerilim/Akım	Construction	Datasheet
DPX15-24WS3P3	14.9W	9.5 - 36V	3.3V / 4.5A	Enclosed din-rail
DPX15-24WS05	15W	9.5 - 36V	5V / 3A	Enclosed din-rail
DPX15-24WS5P1	15.3W	9.5 - 36V	5.1V / 3A	Enclosed din-rail
DPX15-24WS12	15W	9.5 - 36V	12V / 1.25A	Enclosed din-rail
DPX15-24WS15	15W	9.5 - 36V	15V / 1A	Enclosed din-rail
DPX15-48WS3P3	14.9W	18 - 75V	3.3V / 4.5A	Enclosed din-rail
DPX15-48WS05	15W	18 - 75V	5V / 3A	Enclosed din-rail
DPX15-48WS5P1	15.3W	18 - 75V	5.1V / 3A	Enclosed din-rail
DPX15-48WS12	15W	18 - 75V	12V / 1.25A	Enclosed din-rail
DPX15-48WS15	15W	18 - 75V	15V / 1A	Enclosed din-rail
DPX15-24WD05	15W	9.5 - 36V	5V / 1.5A -5V / 1.5A	Enclosed din-rail
DPX15-24WD12	15W	9.5 - 36V	12V / 0.63A -12V / 0.63A	Enclosed din-rail
DPX15-24WD15	15W	9.5 - 36V	15V / 0.5A -15V / 0.5A	Enclosed din-rail
DPX15-48WD05	15W	18 - 75V	5V / 1.5A -5V / 1.5A	Enclosed din-rail
DPX15-48WD12	15W	18 - 75V	12V / 0.63A -12V / 0.63A	Enclosed din-rail
DPX15-48WD15	15W	18 - 75V	15V / 0.5A -15V / 0.5A	Enclosed din-rail

Ürün Listesi DPX-20 / 20W

Model Adı	Çıkış Gücü	Giriş Gerilimi	Çıkış Gerilimi/Akımı	Construction	Datasheet
DPX20-24WS3P3	18.1W	9.5 - 36V	3.3V / 5.5A	Enclosed din-rail
DPX20-24WS05	20W	9.5 - 36V	5V / 4A	Enclosed din-rail
DPX20-24WS12	20W	9.5 - 36V	12V / 1.67A	Enclosed din-rail
DPX20-24WS15	20W	9.5 - 36V	15V / 1.33A	Enclosed din-rail
DPX20-48WS3P3	18.1W	18 - 75V	3.3V / 5.5A	Enclosed din-rail
DPX20-48WS05	20W	18 - 75V	5V / 4A	Enclosed din-rail
DPX20-48WS12	20W	18 - 75V	12V / 1.67A	Enclosed din-rail
DPX20-48WS15	20W	18 - 75V	15V / 1.33A	Enclosed din-rail
DPX20-24WD05	20W	9.5 - 36V	5V / 2A -5V / 2A	Enclosed din-rail
DPX20-24WD12	20W	9.5 - 36V	12V / 0.83A -12V / 0.83A	Enclosed din-rail
DPX20-24WD15	20W	9.5 - 36V	15V / 0.67A -15V / 0.67A	Enclosed din-rail
DPX20-48WD05	20W	18 - 75V	5V / 2A -5V / 2A	Enclosed din-rail
DPX20-48WD12	20W	18 - 75V	12V / 0.83A -12V / 0.83A	Enclosed din-rail
DPX20-48WD15	20W	18 - 75V	15V / 0.67A -15V / 0.67A	Enclosed din-rail

Ürün Listesi DPX-30 / 30W

Model Adı	Çıkış Gücü	Giriş Gerilimi	Çıkış Gerilimi/Akımı	Construction	Datasheet
DPX30-24WS3P3	19.8W	10 - 40V	3.3V / 6A	Enclosed din-rail
DPX30-24WS05	30W	9.5 - 36V	5V / 6A	Enclosed din-rail
DPX30-24WS12	30W	10 - 40V	12V / 2.5A	Enclosed din-rail
DPX30-24WS15	30W	10 - 40V	15V / 2A	Enclosed din-rail
DPX30-48WS3P3	19.8W	18 - 75V	3.3V / 6A	Enclosed din-rail
DPX30-48WS05	30W	18 - 75V	5V / 6A	Enclosed din-rail
DPX30-48WS12	30W	18 - 75V	12V / 2.5A	Enclosed din-rail
DPX30-48WS15	30W	18 - 75V	15V / 2A	Enclosed din-rail
DPX30-24WD12	30W	10 - 40V	12V / 1.25A -12V / 1.25A	Enclosed din-rail
DPX30-24WD15	30W	10 - 40V	15V / 1A -15V / 1A	Enclosed din-rail
DPX30-48WD12	30W	18 - 75V	12V / 1.25A -12V / 1.25A	Enclosed din-rail
DPX30-48WD15	30W	18 - 75V	15V / 1A -15V / 1A	Enclosed din-rail

Ürün Listesi DPX-40 / 40W

Model Adı	Çıkış Gücü	Giriş Gerilimi	Çıkış Gerilimi/Akımı	Construction	Datasheet
DPX40-24WSP3	33W	9.5 - 36V	3.3V / 10A	Enclosed din-rail
DPX40-24WS05	40W	9.5 - 36V	5V / 8A	Enclosed din-rail
DPX40-24WS12	40W	9.5 - 36V	12V / 3.3A	Enclosed din-rail
DPX40-24WS15	40W	9.5 - 36V	15V / 2.67A	Enclosed din-rail
DPX40-48WS3P3	33W	18 - 75V	3.3V / 10A	Enclosed din-rail
DPX40-48WS05	40W	18 - 75V	5V / 8A	Enclosed din-rail
DPX40-48WS12	40W	18 - 75V	12V / 3.3A	Enclosed din-rail
DPX40-48WS15	40W	18 - 75V	15V / 2.67A	Enclosed din-rail
DPX40-24WD12	40W	9.5 - 36V	12V / 1.67A -12V / 1.67A	Enclosed din-rail
DPX40-24WD15	40W	9.5 - 36V	15V / 1.33A -15V / 1.33A	Enclosed din-rail
DPX40-48WD12	40W	18 - 75V	12V / 1.67A -12V / 1.67A	Enclosed din-rail
DPX40-48WD15	40W	18 - 75V	15V / 1.33A -15V / 1.33A	Enclosed din-rail
DPX40-12T3312	40W	9.5 - 18V	3.3V / 6A 12V / 0.4A -12V / -0.4A	Enclosed din-rail
DPX40-12T3315	40W	9.5 - 18V	3.3V / 6A 15V / 0.3A -15V / -0.3A	Enclosed din-rail
DPX40-12T0512	40W	9.5 - 18V	5V / 6A 12V / 0.4A -12V / -0.4A	Enclosed din-rail
DPX40-12T0515	40W	9.5 - 18V	5V / 6A 15V / 0.3A -15V / -0.3A	Enclosed din-rail
DPX40-24T3312	40W	18 - 36V	3.3V / 6A 12V / 0.4A -12V / -0.4A	Enclosed din-rail
DPX40-24T3315	40W	18 - 36V	3.3V / 6A 15V / 0.3A -15V / -0.3A	Enclosed din-rail
DPX40-24T0512	40W	18 - 36V	5V / 6A 12V / 0.4A -12V / -0.4A	Enclosed din-rail
DPX40-24T0515	40W	18 - 36V	5V / 6A 15V / 0.3A -15V / -0.3A	Enclosed din-rail
DPX40-48T3312	40W	36 - 75V	3.3V / 6A 12V / 0.4A -12V / -0.4A	Enclosed din-rail
DPX40-48T3315	40W	36 - 75V	3.3V / 6A 15V / 0.3A -15V / -0.3A	Enclosed din-rail
DPX40-48T0512	40W	36 - 75V	5V / 6A 12V / 0.4A -12V / -0.4A	Enclosed din-rail
DPX40-48T0515	40W	36 - 75V	5V / 6A 15V / 0.3A -15V / -0.3A	Enclosed din-rail

Ürün Listesi DPX-60 / 60W

Model Adı	Çıkış Gücü	Giriş Gerilimi	Çıkış Gerilimi/Akımı	Construction	Datasheet
DPX60-24S3P3	46.2W	18 - 36V	3.3V / 14A	Enclosed din-rail
DPX60-24S05	60W	18 - 36V	5V / 12A	Enclosed din-rail
DPX60-24S12	60W	18 - 36V	12V / 5A	Enclosed din-rail
DPX60-24S15	60W	18 - 36V	15V / 4A	Enclosed din-rail
DPX60-48S3P3	46.2W	36 - 75V	3.3V / 14A	Enclosed din-rail
DPX60-24S05	60W	36 - 75V	5V / 12A	Enclosed din-rail
DPX60-48S12	60W	36 - 75V	12V / 5A	Enclosed din-rail
DPX60-48S15	60W	36 - 75V	15V / 4A	Enclosed din-rail
