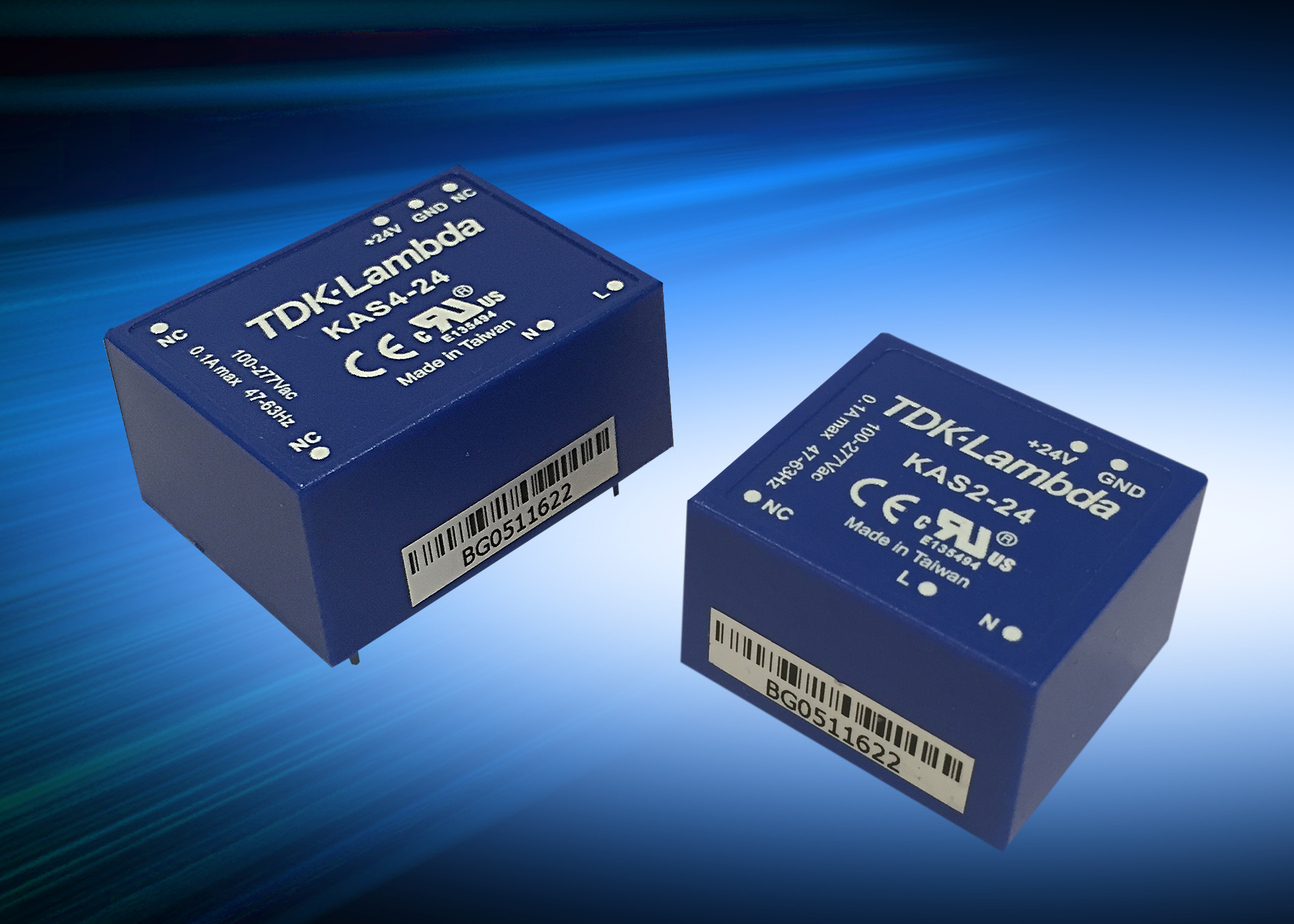

KAS 2-4W Wide AC-DC Input PCB-Mount Power Supplies




Giriş çalışma 90-305VAC 47-63Hz or 120-430VDC (KAS2)
Giriş çalışma 90-305VAC 47-440Hz or 120-430VDC (KAS4)
Wide Temperature Range (-40 to +80°C)
Low off-load Power Consumption
Easy Rapid On-Board Integration
2W ve 4W çıkış gücü
3.3, 5, 8, 9, 12, 14, 15, 24VDC çıkış gerilim seçenekleri
MTBF (MIL-HDBK-217F) >450,000 hours
Class II (No ground needed)
Overcurrent Protection, Overvoltage Protection
Uygulama Alanları


Açıklama
Designed to meet the household requirements of 60335-1 the KAS series with its wide operating temperature range up to 80°C,  and start-up temperature of -40°C,  is suitable for both domestic and industrial applications.  The encapsulated board mounted power supplies  do not need a ground connection and are available in 2W or 4W power levels. The KAS series provide an off-load power consumption less than 0.3W and Class B EMC performance.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Datasheet
KAS2-3P3
2W
3.3V
0.6A
Enclosed pcb mount
KAS2-5
2W
5.0V
0.4A
Enclosed pcb mount
KAS2-9
2W
9.0V
0.22A
Enclosed pcb mount
KAS2-12
2W
12.0V
0.167A
Enclosed pcb mount
KAS2-15
2W
15.0V
0.133A
Enclosed pcb mount
KAS2-24
2W
24.0V
0.083A
Enclosed pcb mount
KAS4-3P3
4W
3.3V
1,2A
Enclosed pcb mount
KAS4-5
4W
5.0V
0.8A
Enclosed pcb mount
KAS4-8
4W
8.0V
0.5A
Enclosed pcb mount
KAS4-9
4W
12.0V
0.444A
Enclosed pcb mount
KAS4-12
4W
12.0V
0.333A
Enclosed pcb mount
KAS4-14
4W
14.0V
0.286A
Enclosed pcb mount
KAS4-15
4W
15.0V
0.267A
Enclosed pcb mount
KAS4-24
4W
24.0V
4.0A
Enclosed pcb mount
