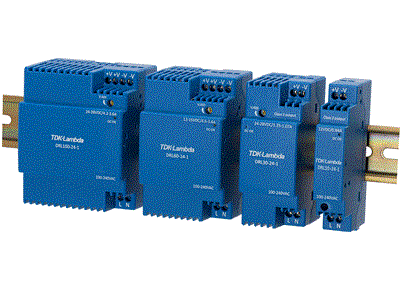

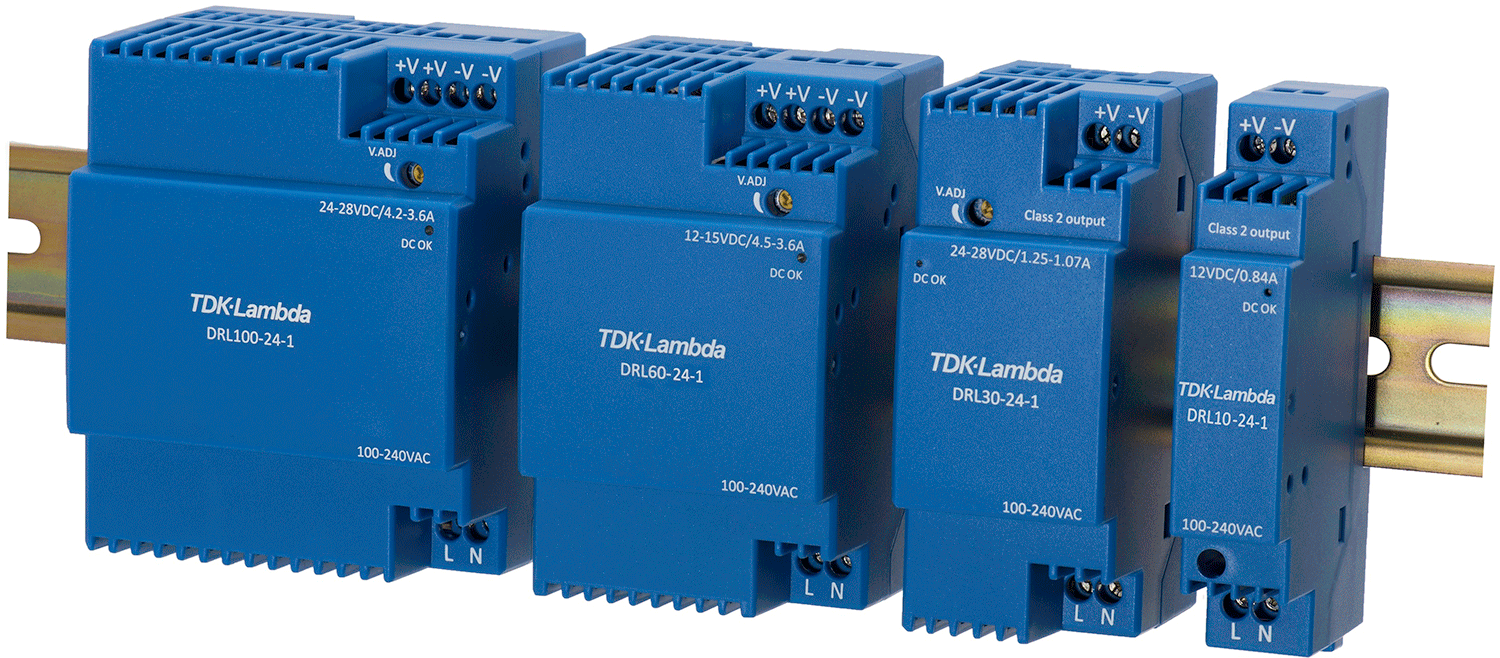

DRL Serisi 10-100W Low Profile DIN-Rail (Ray) Montaj AC-DC Güç Kaynakları |
| |
| |
|
|
| |
|
|
Class II, Wide Range Input 85 - 264VAC (Withstands 300VAC for 5 seconds) |
|
Power Factor Meets IEC61000-3-2 Class A |
|
10-30-60-100W güçlerinde |
|
12V ve 24V çıkış gerilimi |
|
Sadece 56mm derinliğinde |
|
High Efficiency, up to 90% @ 230VAC |
|
Low Profile for Building Automation |
|
UL1310 Class 2 Compliant |
|
Low No Load Consumption |
|
Long E-Cap-Life (>8 years @ 40°C, 75% Load, 230VAC) |
|
Global Application, No Earth Required |
|
Energy Saving - Improved Thermal Performance |
|
Overcurrent Protection >105% Hiccup with auto recovery |
|
Case Material Flame Retardant Polycarbonate (UL94 V-0) |
|
 |
|
|
| |
|
Açıklama |
The low profile DRL DIN rail power supply series provide a reliable solution for many industrial applications and building automation. With double insulation and safety Class II input, connection to earth is not required. The NEC Class 2 compliant output, in accordance with UL 1310, allows operation where output currents are to be limited under fault conditions. Available in four power ranges, the DRL series provide a choice of 12 and 24 output voltages |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
| |
Aksesuarlar |
|
| |
|
| |
|
|
Ürün Listesi |
Model Adı |
Çıkış Gücü |
Çıkış Gerilimi
|
Gerilim Ayar Aralığı |
Çıkış Akımı |
Construction |
Datasheet |
|
DRL10-12-1 |
10.08W |
12V
|
None
|
0.84A |
DIN-Rail Montaj |
|
DRL10-24-1 |
10.0W |
24V |
None |
0,42A |
DIN-Rail Montaj |
|
DRL30-12-1 |
25,2W |
12V |
12-15V |
2.1A |
DIN-Rail Montaj |
|
DRL30-15-1 |
25,2W |
15V |
12-15V |
1,68A |
DIN-Rail Montaj |
|
DRL30-24-1 |
30,0W |
24V |
24-28V |
1,3A |
DIN-Rail Montaj |
|
DRL60-12-1 |
54,0W |
12V |
12-15V |
4.5A |
DIN-Rail Montaj |
|
DRL60-15-1 |
54,0W |
15V |
12-15V |
3,6A |
DIN-Rail Montaj |
|
DRL60-24-1 |
60,0W |
24V |
24-28V |
2,5A |
DIN-Rail Montaj |
|
DRL100-24-1 |
100,8W |
24V |
24-28V |
4,2A |
DIN-Rail Montaj |
|
DRL100-24-1/C2 |
88,0W |
24V |
None |
3.67A |
DIN-Rail Montaj |
|
|
|
|
|
| |
|
| |
|
|
