VMM Serisi 25-30W Medikal Wall Mount External AC-DC Güç Kaynağı




Giriş çalışma 80 - 264VAC (47 - 63Hz)
25-30W çıkış gücü
5V, 9V, 12V, 15V, 18V ve 24VDC çıkış gerilimi
ErP, CEC and EISA Compliant Models
Medical Safety Certifications and Immunity
4kV (2xMOPP) Input to Output Isolation
Class II AC Input
Alternative Connectors and Cable Lengths Available
Meets DoE Level VI and EU Tier 2 Effi ciency, <0.075W Off-load Power Consumption
Suitable for Medical, Clinical and Home Healthcare Use
No Earth Ground Connection Needed
Fully Isolated For Use With B and BF Rated Equipment
Overcurrent Protection 120- 140%, hiccup mode with auto recovery
Overvoltage Protection Latching, cycle AC input to reset
Operating Temperature -25 to 70, derate linearly from 100% to 50% load from 40 to 70
Uygulama Alanları


Açıklama

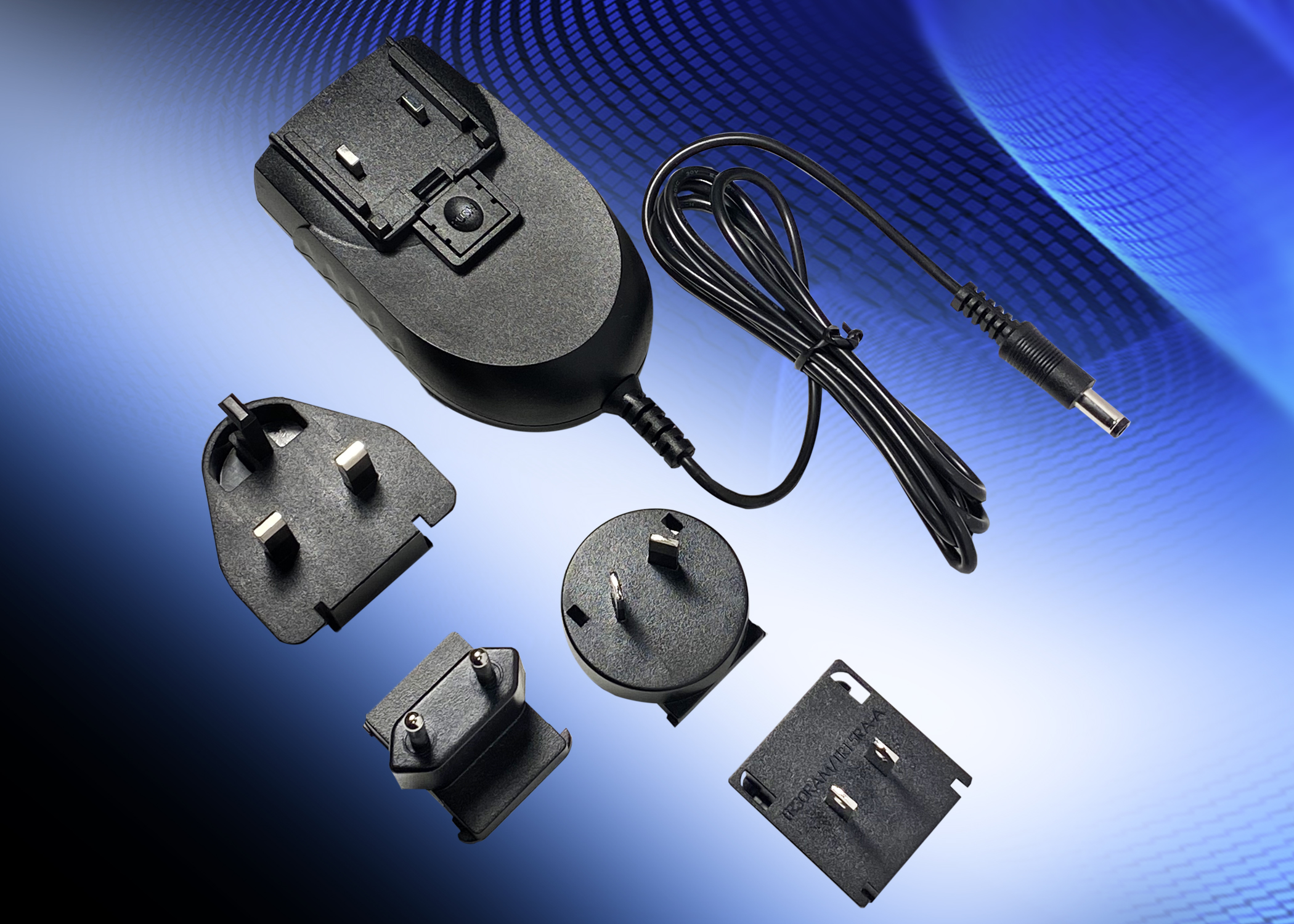

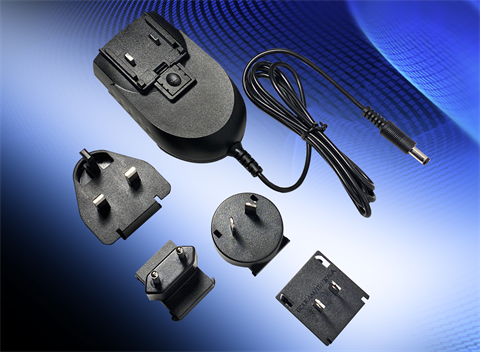

The WMM medical Wall Mount power supplies are housed in a rugged plastic case and are rated from 25 to 30W with output voltages from 5V to 24V.

With off-load power draws as low as 75mW and high average efficiencies, the units are compliant to ErP Directives and the DoE VI standards, have Class II AC input (no ground wire) and are suitable for clinical and home healthcare applications.


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Datasheet
WMM30CN050
25W
5V
5A
Enclosed Plug in
WMM30CN090
27,7W
9V
3,3A
Enclosed Plug in
WMM30CN120
30W
12V
2,5A
Enclosed Plug in
WMM30CN150
30W
15V
2A
Enclosed Plug in
WMM30CN180
30W
18V
1.67A
Enclosed Plug in
WMM30CN240
30W
24V
1,25A
Enclosed Plug in
