CUT 35-75 Low Profile Dual veya Triple Output 35-75W AC-DC Güç Kaynağı




Giriş çalışma gerilimi CUT-35; 85-265VAC, 47-63Hz, 88-370VDC (No safety certification)
Giriş çalışma gerilimi CUT-75; 85-265VAC, 47-63Hz, 120-370VDC (No safety certification)
Compact 2 x 4 x 1.06” Footprint CUT-35
Compact format (3 x 5” footprint only) CUT-75
Output 1 isolated from outputs 2&3 Cover&baseplate options
Triple (useable as dual) output supply
Convection Cooled
Class B Conducted & Radiated EMI
Low Profile (1.06”)
High Efficiency 85%
Enhanced output regulation
Several mechanical & connector options
Good cost-value relation
Operating Temperature -20 to +70°C. Derate linearly to 60% load from +50 to +70°C

Uygulama Alanları


Açıklama

"The triple output CUT35 and CUT75 power supplies have two independent, isolated, converters, one for the main 5V output, and one for the auxiliary outputs. This topology provides several benefits - no minimum loading, enhanced load & line regulation and the ability to connect the auxiliary outputs in series to generate either a 24V or 30V output. This flexibility makes it suitable for use in a wide range of process control, broadcast, test & measurement, medical and industrial equipment applications."

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler
CUT-35 Datasheet
CUT-35 Installation Manual

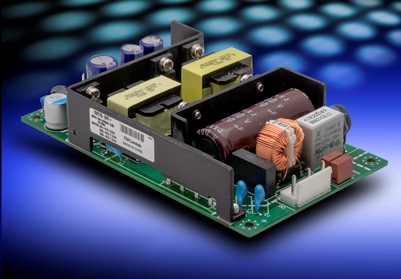

Ürün resmi
ZWD100-225 Serisi 2 çıkışlı 100-225W




Ürün Listesi CUT-35
Model Adı
Çıkış Gerilimi
Gerilim Ayar Aralığı
Max. Çıkış Akımı
Max. Çıkış Gücü
Construction
Datasheet
CUT35-522
V1
5V
5 - 5.25V
3.0A
15.0W
Open Frame
V2
+12V
Fixed
1.2A
20.4W
V3
-12V
Fixed
0.85A
20.4W
CUT35-522
V1
5V
5 - 5.25V
3.0A
15.0W
Open Frame
V2
24V
Fixed
0.85A
20.4W
(Leave common terminal unconnected)
CUT35-5FF
V1
5V
5 - 5.25V
3.0A
15.0W
Open Frame
V2
+15V
Fixed
1.0A
19.5W
V3
-15V
Fixed
0.65A
19.5W
CUT35-5FF
V1
5V
5 - 5.25V
3.0A
15.0W
Open Frame
V2
30V
Fixed
0.65A
19.5W
(Leave common terminal unconnected)
Note: CUT35 can be configured as a dual or single output

Opsiyonlar CUT-35
Suffix
Description
Blank
Open frame with JST connectors
/A
Cover with JST connectors
/B
Baseplate with JST connectors

Ürün Listesi CUT-75
Model Adı
Çıkış Gerilimi
Gerilim Ayar Aralığı
Max. Çıkış Akımı
Max. Çıkış Gücü
Construction
Datasheet
CUT75-522
V1
5V
5 - 5.25V
8.0A
40.0W
Open Frame
V2
+12V
Fixed
3.0A
36.4W
V3
-12V
Fixed
1.0A
-
CUT75-522
V1
5V
5 - 5.25V
8.0A
40.0W
Open Frame
V2
24V
Fixed
1.0A
24.4W
(Leave common terminal unconnected)
CUT75-5FF
V1
5V
5 - 5.25V
8.0A
40.0W
Open Frame
V2
+15V
Fixed
2.5A
37.5W
V3
-15V
Fixed
1.0A
-
CUT75-5FF
V1
5V
5 - 5.25V
8.0A
40.0W
Open Frame
V2
30V
Fixed
1.0A
30.0W
(Leave common terminal unconnected)
Note: CUT75 can be configured as a dual or single output

Opsiyonlar CUT-75
Suffix
Description
Blank
Open frame with PIN (JST) connectors**
/A
Cover with PIN (JST) connectors**
/B
Baseplate with PIN (JST) connectors
/T
Open frame with Terminal Block (screw connections)
/TA
Cover model with Terminal Block (screw connections)
/TB
Baseplate model Terminal Block (screw connections)
** Preferred Models
