Wide Range Input (85 - 265Vac Continuous) |
|
Active Power Factor Correction (0.99 typical) |
|

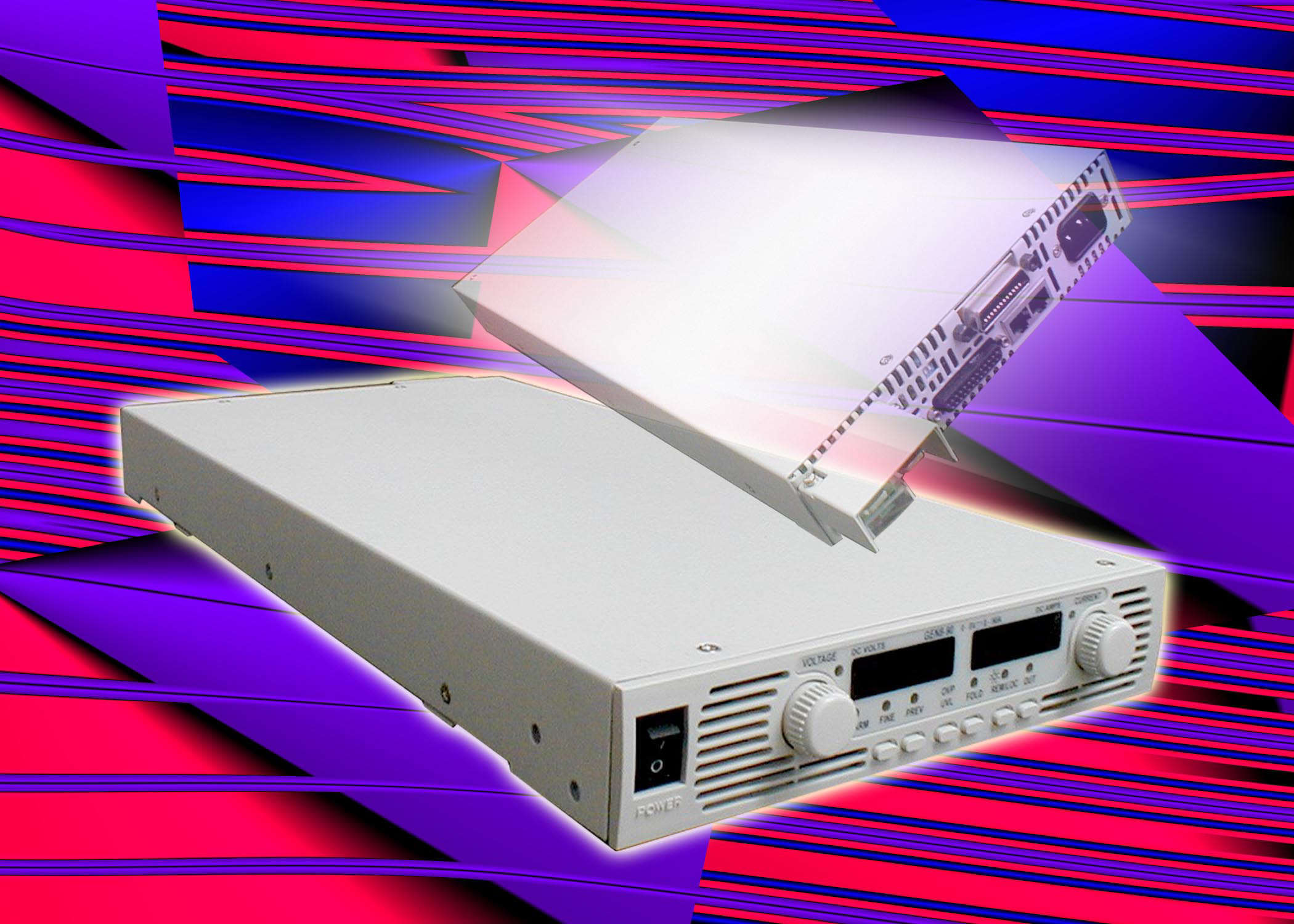

High Power Density available: 750W in 1U half-rack size |
|
Output Voltage up to 600V, Current up to 100A |
|
Built-in RS-232/RS-485 Interface |
|
Front Panel Lockout |
|
Last-Setting Memory |
|
High Resolution 16 bit ADCs & DACs |
|
Reliable Encoders for Voltage and Current Adjustment |
|
Constant Voltage/Constant Current auto-crossover |
|
Advanced Parallel reports total current up to four identical units |
|
Global Commands for Serial RS-232/RS-485 Interface |
|
Independent Remote ON/OFF and Remote Enable/Disable |
|
Compact and lightweight package which allows easy installation and space saving in the application equipment. |
|
High density stacking - no ventilation holes on the top and bottom surface of the power supply |
|
External Analog Programming and Monitoring |
|
Reliable Modular and SMT Design |
|
19" Rack Mounted ATE benchtop and OEM applications |
|
Side-by-side mounting of two units in a 19” rack |
|
|
| |
- |
Isolated Analog Programming and Monitoring, Interface (0-5V/0-10V & 4-20mA), |
| |
|
| |
- |
IEEE 488.2 SCPI (GPIB) Multi-Drop, |
| |
- |
LXI Compliant LAN |
|
Worldwide Safety Agency Approvals; CE marked for LVD, emc and RoHS compliance |
ClassC)
