Tek çıkışlı 5-25W PCB (Kart) Montaj AC-DC Güç Kaynağı |
|
|
 |
|
|
|
Giriş çalışma 85-264VAC (47-440Hz) |
|
5W, 10W, 15W ve 25W çıkış güçlerinde |
|
5V, 12V, 15V ve 24VDC çıkışlı |
|
Protection Class II, No Ground Connection |
|
Small footprint without the need for external components |
|
Long Electrolytic Capacitor Lifetime |
|
|
No load power consumption less than 0.5W |
|
|
Improved efficiencies up to 88% |
|
|
Wide Temperature Range -40°C (start up) to +85°C |
|
|
| |

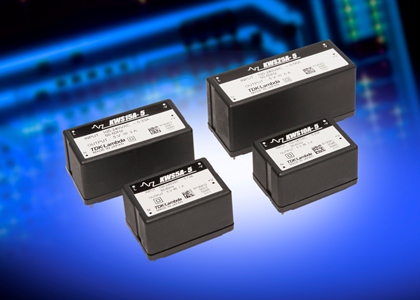

| Featuring a wide operating temperature range of up to 85°C and start-up temperatures of -40°C, the second generation KWS-A series is ideal for harsh industrial applications. The encapsulated board mounted power supplies do not need a ground connection and are available in four power levels - 5W, 10W, 15W and 25W. Efficiencies are as high as 88% and off-load power consumption is less than 0.5W. |
| |
|
| |
Teknik Broşür, Manuel ve Dosyalar |
Benzer Ürünler |
|
|
|
| |
| |
| |
Ürün Listesi |
Model |
Çıkış Gücü |
Çıkış V/A |
Construction |
Datasheet |
KWS5A-5 |
5W |
5V / 1A |
Enclosed pcb mount |
|
KWS5A-12 |
5.4W |
12V / 0.45A |
Enclosed pcb mount |
|
KWS5A-15 |
5.3W |
15V / 0.35A |
Enclosed pcb mount |
|
KWS5A-24 |
5.3W |
24V / 0.22A |
Enclosed pcb mount |
|
KWS10A-5 |
10W |
5V / 2A |
Enclosed pcb mount |
|
KWS10A-12 |
10.8W |
|
Enclosed pcb mount |
|
KWS10A-15 |
10.5W |
15V / 0.7A |
Enclosed pcb mount |
|
KWS10A-24 |
12.W |
24V / 0.5A |
Enclosed pcb mount |
|
KWS15A-5 |
15W |
5V / 3A |
Enclosed pcb mount |
|
KWS15A-12 |
15W |
12V / 1.3A |
Enclosed pcb mount |
|
KWS15A-15 |
15W |
15V / 1A |
Enclosed pcb mount |
|
KWS15A-24 |
16.8W |
24V / 0.7A |
Enclosed pcb mount |
|
KWS25A-5 |
25W |
5V / 5A |
Enclosed pcb mount |
|
KWS25A-12 |
26.4W |
12V / 2.2A |
Enclosed pcb mount |
|
KWS25A-15 |
25.5W |
15V / 1.7A |
Enclosed pcb mount |
|
KWS25A-24 |
26.4W |
24V / 1.1A |
Enclosed pcb mount |
|
|
| |
| |
