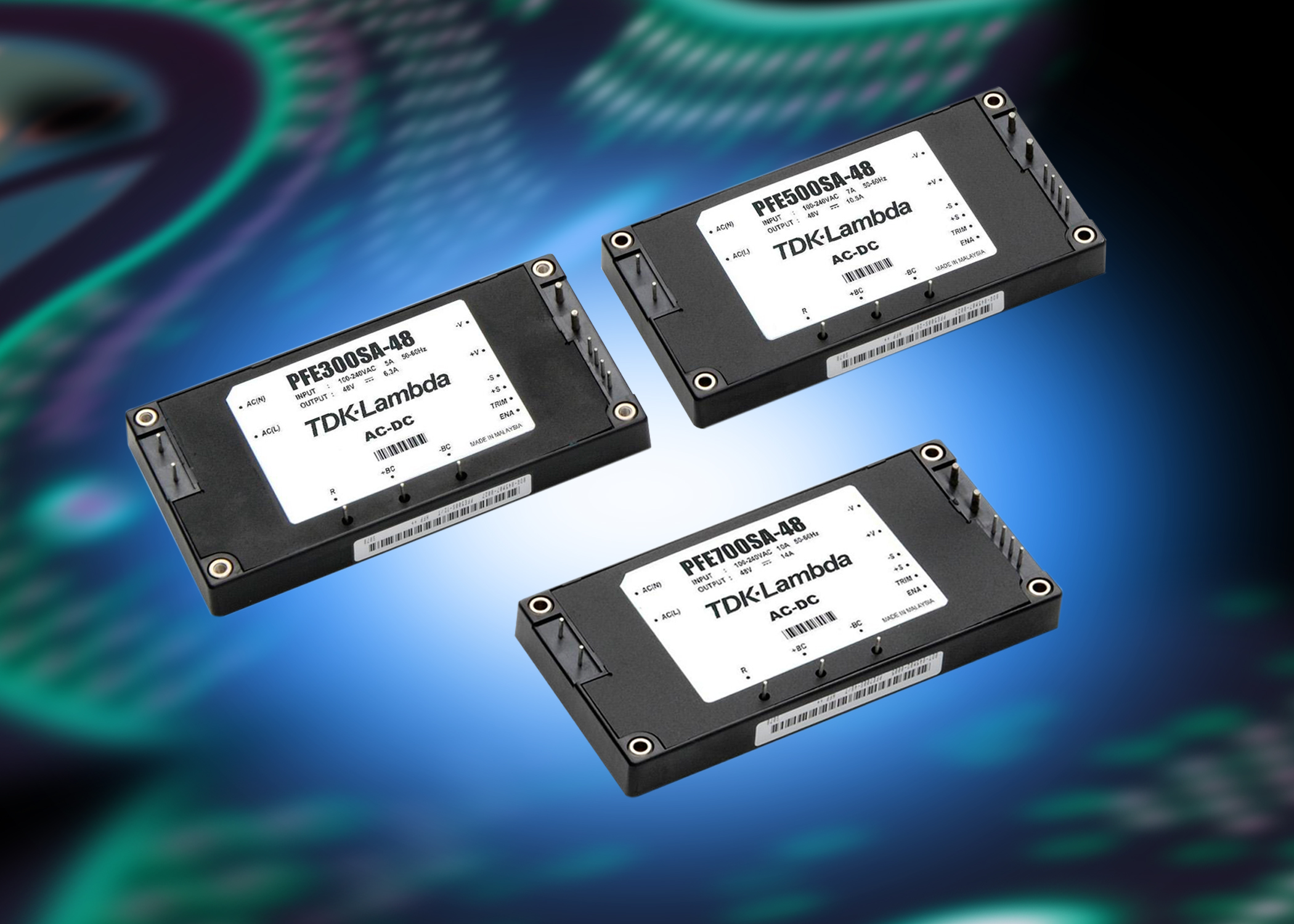

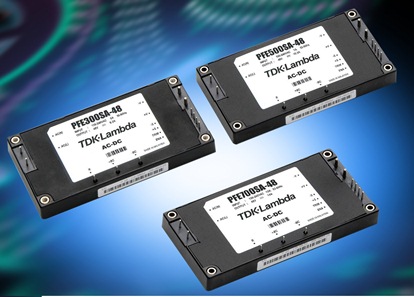

PFE Serisi

300-1000W Modül AC-DC Güç Kaynağı


Genel Özellikler :
Giriş çalışma 85-265VAC 47-63Hz (Up to 440Hz)
12V, 24-28W, 48V ve 51VDC çıkış gerilimi
300W, 500W, 700W ve 1000W çıkış güçlerinde
Power Factor Corrected
Low profile, small size
High Efficiency
High power density
Çalışma sıcaklığı 100°C baseplate



For designers of equipment used in environments where fan cooling is not viable, the PFE power modules offer the obvious solution. Suitable for outdoor enclosures or liquid cooled applications, these baseplate mounted power modules accept a wide range AC input and deliver isolated, regulated voltages with power levels from 300 to 1000W. High ambient temperatures can be easily tolerated as the units can be operated with baseplate temperatures of up to 100oC.

Uygulama Alanları


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler



Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Construction
Datasheet
PFE300SA-12
300W
12V / 25A
Brick
PFE500SA-12
396W
12V / 33A
Brick
PFE500F-12
504W
12V / 42A
Brick
PFE1000F-12
720W
12V / 60A
Brick
PFE1000FA-12
720W
12V / 60A
Brick
PFE300SA-28
302W
28V / 10.8A
Brick
PFE500F-28
504W
28V / 18A
Brick
PFE500SA-28
504W
28V / 18A
Brick
PFE1000F-28
1008W
28V / 36A
Brick
PFE1000FA-28
1008W
28V / 36A
Brick
PFE300SA-48
302W
48V / 6.3A
Brick
PFE500F-48
504W
48V / 10.5A
Brick
PFE500SA-48
504W
48V / 10.5A
Brick
PFE1000F-48
1008W
48V / 21A
Brick
PFE1000FA-48
1008W
48V / 21A
Brick
PFE700SA-48
714W
51V / 14A
Brick
