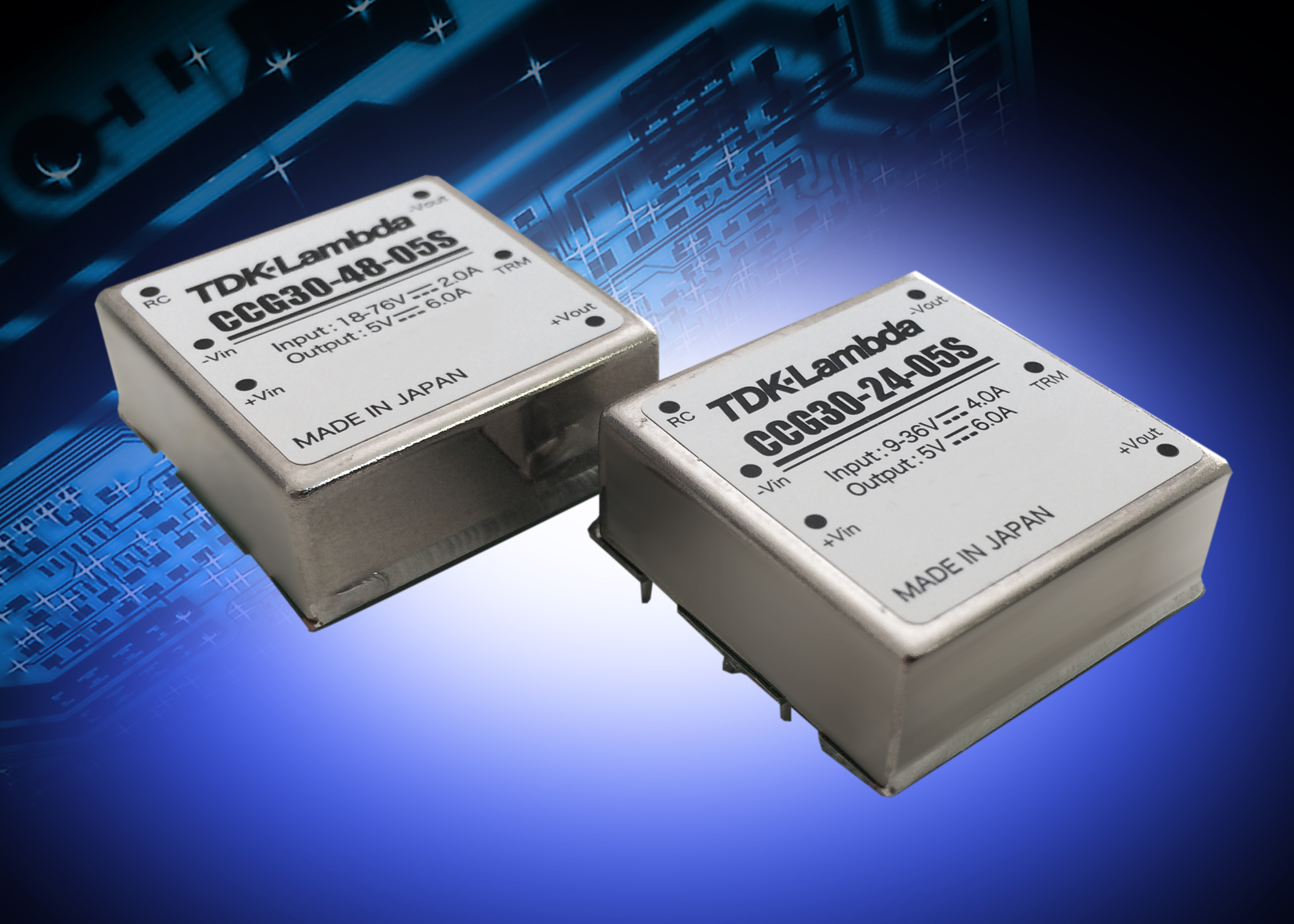

CCG Serisi 15W-30W Single & Dual Çıkışlı DC-DC Konvertör



Industry Standard 1” x 1” Footprint
Wide Range DC Input 9 - 36 or 18 - 76V
High Efficiency - Up to 92%
Six Sided Shielding
Adjustable output (single output only)
Remote on/off
Fits in place of 2 x 1” converters
Easier System Thermal Management
Operating Temperature -40°C to +110°C Case, -40°C to +85°C Ambient
Cooling Convection or forced air





Uygulama Alanları


Açıklama
Packaged in the industry standard 1 x 1 inch footprint, the 15 - 30W CCG series can operate over a wide 9 to 36V or 18 to 76Vdc input range. The units are enclosed in a metal case with 6-sided shielding for lower noise and encapsulated for rugged shock and vibration performance.

Available with output voltages of 3.3, 5, 12, +/-12, 15, +/-15Vdc, 24 or 30V, these high efficiency converters (up to 91%) will operate in ambient temperatures of -40°C to +85°C.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi Tek (Single) Çıkış
Model Adı
Giriş Gerilimi
Çıkış Gerilim/Akım
Çıkış Gücü
Construction
Datasheet
CCG15-24-03S
9 - 36V
3.3V / 4A
13.2
Enclosed pcb mount
CCG15-48-03S
18 - 76V
3.3V / 4A
13.2
Enclosed pcb mount
CCG30-24-03S
9 - 36V
3.3V / 7A
23.1
Enclosed pcb mount
CCG30-48-03S
18 - 76V
3.3V / 7A
23.1
Enclosed pcb mount
CCG15-24-05S
9 - 36V
5V / 3A
15
Enclosed pcb mount
CCG15-48-05S
18 - 76V
5V / 3A
15
Enclosed pcb mount
CCG30-24-05S
9 - 36V
5V / 6A
30
Enclosed pcb mount
CCG30-48-05S
18 - 76V
5V / 6A
30
Enclosed pcb mount
CCG15-24-12S
9 - 36V
12V / 1.3A
15.6
Enclosed pcb mount
CCG15-48-12S
18 - 76V
12V / 1.3A
15.6
Enclosed pcb mount
CCG30-24-12S
9 - 36V
12V / 2.5A
30
Enclosed pcb mount
CCG30-48-12S
18 - 76V
12V / 2.5A
30
Enclosed pcb mount
CCG15-24-15S
9 - 36V
15V / 1A
15
Enclosed pcb mount
CCG15-48-15S
18 - 76V
15V / 1A
15
Enclosed pcb mount
CCG30-24-15S
9 - 36V
15V / 2A
30
Enclosed pcb mount
CCG30-48-15S
18 - 76V
15V / 2A
30
Enclosed pcb mount
CCG15-24-12D
9 - 36V
24V / 0.65A
15.6
Enclosed pcb mount
CCG15-48-12D
18 - 76V
24V / 0.65A
15.6
Enclosed pcb mount
CCG30-24-12D
9 - 36V
24V / 1.25A
30
Enclosed pcb mount
CCG30-48-12D
18 - 76V
24V / 1.25A
30
Enclosed pcb mount
CCG15-24-15D
9 - 36V
30V / 0.5A
15
Enclosed pcb mount
CCG15-48-15D
18 - 76V
30V / 0.5A
15
Enclosed pcb mount
CCG30-24-15D
9 - 36V
30V / 1A
30
Enclosed pcb mount
CCG30-48-15D
18 - 76V
30V / 1A
30
Enclosed pcb mount


Ürün Listei Çift (Dual) Çıkış
Model Adı
Giriş Gerilimi
Çıkış Gerilim/Akım
Çıkış Gücü
Construction
Datasheet
CCG15-24-15D
9 - 36V
15V / 0.5A
-15V / 0.5A
15
Enclosed pcb mount
CCG15-48-15D
18 - 76V
15V / 0.5A
-15V / 0.5A
15
Enclosed pcb mount
CCG30-24-15D
9 - 36V
15V / 1A
-15V / 1A
30
Enclosed pcb mount
CCG30-48-15D
18 - 76V
15V / 1A
-15V / 1A
30
Enclosed pcb mount
CCG15-24-12D
9 - 36V
12V / 0.65A
-12V / 0.65A
15.6
Enclosed pcb mount
CCG15-48-12D
18 - 76V
12V / 0.65A
-12V / 0.65A
15.6
Enclosed pcb mount
CCG30-24-12D
9 - 36V
12V / 1.25A
-12V / 1.25A
30
Enclosed pcb mount
CCG30-48-12D
18 - 76V
12V / 1.25A
-12V / 1.25A
30
Enclosed pcb mount
