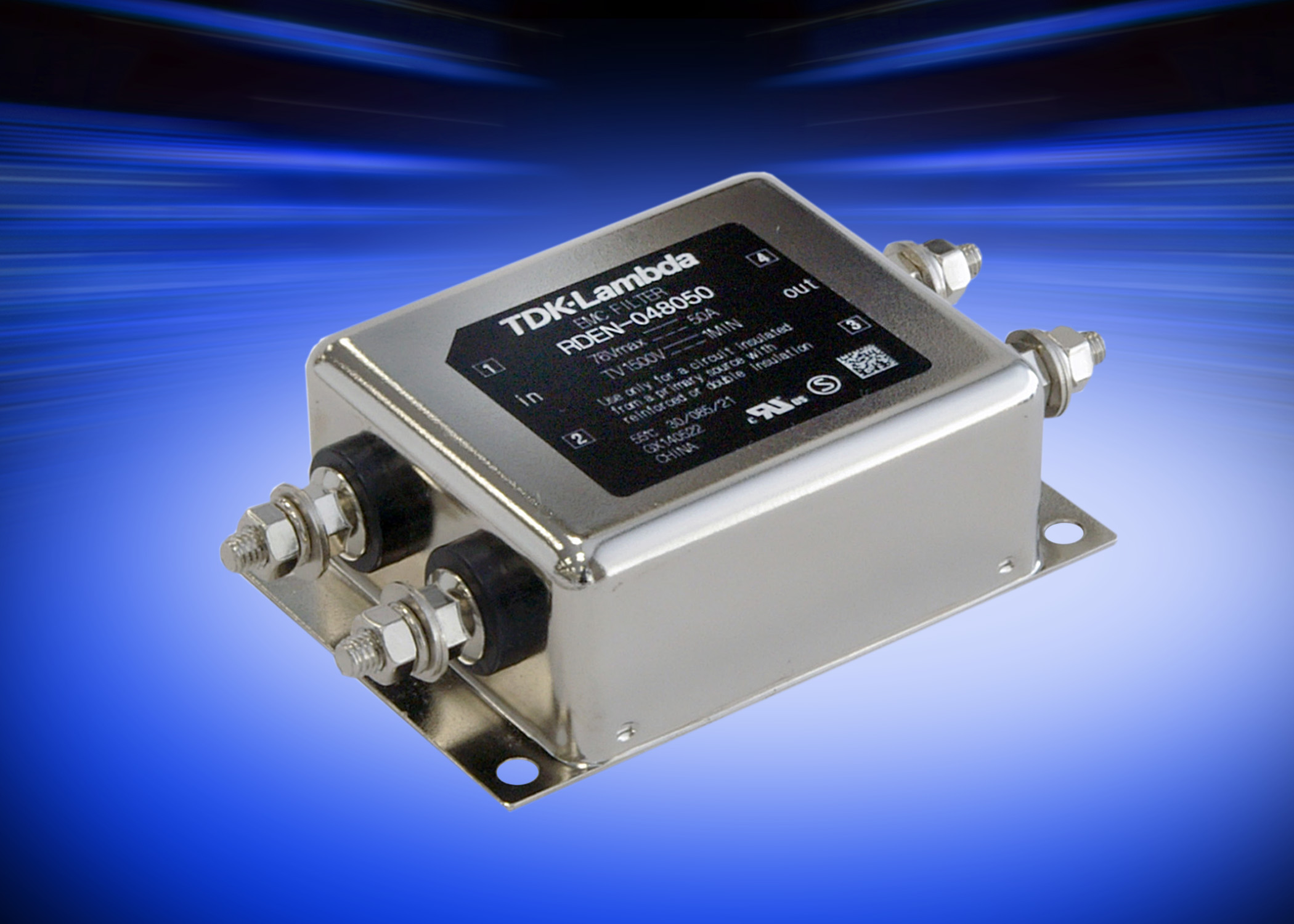

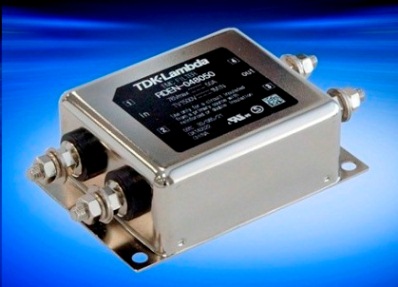

RDEN Serisi 50A 48VDC (76V Max) EMI Filtreler




Gerilim 48VDC (76VDC max.)
Rated Current 50A
Operating Temperature--30 to 85°C
Metallic case, Stud terminals
Replace the MBS48 series
Conform to EN, UL, CSA, RoHS
Small size (L x l x H) 70 x 60 x 30 mm







Uygulama Alanları


Açıklama
RDEN 48Vdc nominal EMC filter is rated at 50A and is enclosed in a compact metal case, with stud terminals for ease of connection.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Gerilim
Akım
Şase Mount
Datasheet
RDEN-048050
48VDC (76A max)
50A
X


Teknik Specifications
Rated Voltage
VDC
48VDC (76VDC Max)
Rated Current
A
50A
Withstand Voltage
VDC
Terminals to Case: 1500VDC 60s
Isolation Resistance
M?
500M? minimum at 500VDC for 1 minute
Leakage Current
mA
Not Applicable
DC Resistance
m?
3
Operating Temperature
°C
-30 to +85 (see derating curve)
Storage Temperature
°C
-30 to +85
Safety Agency Certifi cation
-
UL/CSA60950-1, EN60939
Weight (Typ)
gr
310
Dimensions
mm
(L x l x H) 70 x 60 x 30 mm
