CUS-30M&CUS-60M Serisi Single Output 30 - 60W Medical & ITE AC-DC Güç Kaynağı




Giriş çalışma gerilimi 85 - 266VAC (47 - 63Hz)
Power Factor Meets EN61000-3-2
Off-load Power Draw <0.3W at 265VAC (30W), <0.5W at 265VAC (60W)
Overcurrent Protection >105% of rated current, Class 2 Limited Power Source
Overvoltage Protection > 115% of nominal output (30W), > 120% of nominal output (60W)
30W ve 60W çıkış güçlerinde
Çıkış gerilimleri: 12V, 15V, 18V, 24V ve 48V
Short Circuit Protection 110 - 190%. Hiccup mode, automatic recovery
Medical Approval with 2 x MoPP Isolation
Suitable for Class I and II Installations
High Efficiency, up to 90%
Compact 2” x 3” Footprint
Convection Cooled
• Easier Thermal Management
Uygulama Alanları


Açıklama

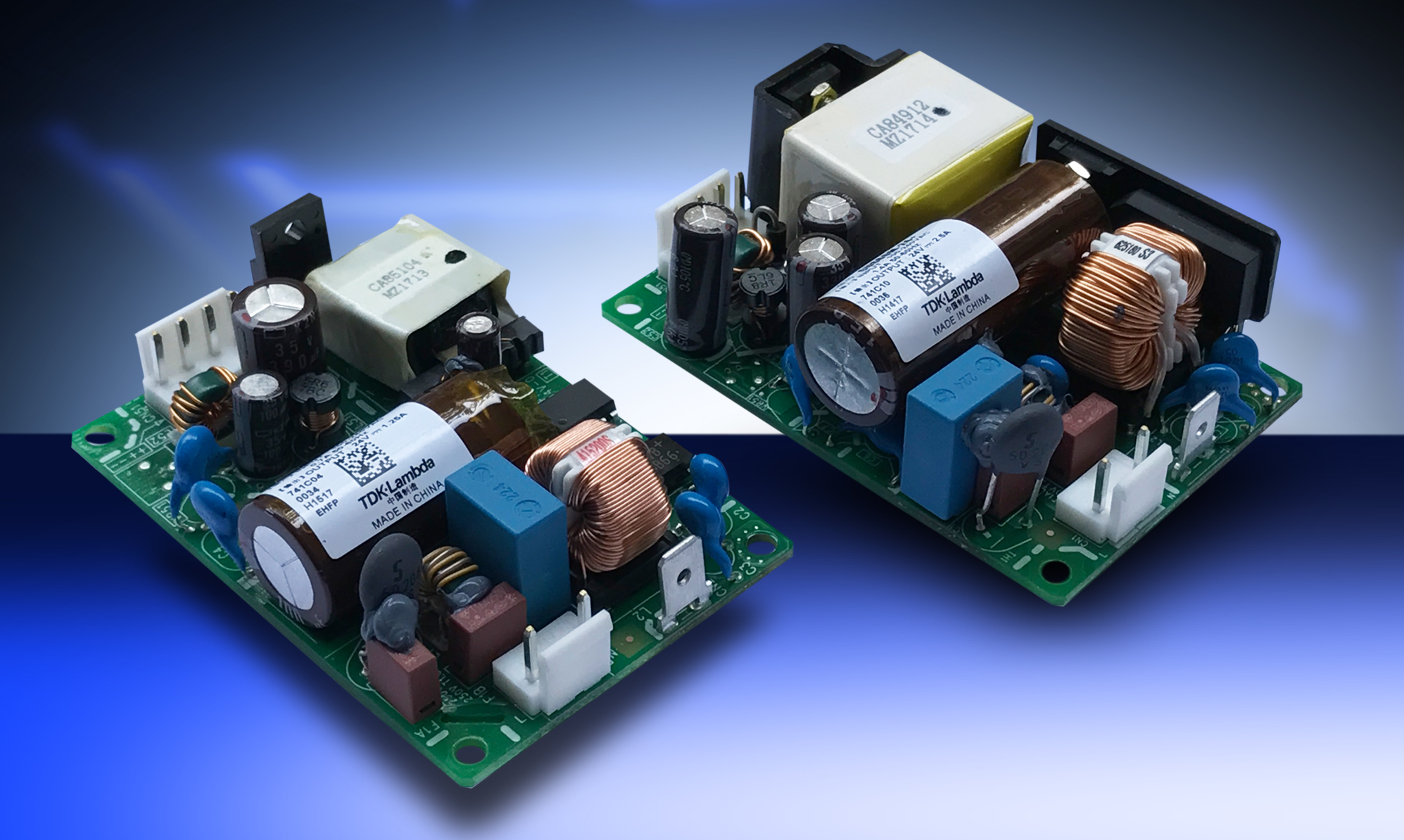

CUS30M and CUS60M are single output 2” x 3” footprint AC/DC power supplies with outputs ranging from 5V to 48V and have IEC60601-1 3rd edition medical approval as well as IEC60950-1 and are compliant with EN60601-1-2:2015 Edition 4 immunity requirements.

Rated at 30W and 60W, these compact products meet class B conducted and radiated EMI in either a Class I or Class II (double insulated) construction, without the need for external filtering.

This flexibility allows the CUS30/60M to be used in a wide range of applications, including home healthcare, medical, dental, test and measurement, broadcast and industrial equipment.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler
CUS30M Installation Manual
CUS60M Installation Manual



Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Gerilimi
Gerilim Ayar Aralığı
Çıkış Akımı
Construction
Datasheet
CUS30M-12
30W
12V
Option
2.5A
Open Frame
CUS30M-24
35W
24V
Option
1.25A
Open Frame
CUS30M-48
30.24W
48V
Option
0.63A
Open Frame
CUS60M-5
30W
5V
Option
6.0A
Open Frame
CUS60M-12
60W
12V
Option
5.0A
Open Frame
CUS60M-15
60W
15V
Option
4.0A
Open Frame
CUS60M-24
60W
24V
Option
2.5A
Open Frame
CUS60M-48
60W
48V
Option
1.25A
Open Frame
