EFE-M Serisi 300W-400W Medikal Digital AC-DC Güç Kaynağı




Giriş çalışma gerilimi 90-264Vac, 45 - 63Hz (440Hz with reduced PFC - consult sales office)
Designed for Medical Equipment
High Efficiency
Full Digital Control
EFE300-M: 6 in x 3 in footprint
Fits 1U applications
EFE400-M: 6.5 x 3.5in footprint
High Power Density (up to 22W/in³)
No Minimum Load
Fits 1U applications
EFE300-M: 400W peak power for 10 seconds
EFE400-M: 530W peak power for 10 seconds
Temperature controlled fan option
Reinforced isolation
Uygulama Alanları


Açıklama

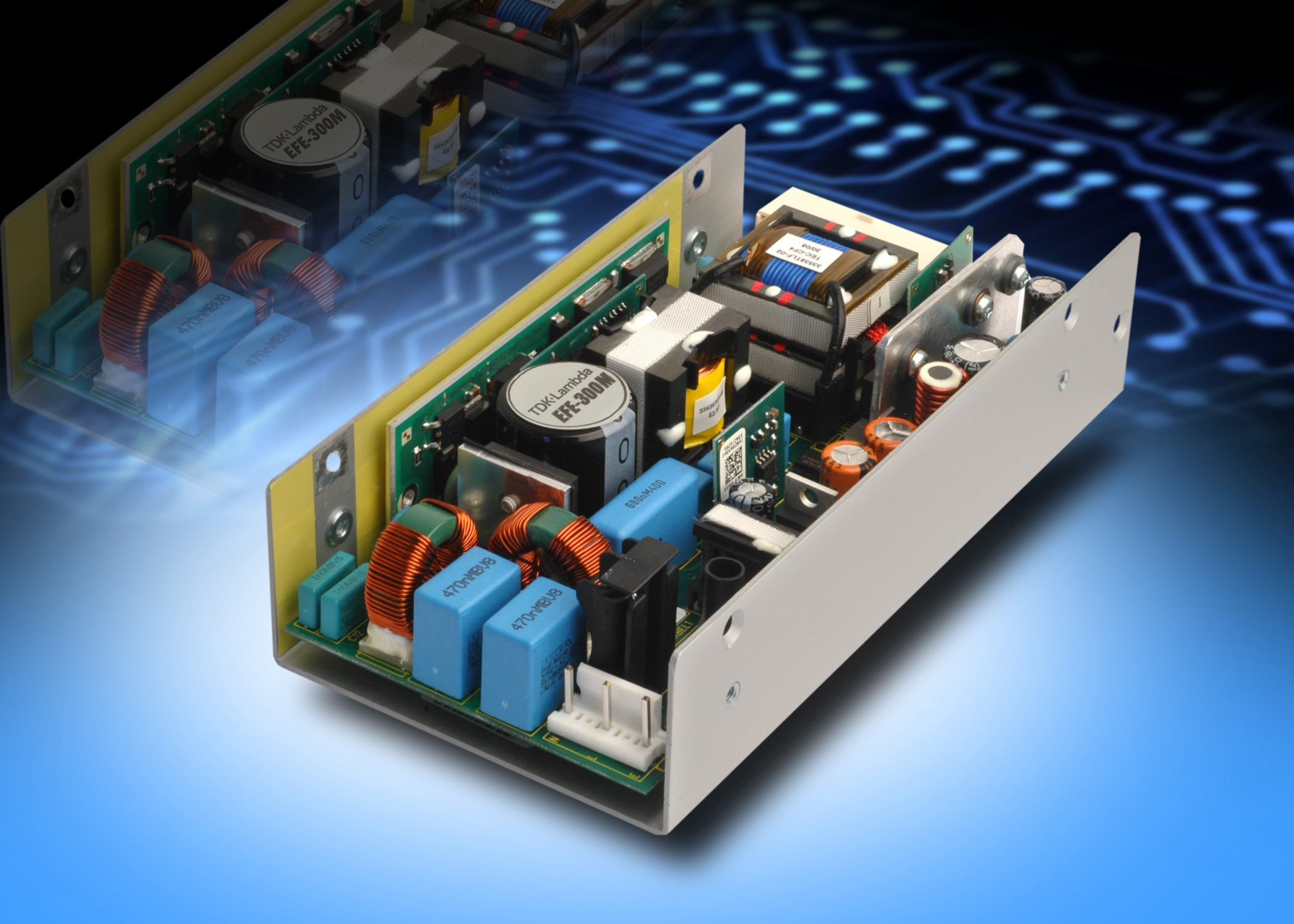

The EFE-M series of embedded power supplies extends the EFE series with medical certifications to the IEC 60601-1 standard. Rated at 300 and 400W with an additional 33% peak power for 10 seconds, the products are available with output voltages from 12 to 54V. A wide range of options can be ordered; including a standby voltage, remote on/off and various case/fan options. Product warranty is 5 years.


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler




Ürün Listesi CUT-35
Model Adı
Çıkış Gerilimi
Gerilim Ayar Aralığı
Çıkış Akımı
Çıkış Gücü
Construction
Datasheet
EFE300M-12-5-HCMDL-YT
V1
12V
11.4 - 13.2V
25A
300W
Enclosed
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE300M-12-5-HNMDL-YT
V1
12V
11.4 - 13.2V
25A
300W
Open Frame pcb
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE300M-24-5-HCMDL-YT
V1
24V
22.8 - 26.4V
12.5A
300W
Enclosed
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE300M-24-5-HNMDL-YT
V1
24V
22.8 - 26.4V
12.5A
300W
Open Frame pcb
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE300M-48-5-HCMDL-YT
V1
48V
47 - 50V
6.25A
300W
Enclosed
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE300M-48-5-HNMDL-YT
V1
48V
47 - 50V
6.25A
300W
Open Frame pcb
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE400M-12-5-HCMDL-YT
V1
12V
11.4 - 13.2V
33.3A
400W
Enclosed
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE400M-12-5-HNMDL-YT
V1
12V
11.4 - 13.2V
33.3A
400W
Open Frame pcb
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE400M-24-5-HCMDL-YT
V1
24V
22.8 - 26.4V
16.7A
400W
Enclosed
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE400M-24-5-HNMDL-YT
V1
24V
22.8 - 26.4V
16.7A
400W
Open Frame pcb
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE400M-48-5-HCMDL-YT
V1
48V
47 - 50V
8.3A
300W
Enclosed
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE400M-48-5-HNMDL-YT
V1
48V
47 - 50V
8.3A
400W
Open Frame pcb
V2
5V
-
2A
V3
12V
11.4 - 13.2V
1A
EFE300M-12-5-ECMDL-YT
V1
12V
11.4 - 13.2V
25A
300W
Enclosed
V2
5V
-
2A
EFE300M-24-5-ECMDL-YT
V1
24V
22.8 - 26.4V
12.5A
300W
Enclosed
V2
5V
-
2A
EFE300M-48-5-ECMDL-YT
V1
48V
47 - 50V
6.2A
297.6W
Enclosed
V2
5V
-
2A
EFE400M-12-5-ECMDL-YT
V1
12V
11.4 - 13.2V
33.3A
400W
Enclosed
V2
5V
-
2A
EFE400M-24-5-ECMDL-YT
V1
24V
22.8 - 26.4V
16.7A
400W
Enclosed
V2
5V
-
2A
EFE400M-48-5-ECMDL-YT
V1
48V
47 - 50V
8.3A
400W
Enclosed
V2
5V
-
2A
