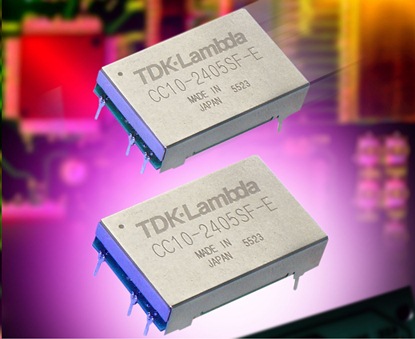

CC-E Serisi Ultra Compact, 1.5W to 25W Single and Dual DC-DC Konvertör |
| |
|
|
| |
|
|
Compact Footprint / Low Profile |
|
5V,12, V24V & 48VDC giriş gerilimi |
|
3,3V ile 30V Tekli, ±12V ile ±15 çıkış gerilimleri |
|
Çıkış gerilim ayarı |
|
Giriş - Çıkış izolasyonu |
|
RoHS Compliant |
|
Through Hole or SMT Versions |
|
Efficiency 71 to 90% model dependant |
|
No preload required |
|
Output current limiting with automatic recovery, shutdown CC15, 25 type |
|
Remote On/ Off |
|
Operating Temp.- Convection -40°C to +85°C, derates linearly to 40% load from +50°C to +85°C |
|
Operating Temp.- Forced Air -40°C to +85°C with 1m/s air full load |
|
Requires No External Components |
|
Lighter in Weight, Suitable for Surface Mount (R Version) |
|
 |
|
|
| |
|
Açıklama |
Consisting of 68 input voltage, output voltage and output power combinations, the CC-E series offers a wide choice of field proven products to suit a variety of applications. Backed by a five year warranty, the light weight converters have a metal case to reduce radiated EMI and are available in through hole or surface mount packages. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
|
Ürün Listesi Tek (Single) Çıkışlı |
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi / Akımı
|
Construction
|
|
CC1R5-0503SF-E |
1.32 |
4,5 - 9V |
3.3V / 0.4A |
Enclosed pcb mount |
|
CC1R5-1203SF-E |
1.32 |
9 - 18V |
3.3V / 0.4A
|
Enclosed pcb mount
|
|
CC1R5-2403SF-E |
1.32 |
18 - 36V |
3.3V / 0.4A
|
Enclosed pcb mount
|
|
CC1R5-4803SF-E |
1.32 |
36 - 76V |
3.3V / 0.4A
|
Enclosed pcb mount
|
|
CC3-0503SF-E |
2.64 |
4,5 - 9V |
3.3V / 0.8A
|
Enclosed pcb mount
|
|
CC3-1203SF-E |
2.64 |
9 - 18V |
3.3V / 0.8A
|
Enclosed pcb mount
|
|
CC3-2403SF-E |
2.64 |
18 - 36V |
3.3V / 0.8A
|
Enclosed pcb mount
|
|
CC3-4803SF-E |
2.64 |
36 - 76V |
3.3V / 0.8A
|
Enclosed pcb mount
|
|
CC6-0503SF-E |
3.96 |
4,5 - 9V |
3.3V / 1.2A
|
Enclosed pcb mount
|
|
CC6-1203SF-E |
3.96 |
9 - 18V |
3.3V / 1.2A
|
Enclosed pcb mount
|
|
CC6-2403SF-E |
3.96 |
18 - 36V |
3.3V / 1.2A
|
Enclosed pcb mount
|
|
CC6-4803SF-E |
3.96 |
36 - 76V |
3.3V / 1.2A
|
Enclosed pcb mount
|
|
CC10-0503SF-E |
8.25 |
4,5 - 9V |
3.3V / 2.5A
|
Enclosed pcb mount
|
|
CC10-1203SF-E |
8.25 |
9 - 18V |
3.3V / 2.5A
|
Enclosed pcb mount
|
|
CC10-2403SF-E |
8.25 |
18 - 36V |
3.3V / 2.5A
|
Enclosed pcb mount
|
|
CC10-4803SF-E |
8.25 |
36 - 76V |
3.3V / 2.5A
|
Enclosed pcb mount
|
|
CC15-2403SF-E |
14.85 |
18 - 36V |
3.3V / 4.5A
|
Enclosed pcb mount
|
|
CC25-2403SF-E |
24.75 |
18 - 36V |
3.3V / 7.5A
|
Enclosed pcb mount
|
|
CC1R5-0505SF-E |
1.5 |
4,5 - 9V |
5V / 0.3A
|
Enclosed pcb mount
|
|
CC1R5-1205SF-E |
1.5 |
9 - 18V |
5V / 0.3A
|
Enclosed pcb mount
|
|
CC1R5-2405SF-E |
1.5 |
18 - 36V |
5V / 0.3A
|
Enclosed pcb mount
|
|
CC1R5-4805SF-E |
1.5 |
36 - 76V |
5V / 0.3A
|
Enclosed pcb mount
|
|
CC3-0505SF-E |
3 |
4,5 - 9V |
5V / 0.6A
|
Enclosed pcb mount
|
|
CC3-1205SF-E |
3 |
9 - 18V |
5V / 0.6A
|
Enclosed pcb mount
|
|
CC3-2405SF-E |
3 |
18 - 36V |
5V / 0.6A
|
Enclosed pcb mount
|
|
CC3-4805SF-E |
3 |
36 - 76V |
5V / 0.6A
|
Enclosed pcb mount
|
|
CC6-0505SF-E |
5 |
4,5 - 9V |
5V / 1A
|
Enclosed pcb mount
|
|
CC6-1205SF-E |
6 |
9 - 18V |
5V / 1.2A
|
Enclosed pcb mount
|
|
CC6-2405SF-E |
6 |
18 - 36V |
5V / 1.2A
|
Enclosed pcb mount
|
|
CC6-4805SF-E |
6 |
36 - 76V |
5V / 1.2A
|
Enclosed pcb mount
|
|
CC10-0505SF-E |
10 |
4,5 - 9V |
5V / 2A
|
Enclosed pcb mount
|
|
CC10-1205SF-E |
10 |
9 - 18V |
5V / 2A
|
Enclosed pcb mount
|
|
CC10-2405SF-E |
10 |
18 - 36V |
5V / 2A
|
Enclosed pcb mount
|
|
CC10-4805SF-E |
10 |
36 - 76V |
5V / 2A
|
Enclosed pcb mount
|
|
CC15-2405SF-E |
15 |
18 - 36V |
5V / 3A
|
Enclosed pcb mount
|
|
CC25-2405SF-E |
25 |
18 - 36V |
5V / 5A
|
Enclosed pcb mount
|
|
CC1R5-0512SF-E |
1.5 |
4,5 - 9V |
12V / 0.125A
|
Enclosed pcb mount
|
|
CC1R5-1212SF-E |
1.5 |
9 - 18V |
12V / 0.125A
|
Enclosed pcb mount
|
|
CC1R5-2412SF-E |
1.5 |
18 - 36V |
12V / 0.125A
|
Enclosed pcb mount
|
|
CC1R5-4812SF-E |
1.5 |
36 - 76V |
12V / 0.125A
|
Enclosed pcb mount
|
|
CC3-0512SF-E |
3 |
4,5 - 9V |
12V / 0.25A
|
Enclosed pcb mount
|
|
CC3-1212SF-E |
3 |
9 - 18V |
12V / 0.25A
|
Enclosed pcb mount
|
|
CC3-2412SF-E |
3 |
18 - 36V |
12V / 0.25A
|
Enclosed pcb mount
|
|
CC3-4812SF-E |
3 |
36 - 76V |
12V / 0.25A
|
Enclosed pcb mount
|
|
CC6-0512SF-E |
6 |
4,5 - 9V |
12V / 0.5A
|
Enclosed pcb mount
|
|
CC6-1212SF-E |
6 |
9 - 18V |
12V / 0.5A
|
Enclosed pcb mount
|
|
CC6-2412SF-E |
6 |
18 - 36V |
12V / 0.5A
|
Enclosed pcb mount
|
|
CC6-4812SF-E |
6 |
36 - 76V |
12V / 0.5A
|
Enclosed pcb mount
|
|
CC10-0512SF-E |
9.6 |
4,5 - 9V |
12V / 0.8A
|
Enclosed pcb mount
|
|
CC10-1212SF-E |
12 |
9 - 18V |
12V / 1A
|
Enclosed pcb mount
|
|
CC10-2412SF-E |
12 |
18 - 36V |
12V / 1A
|
Enclosed pcb mount
|
|
CC10-4812SF-E |
12 |
36 - 76V |
12V / 1A
|
Enclosed pcb mount
|
|
|
|
|
| |
|
Ürün Listesi Çift (Double) Çıkışlı |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi / Akımı
|
Construction
|
|
CC1R5-0512DF-E |
1.2 |
4,5 - 9V |
15V / 0.05A
-15V / 0.05A |
Enclosed pcb mount |
|
CC1R5-1212DF-E |
1.2 |
9 - 18V |
15V / 0.05A
-15V / 0.05A
|
Enclosed pcb mount
|
|
CC1R5-2412DF-E |
1.2 |
18 - 36V |
15V / 0.05A
-15V / 0.05A
|
Enclosed pcb mount
|
|
CC1R5-4812DF-E |
1.2 |
36 - 76V |
15V / 0.05A
-15V / 0.05A
|
Enclosed pcb mount
|
|
CC3-0512DF-E |
3 |
4,5 - 9V |
15V / 0.1A
-15V / 0.1A
|
Enclosed pcb mount
|
|
CC3-1212DF-E |
3 |
9 - 18V |
15V / 0.1A
-15V / 0.1A
|
Enclosed pcb mount
|
|
CC3-2412DF-E |
3 |
18 - 36V |
15V / 0.1A
-15V / 0.1A
|
Enclosed pcb mount
|
|
CC3-4812DF-E |
3 |
36 - 76V |
15V / 0.1A
-15V / 0.1A
|
Enclosed pcb mount
|
|
CC6-0512DF-E |
6 |
4,5 - 9V |
15V / 0.2A
-15V / 0.2A
|
Enclosed pcb mount
|
|
CC6-1212DF-E |
6 |
9 - 18V |
15V / 0.2A
-15V / 0.2A
|
Enclosed pcb mount
|
|
CC6-2412DF-E |
6 |
18 - 36V |
15V / 0.2A
-15V / 0.2A
|
Enclosed pcb mount
|
|
CC6-4812DF-E |
6 |
36 - 76V |
15V / 0.2A
-15V / 0.2A
|
Enclosed pcb mount
|
|
CC10-0512DF-E |
9.6 |
4,5 - 9V |
15V / 0.32A
-15V / 0.32A
|
Enclosed pcb mount
|
|
CC10-1212DF-E |
10.8 |
9 - 18V |
15V / 0.36A
-15V / 0.36A
|
Enclosed pcb mount
|
|
CC10-2412DF-E |
10.8 |
18 - 36V |
15V / 0.36A
-15V / 0.36A
|
Enclosed pcb mount
|
|
CC10-4812DF-E |
10.8 |
36 - 76V |
15V / 0.36A
-15V / 0.36A
|
Enclosed pcb mount
|
|
CC1R5-0512DF-E |
0.72 |
4,5 - 9V |
12V / 0.06A
-12V / 0.06A
|
Enclosed pcb mount
|
|
CC1R5-1212DF-E |
0.72 |
9 - 18V |
12V / 0.06A
-12V / 0.06A
|
Enclosed pcb mount
|
|
CC1R5-2412DF-E |
0.72 |
18 - 36V |
12V / 0.06A
-12V / 0.06A
|
Enclosed pcb mount
|
|
CC1R5-4812DF-E |
0.72 |
36 - 76V |
12V / 0.06A
-12V / 0.06A
|
Enclosed pcb mount
|
|
CC3-0512DF-E |
1.5 |
4,5 - 9V |
12V / 0.125A
-12V / 0.125A
|
Enclosed pcb mount
|
|
CC3-1212DF-E |
1.5 |
9 - 18V |
12V / 0.125A
-12V / 0.125A
|
Enclosed pcb mount
|
|
CC3-2412DF-E |
1.5 |
18 - 36V |
12V / 0.125A
-12V / 0.125A
|
Enclosed pcb mount
|
|
CC3-4812DF-E |
1.5 |
36 - 76V |
12V / 0.125A
-12V / 0.125A
|
Enclosed pcb mount
|
|
CC6-0512DF-E |
3 |
4,5 - 9V |
12V / 0.25A
-12V / 0.25A
|
Enclosed pcb mount
|
|
CC6-1212DF-E |
3 |
9 - 18V |
12V / 0.25A
-12V / 0.25A
|
Enclosed pcb mount
|
|
CC6-2412DF-E |
3 |
18 - 36V |
12V / 0.25A
-12V / 0.25A
|
Enclosed pcb mount
|
|
CC6-4812DF-E |
3 |
36 - 76V |
12V / 0.25A
-12V / 0.25A
|
Enclosed pcb mount
|
|
CC10-0512DF-E |
9.6 |
4,5 - 9V |
12V / 0.4A
-12V / 0.4A
|
Enclosed pcb mount
|
|
CC10-1212DF-E |
5.4 |
9 - 18V |
12V / 0.45A
-12V / 0.45A
|
Enclosed pcb mount
|
|
CC10-2412DF-E |
5.4 |
18 - 36V |
12V / 0.45A
-12V / 0.45A
|
Enclosed pcb mount
|
|
CC10-4812DF-E |
5.4 |
36 - 76V |
12V / 0.45A
-12V / 0.45A
|
Enclosed pcb mount
|
|
|
| |
| |
|
|
| |
|
|
