PXC-M Serisi 3W, 6W & 10W Medical Isolated DC-DC Konvertör |
| |
|
|
| |
|
|
60601-1 approval |
|
I/O isolation 5kVAC, 2MOPP |
|
0.25µA low patient leakage |
|
4:1 Wide input range |
|
9-36 and 18-75V inputs |
|
Output voltages of 3.3, 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc |
|
3W, 6W and 10W Output power |
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
 |
|
|
| |
|
Açıklama |

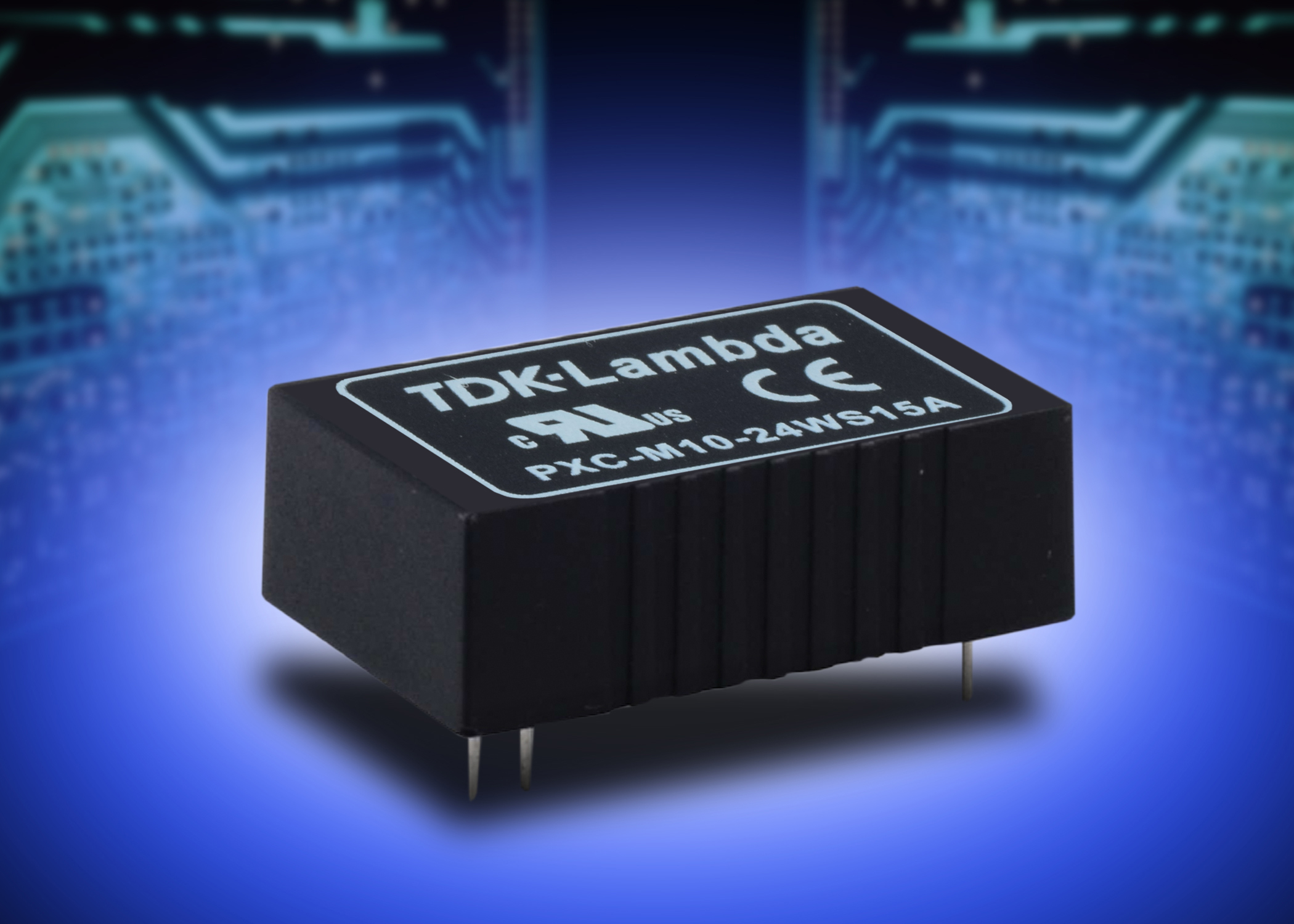

Medically certified to the IEC 60601-1 standards, the PXC-M is housed in the industry standard DIP-24 package. Featuring an input to output isolation voltage of 5,000Vac and accepting either a 9 to 36Vdc or 18 to 75Vdc input, the PXC-M series is available with output voltages of 3.3, 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc. Operation from 12V and 24V, or 24V and 48V nominal inputs reduces inventory carrying costs and improves part availability. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
| |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXC-M03-24WS3P3 |
3.3 |
9 - 36 |
3.3V / 1A
|
Enclosed pcb mount |
|
PXC-M03-48WS3P3 |
3.3 |
18 - 75 |
3.3V / 1A
|
Enclosed pcb mount |
|
PXC-M06-24WS3P3 |
5.9 |
9 - 36 |
3.3V / 1.8A
|
Enclosed pcb mount |
|
PXC-M10-24WS3P3 |
8.3 |
9 - 36 |
3.3V / 2.5A
|
Enclosed pcb mount |
|
PXC-M10-48WS3P3 |
8.3 |
18 - 75 |
3.3V / 2.5A
|
Enclosed pcb mount |
|
PXC-M03-24WS05 |
3 |
9 - 36 |
5V / 0.6A
|
Enclosed pcb mount |
|
PXC-M03-48WS05 |
3 |
18 - 75 |
5V / 0.6A
|
Enclosed pcb mount |
|
PXC-M06-24WS05 |
6 |
9 - 36 |
5V / 1.2A
|
Enclosed pcb mount |
|
PXC-M06-48WS05 |
6 |
18 - 75 |
5V / 1.2A
|
Enclosed pcb mount |
|
PXC-M10-24WS05 |
10 |
9 - 36 |
5V / 2A
|
Enclosed pcb mount |
|
PXC-M10-48WS05 |
10 |
18 - 75 |
5V / 2A
|
Enclosed pcb mount |
|
PXC-M03-24WS12 |
3 |
9 - 36 |
12V / 0.25A
|
Enclosed pcb mount |
|
PXC-M03-48WS12 |
3 |
18 - 75 |
12V / 0.25A
|
Enclosed pcb mount |
|
PXC-M06-24WS12 |
6 |
9 - 36 |
12V / 0.5A
|
Enclosed pcb mount |
|
PXC-M06-48WS12 |
6 |
18 - 75 |
12V / 0.5A
|
Enclosed pcb mount |
|
PXC-M10-24WS12 |
10 |
9 - 36 |
12V / 0.83A
|
Enclosed pcb mount |
|
PXC-M10-48WS12 |
10 |
18 - 75 |
12V / 0.83A
|
Enclosed pcb mount |
|
PXC-M03-24WS15 |
3 |
9 - 36 |
15V / 0.2A
|
Enclosed pcb mount |
|
PXC-M03-48WS15 |
3 |
18 - 75 |
15V / 0.2A
|
Enclosed pcb mount |
|
PXC-M06-24WS15 |
6 |
9 - 36 |
15V / 0.4A
|
Enclosed pcb mount |
|
PXC-M06-48WS15 |
6 |
18 - 75 |
15V / 0.4A
|
Enclosed pcb mount |
|
PXC-M10-24WS15 |
10.1 |
9 - 36 |
15V / 0.67A
|
Enclosed pcb mount |
|
PXC-M10-48WS15 |
10.1 |
18 - 75 |
15V / 0.67A
|
Enclosed pcb mount |
|
PXC-M03-24WS24 |
3 |
9 - 36 |
24V / 0.125A
|
Enclosed pcb mount |
|
PXC-M03-48WS24 |
3 |
18 - 75 |
24V / 0.125A
|
Enclosed pcb mount |
|
PXC-M06-24WS24 |
6 |
9 - 36 |
24V / 0.25A
|
Enclosed pcb mount |
|
PXC-M06-48WS24 |
6 |
18 - 75 |
24V / 0.25A
|
Enclosed pcb mount |
|
PXC-M10-24WS24 |
10 |
9 - 36 |
24V / 0.416A
|
Enclosed pcb mount |
|
PXC-M10-48WS24 |
10 |
18 - 75 |
24V / 0.416A
|
Enclosed pcb mount |
|
|
| |
|
Ürün Listesi Çift Çıkışlı |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXC-M10-48WD15 |
10 |
18 - 75 |
15V / 0.333A
-15V / -0.333A |
Enclosed pcb mount |
|
PXC-M10-24WD15 |
10 |
9 - 36 |
15V / 0.33A
-15V / -0.33A
|
Enclosed pcb mount |
|
PXC-M06-24WD15 |
6 |
9 - 36 |
15V / 0.2A
-15V / -0.2A
|
Enclosed pcb mount |
|
PXC-M06-48WD15 |
6 |
18 - 75 |
15V / 0.2A
-15V / -0.2A
|
Enclosed pcb mount |
|
PXC-M03-24WD15 |
3 |
9 - 36 |
15V / 0.1A
-15V / 0.1A
|
Enclosed pcb mount |
|
PXC-M03-48WD15 |
3 |
18 - 75 |
15V / 0.1A
-15V / 0.1A
|
Enclosed pcb mount |
|
PXC-M10-24WD12 |
10 |
9 - 36 |
12V / 0.416A
-12V / -0.416A
|
Enclosed pcb mount |
|
PXC-M10-48WD12 |
10 |
18 - 75 |
12V / 0.416A
-12V / -0.416A
|
Enclosed pcb mount |
|
PXC-M06-24WD12 |
6 |
9 - 36 |
12V / 0.25A
-12V / -0.25A
|
Enclosed pcb mount |
|
PXC-M06-48WD12 |
6 |
18 - 75 |
12V / 0.25A
-12V / -0.25A
|
Enclosed pcb mount |
|
PXC-M03-48WD12 |
3 |
18 - 75 |
12V / -0.125A
-12V / 0.125A
|
Enclosed pcb mount |
|
PXC-M03-24WD12 |
3 |
9 - 36 |
12V / 0.125A
-12V / 0.125A
|
Enclosed pcb mount |
|
PXC-M10-24WD05 |
10 |
9 - 36 |
5V / 1A
-5V / -1A
|
Enclosed pcb mount |
|
PXC-M10-48WD05 |
10 |
18 - 75 |
5V / 1A
-5V / -1A
|
Enclosed pcb mount |
|
PXC-M03-24WD05 |
3 |
9 - 36 |
5V / 0.3A
-5V / 0.3A
|
Enclosed pcb mount |
|
PXC-M03-48WD05 |
3 |
18 - 75 |
5V / 0.3A
-5V / 0.3A
|
Enclosed pcb mount |
|
PXC-M06-24WD05 |
6 |
9 - 36 |
5V / 0.6A
-5V / 0.6A
|
Enclosed pcb mount |
|
PXC-M06-48WD05 |
6 |
18 - 75 |
5V / 0.6A
-5V / 0.6A
|
Enclosed pcb mount |
|
|
| |
|
|
| |
|
|
