Industry Standard Footprint |
|
Six Sided Shielding |
|
Safety Agency Certifications |
|
12V, 24V and 48V Inputs |
|
Single and Dual Output |
|
20 ve 30W çıkış gücü |
|
1.5V, 3.3V, 5V, 12V ve 15V çıkış gerilimi |
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
 |
|
|
| |
|
Açıklama |

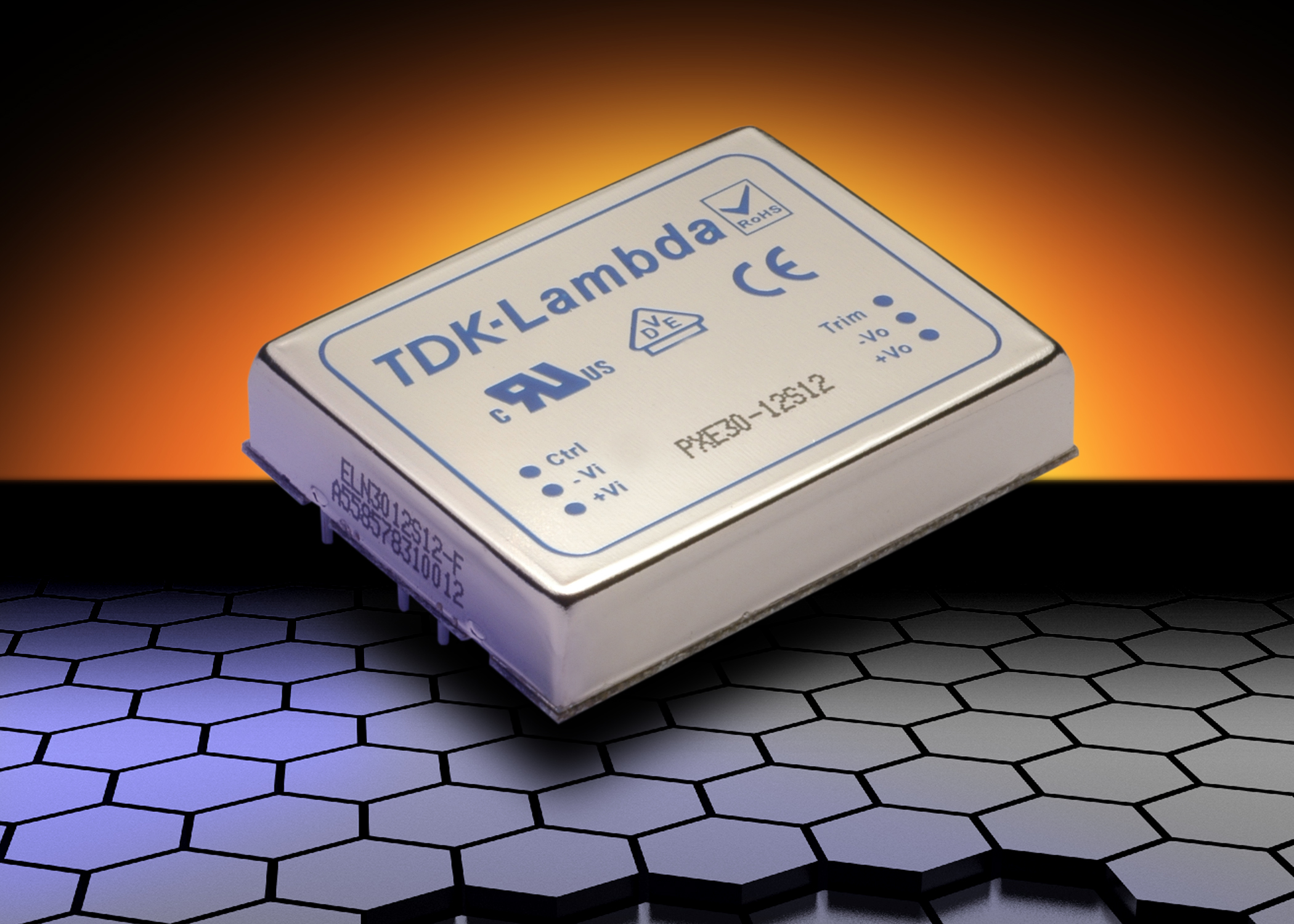

Housed in a metal case for six sided shielding, these 10 to 30W 2"" x 1.6"" footprint converters cover the commonly used nominal input voltages of 12V, 24V or 48V with either 2:1 or 4:1 versions. Both single (1.5V to 15V) and dual output (5V, 12V or 15V) models are available with a choice of positive or negative remote on/off and optional adjustment trim pin. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
| |
|
Ürün Listesi PXE20 Single Output (Wide range) |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXE20-24WS05 |
20 |
10 - 40 |
5V / 4A
|
Enclosed pcb mount |
|
PXE20-48WS05 |
20 |
18 - 75 |
5V / 4A
|
Enclosed pcb mount |
|
PXE20-24WS12 |
20.04 |
10 - 40 |
12V / 1.67A
|
Enclosed pcb mount |
|
PXE20-24WS15 |
19.95 |
10 - 40 |
15V / 1.33A
|
Enclosed pcb mount |
|
|
|
| |
|
Ürün Listesi PXE-20 Dual Output (Wide range) |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXE20-24WD05 |
20 |
10 - 40 |
5V / 2A
5V / 2A
|
Enclosed pcb mount |
|
PXE20-48WD05 |
20 |
18 - 75 |
5V / 2A
5V / 2A
|
Enclosed pcb mount |
|
PXE20-24WD12 |
20 |
10 - 40 |
12V / 0.833A
12V / 0.833A
|
Enclosed pcb mount |
|
PXE20-48WD12 |
20 |
18 - 75 |
12V / 0.833A
12V / 0.833A
|
Enclosed pcb mount |
|
PXE20-24WD15 |
20 |
10 - 40 |
15V / 0.666A
15V / 0.666A
|
Enclosed pcb mount |
|
PXE20-48WD15 |
20 |
18 - 75 |
15V / 0.666A
15V / 0.666A
|
Enclosed pcb mount |
|
|
|
| |
|
Ürün Listesi PXE-30 Single Output |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXE30-12S3P3 |
19.8 |
9 - 18 |
3.3V / 6A
|
Enclosed pcb mount |
|
PXE30-24S3P3 |
19.8 |
18 - 36 |
3.3V / 6A
|
Enclosed pcb mount |
|
PXE30-48S3P3 |
19.8 |
36 - 75 |
3.3V / 6A
|
Enclosed pcb mount |
|
PXE30-12S05 |
30 |
9 - 18 |
5V / 6A
|
Enclosed pcb mount |
|
PXE30-24S05 |
30 |
18 - 36 |
5V / 6A
|
Enclosed pcb mount |
|
PXE30-48S05 |
30 |
36 - 75 |
5V / 6A
|
Enclosed pcb mount |
|
PXE30-12S12 |
30 |
9 - 18 |
12V / 2.5A
|
Enclosed pcb mount |
|
PXE30-24S12 |
30 |
18 - 36 |
12V / 2.5A
|
Enclosed pcb mount |
|
PXE30-48S12 |
30 |
36 - 75 |
12V / 2.5A
|
Enclosed pcb mount |
|
PXE30-12S15 |
30 |
9 - 18 |
15V / 2A
|
Enclosed pcb mount |
|
PXE30-24S15 |
30 |
18 - 36 |
15V / 2A
|
Enclosed pcb mount |
|
PXE30-48S15 |
30 |
36 - 75 |
15V / 2A
|
Enclosed pcb mount |
|
|
|
| |
|
Ürün Listesi PXE-30W Single Output (Wide range) |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXE30-24WS1P5 |
12 |
10 - 40 |
1.5V / 8A
|
Enclosed pcb mount |
|
PXE30-48WS1P5 |
12 |
18 - 75 |
1.5V / 8A
|
Enclosed pcb mount |
|
PXE30-24WS1P8 |
14.4 |
10 - 40 |
1.8V / 8A
|
Enclosed pcb mount |
|
PXE30-48WS1P8 |
14.4 |
18 - 75 |
1.8V / 8A
|
Enclosed pcb mount |
|
PXE30-24WS2P5 |
20 |
10 - 40 |
2.5V / 8A
|
Enclosed pcb mount |
|
PXE30-48WS2P5 |
20 |
18 - 75 |
2.5V / 8A
|
Enclosed pcb mount |
|
PXE30-24WS3P3 |
19.8 |
10 - 40 |
3.3V / 6A
|
Enclosed pcb mount |
|
PXE30-48WS3P3 |
19.8 |
18 - 75 |
3.3V / 6A
|
Enclosed pcb mount |
|
PXE30-24WS05 |
30 |
10 - 40 |
5V / 6A
|
Enclosed pcb mount |
|
PXE30-48WS05 |
30 |
18 - 75 |
5V / 6A
|
Enclosed pcb mount |
|
PXE30-24WS12 |
30 |
10 - 40 |
12V / 2.5A
|
Enclosed pcb mount |
|
PXE30-48WS12 |
30 |
18 - 75 |
12V / 2.5A
|
Enclosed pcb mount |
|
PXE30-24WS15 |
30 |
10 - 40 |
15V / 2A
|
Enclosed pcb mount |
|
PXE30-48WS15 |
30 |
18 - 75 |
15V / 2A
|
Enclosed pcb mount |
|
|
|
| |
|
Ürün Listesi PXE-30 Dual Output |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXE30-12D12 |
30 |
9 - 18 |
12V / 1.25A
12V / 1.25A
|
Enclosed pcb mount |
|
PXE30-24D12 |
30 |
18 - 36 |
12V / 1.25A
12V / 1.25A
|
Enclosed pcb mount |
|
PXE30-48D12 |
30 |
36 - 75 |
12V / 1.25A
12V / 1.25A
|
Enclosed pcb mount |
|
PXE30-12D15 |
30 |
9 - 18 |
15V / 1A
15V / 1A
|
Enclosed pcb mount |
|
PXE30-24D15 |
30 |
18 - 36 |
15V / 1A
15V / 1A
|
Enclosed pcb mount |
|
PXE30-48D15 |
30 |
36 - 75 |
15V / 1A
15V / 1A
|
Enclosed pcb mount |
|
|
|
| |
|
Model Adı |
Çıkış Gücü |
Giriş Gerilimi |
Çıkış Gerilimi/Akımı
|
Construction |
Datasheet |
PXE30-24WD12 |
30 |
10 - 40 |
12V / 1.25A
-12V / 1.25A
|
Enclosed pcb mount |
|
PXE30-48WD12 |
30 |
18 - 75 |
12V / 1.25A
-12V / 1.25A
|
Enclosed pcb mount |
|
PXE30-24WD15 |
30 |
10 - 40 |
15V / 1A
-15V / 1A
|
Enclosed pcb mount |
|
PXE30-48WD15 |
30 |
18 - 75 |
15V / 1A
-15V / 1A
|
Enclosed pcb mount |
|
|
|
| |
