FQA and FQB 20A, 40Vdc Demanding Environment EMC Filters
|
|
|
|
|
|
|
|
Filtering for Compliance to MIL-STD-461(F,G) |
|
Input Spike and Surge Suppression per MIL-STD-1275(D,E), MIL-STD-704(A-F) and RTCA/DO-160G (Sec 16-18) |
|
High Differential and Common Mode Noise Attenuation |
|
-55 to 115°C Temperature Range (M-Grade) |
|
Standard (S-Grade) or Enhanced Screening (M-Grade) Options |
|
Quarter Brick Size |
|
-40°C or -55°C to +115°C Temperature Range |
|
Standard or Enhanced Screening Options |
|
High Noise Attenuation |
|
20A 40Vdc Rating |
|
MIL-STD-883F and MIL-STD-202G qualification |
|
|
|
|
|
|
|
|
|
|
Açıklama |

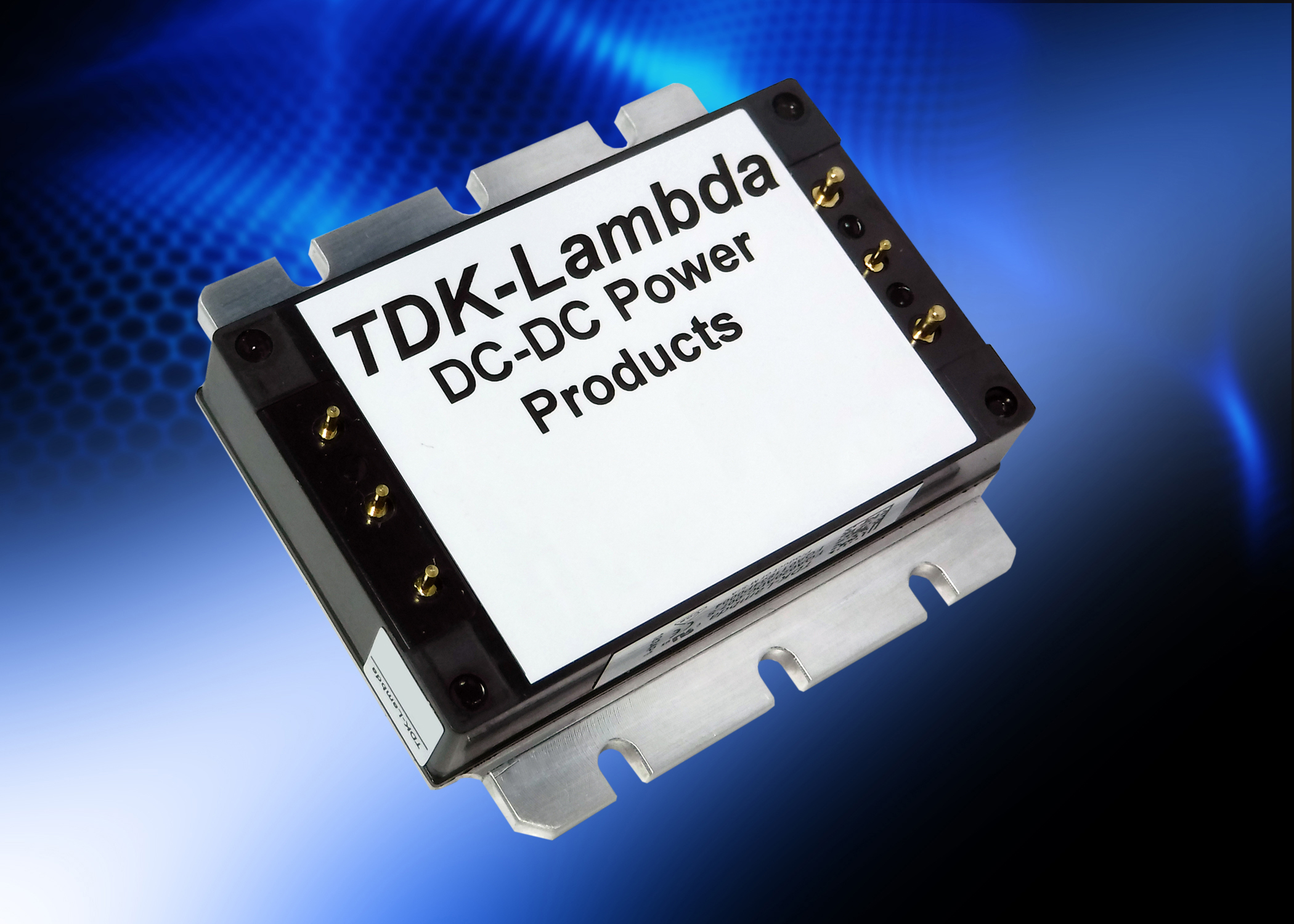

The FQA filter modules reduce differential and common mode conducted emissions from dc-dc switching converters. The series takes advantage of TDK technologies to simplify system level compliance to MILSTD-461.
The FQB filter modules reduce conducted emissions from dc-dc switching converters, and in addition, contains active suppression circuitry to block input voltage surges and transients. The FQB series simplifies system level compliance to MIL-STD-461, MIL-STD-1275, RTCA/DO-160 and MIL-STD-704 per MIL-HDBK-704-8.
The encapsulated rugged package design and a choice of baseplate options make the FQA and FQB modules suitable for use in a wide variety of harsh and demanding environments. |
|
|
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
|
|
|
|
|
Ürün Listesi |
Model Adı |
Giriş gerilimi
|
Akım
|
Flanged Baseplate |
Non-Flanged Baseplate |
Standard Screening (-S) |
Enhanced Screening (-M) |
Datasheet |
|
FQA020ADC-007-S |
-40 to +40 |
20A |
X |
- |
X |
- |
|
FQA020ADC-N07-S |
-40 to +40 |
20A |
- |
X |
X |
- |
|
FQA020ADC-007-M |
-40 to +40 |
20A |
X |
- |
- |
X |
|
FQB020ADC-007-S |
8.5 to +40 |
20A |
X |
- |
X |
- |
|
FQB020ADC-N07-S |
8.5 to +40 |
20A |
- |
X |
X |
- |
|
FQB020ADC-007-M |
8.5 to +40 |
20A |
X |
- |
- |
X |
|
FQB020ADC-N07-M |
8.5 to +40 |
20A |
- |
X |
- |
X |
|
|
|
|
|
|
|
|
|
|
