IDQ Serisi 48V DC EMI Filtreler




Gerilim 75VDC (100VDC for 100ms)
Rated Current 10A
Operating Temperature-40°C to 120°C (see derating curve and measurement point)
Exceptional Differential Mode Performance
Surface or Through Hole Mount Versions
Very Compact Size
Alternative Solution to Discrete Design




Uygulama Alanları


Açıklama

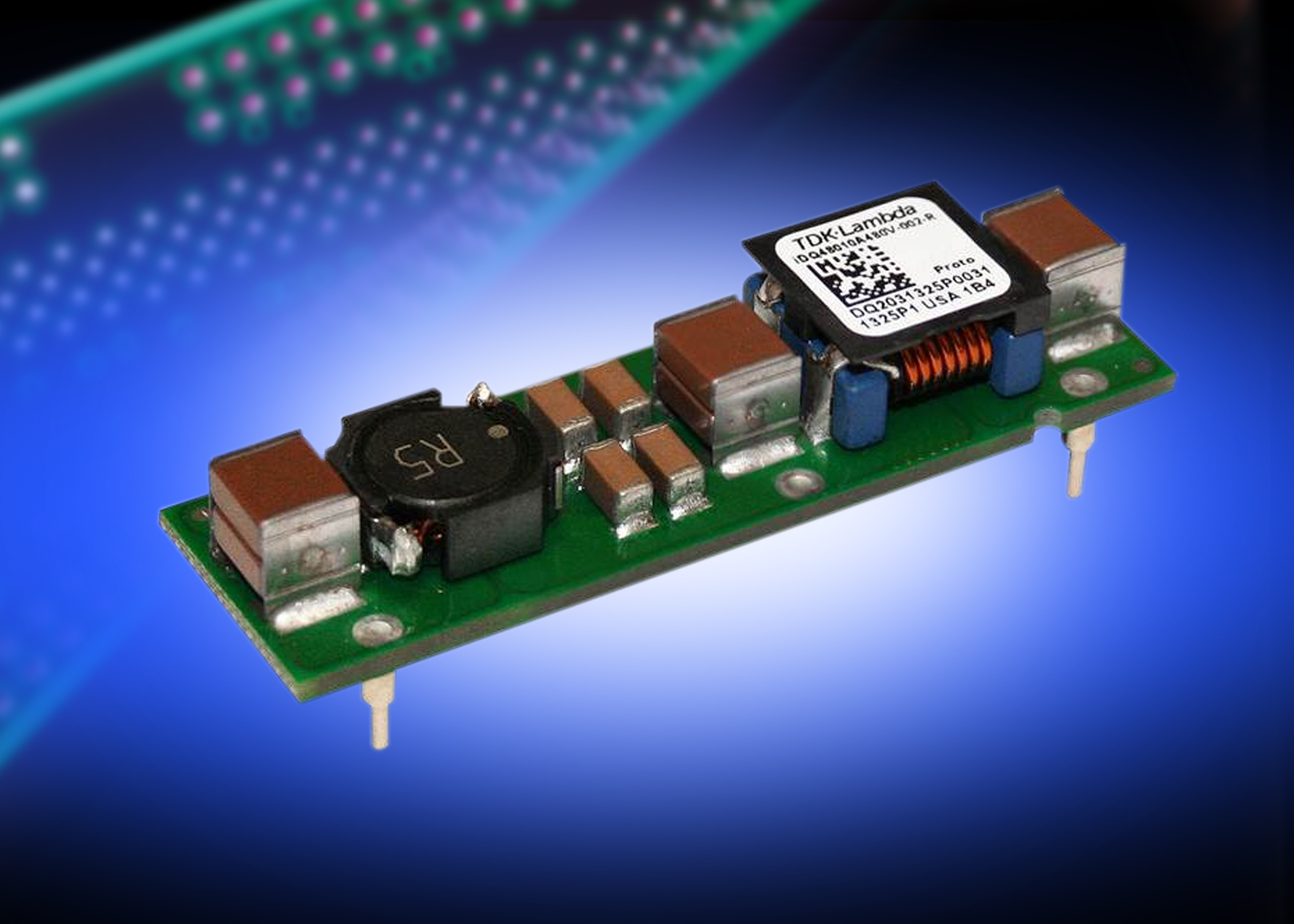

Rated at 10A with a maximum voltage of 75V, this board mounted EMC filter offers exceptional differential mode performance, making it ideal for use with DC-DC converters and thus saving on printed circuit board area. Utilising TDK component technology, system level compliance to FCC and CISPR is made easier. Extra capacitance to ground can be added to further enhance common mode performance.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler
iDQ Datasheet
R Serisi 0.5 to 1000A, 250 to 500VAC EMI/EMC Filtreler
IDQ Serisi DC Filtre


Ürün Listesi
Model Adı
Surface Mount
Through hole
Mount pins
Pin 6
Populated*
Datasheet
iDQ48010A480V-001-R (1)
X
X
iDQ48010A480V-002-R
0.145”
iDQ48010A480V-003-R (1)
0.145”
X

1) Contact factory for status
* Additional capacitance can be placed between pin 3 and pin 6, and also between pin 4 and pin 3 to increase the common mode noise attenuation.
