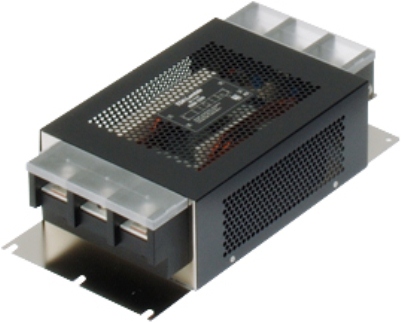

R Serisi 0.5 to 1000A, 250 to 500VAC EMI/EMC Filtreler |
|
|
|
|
|
|
|
Geniş ürün yelpazesi |
|
250V single phase veya 500V three-phase giriş |
|
Şase veya DIN-Rail(30A'e kadar) montaj |
|
Endüstriyel ve medikal uygulamalar için |
|
Geniş akım aralığı 0,5A - 1.000A |
|
Safety Agency Approved |
|
RoHS Compliant |
|
Integrated Terminal Block with Captive Screws |
|
DIN Rail Mount Accessory Kit |
|
Conforms to UL, CSA and EN Safety Agency Certifications |
|
Compact Size |
|
-25°C to +85°C (Derate above 55°C, see derating curve) |
|
Lug or Wire Terminations |
|
Low Earth Leakage Current Option |
|
|
|
|
|
|
Açıklama |
This extensive series covers a wide range of industrial and medical applications, including models utilising amorphous core technology that protect against damaging high voltage pulses. With current ratings of 0.5A to 1,000A, the series is available with 250V single phase or 500V three-phase inputs. DIN rail (up to 30A) or chassis mounting case styles are offered, along with a choice of standard or medical leakage versions. |
|
|
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
|
|
|
|
|
Ürün Listesi |
Model Adı |
Çıkış Gücü |
Akım
|
DIN Rail Mount (Models up to 30A) |
Low Leakage Current |
Other |
Datasheet |
|
RSAL |
250V 1ph |
0.5A to 6A |
- |
OPTION |
|
|
RSEL |
250V 1ph |
0.5A to 6A |
- |
OPTION |
Lower Cost than RSAL |
|
RSAN |
250V 1ph |
3A to 60A |
OPTION |
OPTION |
|
|
RSMN |
250V 1ph |
3A to 60A |
OPTION |
OPTION |
|
|
RSEN |
250V 1ph |
3A to 300A |
OPTION |
OPTION |
Lower Cost than RSHN |
|
RSEV |
250V 1ph |
6 to 30A |
DIN-RSEV Kit |
- |
Lower Cost than RSEN |
|
RSHN |
250V 1ph |
3A to 300A |
OPTION |
OPTION |
Lower Cost than RTAN |
|
RTEN |
500V 3ph |
6A to 300A |
OPTION |
- |
|
|
RTAN |
500V 3ph |
6A to 60A |
OPTION |
- |
|
|
RTMN |
500V 3ph |
6A to 60A |
- |
- |
|
|
RTHB |
500V 3ph |
6A to 150A |
- |
- |
Narrow profile |
|
RTHC |
500V 3ph |
6A to 300A |
- |
- |
Square profile |
|
RTHN |
500V 3ph |
6A to 300A |
- |
- |
Low profile |
|
RTCN
|
|
6A to 300A |
- |
- |
For 3 phase Inverters |
|
|
|
|
|
|
|
|
|
|
