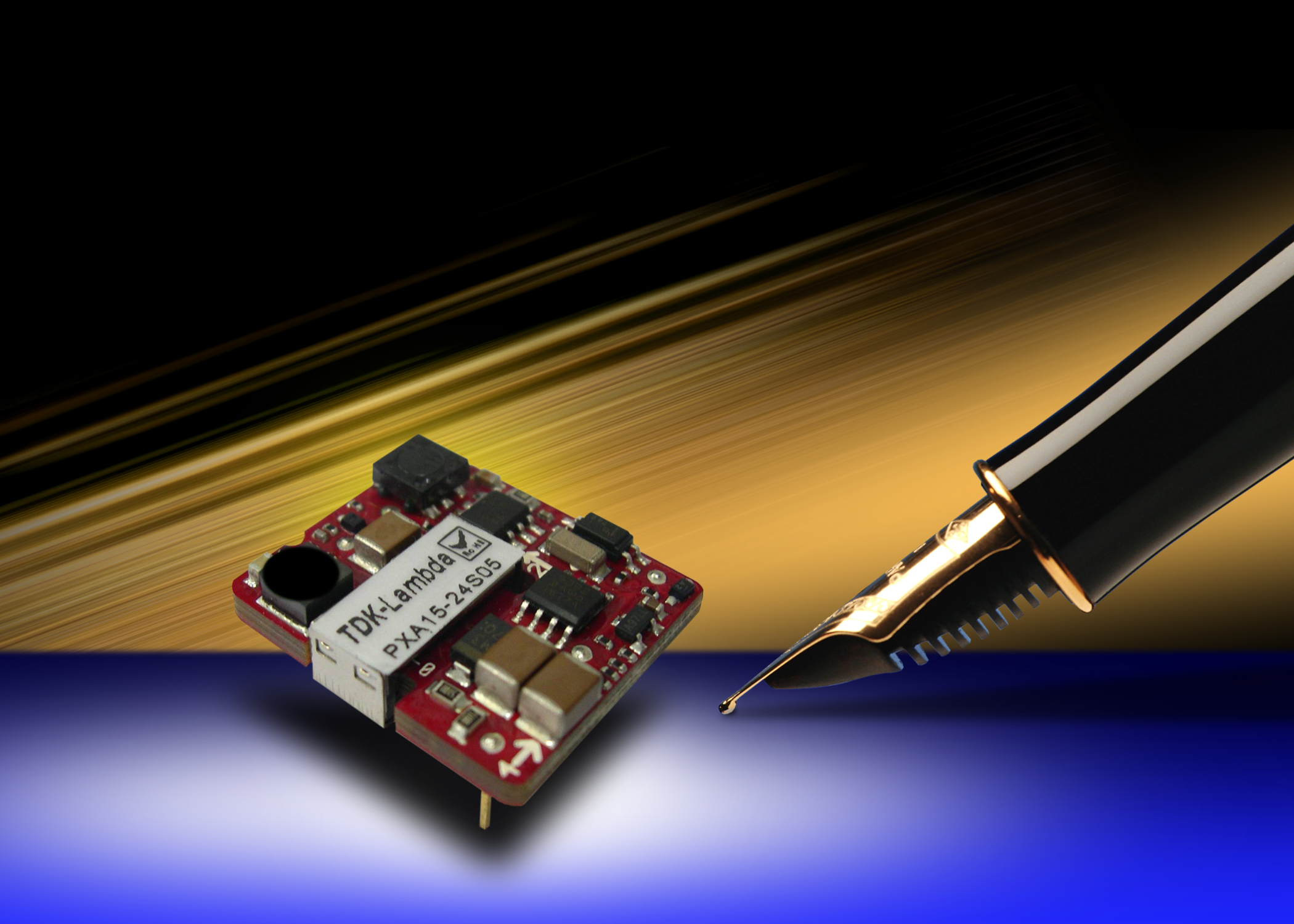

PXA Serisi 15W Single Output DC-DC Konvertör



Industry Standard 1” x 1” Footprint
9-36V veya 18-75VDC giriş gerilimi
Standart pin out
Pin & Surface Mount Models
Efficiency up to 88%
3.3V to 15V outputs







Uygulama Alanları


Açıklama
These fixed frequency, 1"" x 1"" footprint converters feature an open frame design and have 2:1 or 4:1 DC inputs to cover nominal voltages of 12V, 24V and 48V. Models are available covering 3.3V to 15V outputs and have a choice of positive or negative remote on/off. Output adjustment and surface mount versions can also be specified.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler






Ürün Listesi
Model Adı
Çıkış Gücü
Giriş Gerilimi
Çıkış Gerilimi/Akımı
Construction
Datasheet
PXA15-24S3P3
11.55
18 - 36
3.3V / 3.5A
Open Frame pcb mount
PXA15-48S3P3
11.55
36 - 75
3.3V / 3.5A
Open Frame pcb mount
PXA15-24WS3P3
13.2
9 - 36
3.3V / 4A
Open Frame pcb mount
PXA15-48WS3P3
13.2
18 - 75
3.3V / 4A
Open Frame pcb mount
PXA15-24S05
15
18 - 36
5V / 3A
Open Frame pcb mount
PXA15-24WS05
15
9 - 36
5V / 3A
Open Frame pcb mount
PXA15-48S05
15
36 - 75
5V / 3A
Open Frame pcb mount
PXA15-48WS05
15
18 - 75
5V / 3A
Open Frame pcb mount
PXA15-24S12
15
18 - 36
12V / 1.25A
Open Frame pcb mount
PXA15-24WS12
15
9 - 36
12V / 1.25A
Open Frame pcb mount
PXA15-48S12
15
36 - 75
12V / 1.25A
Open Frame pcb mount
PXA15-48WS12
15
18 - 75
12V / 1.25A
Open Frame pcb mount
PXA15-24S15
15
18 - 36
15V / 1A
Open Frame pcb mount
PXA15-24WS15
15
9 - 36
15V / 1A
Open Frame pcb mount
PXA15-48S15
15
36 - 75
15V / 1A
Open Frame pcb mount
PXA15-48WS15
15
18 - 75
15V / 1A
Open Frame pcb mount
