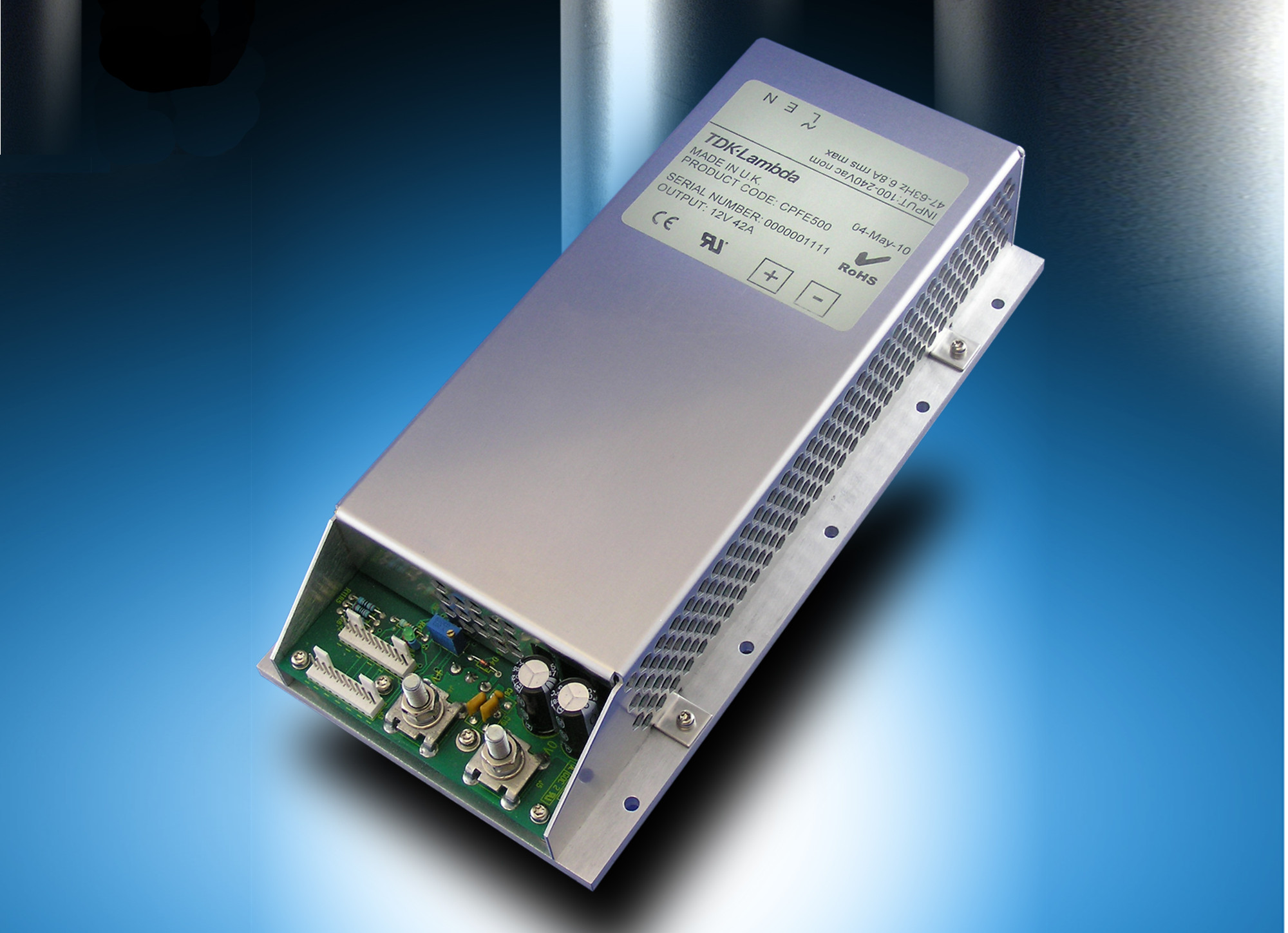

CPFE Serisi Baseplate-cooled 500-1000W AC-DC Güç Kaynağı

Genel Özellikler :
Geniş şebeke çalışma aralığı
Fansız çalışma
Yüksek verimli
Düşük yük ihtiyacı olmadan çalışabilir.
Baseplate cooled
Protective coaing option
2 yıl garantili




Based on TDK-Lambda's PFE series of power modules, these 500 to 1000W AC-DC power supplies feature baseplate cooling. The CPFE series can operate in harsh environments where no fan cooling is permitted. The power supply is available with protective coating to protect against the ingress of dust, moisture and other contaminants making the product ideal for harsh, dusty or outdoor applications. The units conform to MIL STD 461/462D CE102 EMC specifications for defence applications.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Construction
Data Sheet
CPFE500F-12-DL-C
500W
12V / 42A
Enclosed
CPFE1000F-12
720W
12V / 60A
Enclosed
CPFE500F-24-DL-C
432W
24V / 18A
Enclosed
CPFE500F-28-DL-C
500W
28V / 18A
Enclosed
CPFE1000F-28
1008W
28V / 36A
Enclosed
CPFE500F-48-DL-C
500W
48V / 10.5A
Enclosed
CPFE1000F-48
1008W
48V / 21A
Enclosed
Teknik Özellikler
Model
CPFE500F-12-DL-C
CPFE500F-24-DL-C
CPFE500F-28-DL-C
CPFE500F-48-DL-C
Giriş Gerilimi
90 to 265VAC, 47-440Hz (Reduced PFC above 63Hz)
Çıkış Gücü
504W
Çıkış Gerilimi
12V
24V
28V
48V
Çıkış Gerilim Aralığı
9.6V - 14.4V
22.4 - 33.6V
22.4 - 33.6V
38.4 - 57.6V
Çalışma Sıcaklığı
-40 to +85°C (Baseplate)
Safety
UL60950-1, CSA 22.2 No 60950-1, EN60950-1 (Ed 2), CE Mark
EMI
EN55022/EN55011 Class B, MIL STD 461/462D CE102
Immunity
IEC61000-4-2 (Contact Level 2, Air discharge Lvl 3), -3 (Lvl 3), -4(Lvl 3), -5 (Lvl 4),
-6 (Lvl 3), -8 (Lvl 4), -11 (Class 3 ), -12 (Lvl 3), -14 (Class 3)
Ağırlık
with cover 1400g, without cover 1200g
Boyutlar (mm)
270 x 126 x 55mm
