EFE Serisi 300W-400W Digital AC-DC Güç Kaynağı




Giriş çalışma gerilimi 90-264Vac, 45 - 63Hz (440Hz with reduced PFC - consult sales office)
High Efficiency
5 in x 3 in / 6 in x 3 in footprint
No Minimum Load
High Power Density (up to 22W/in³)
Fits 1U applications
400/530 Watts peak power for 10 seconds
High peak power rating
Full Digital Control
Temperature controlled fan option
Short circuit protection Auto recovery after removal of short circuit
Over Temperature protection Primary - auto recovers, secondary - cycle power to restart
Reduces size of power supply needed
Operating Temperature 0°C to 50°C, Low Temp Startup -20°C

Uygulama Alanları


Açıklama

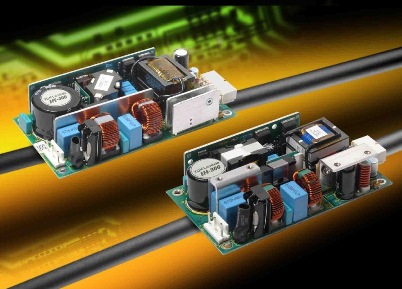

Taking digital control to the next level, TDK-Lambda’s revolutionary EFE Series of embedded power supplies deliver high efficiency and enhanced reliability. Rated at 300W and 400W, with peak power levels of 133%, they offer operating efficiencies of up to 90%. The EFE Series employs an 8-bit microcontroller for full digital control bringing a 25% parts count reduction to achieve a smaller and lighter design.


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

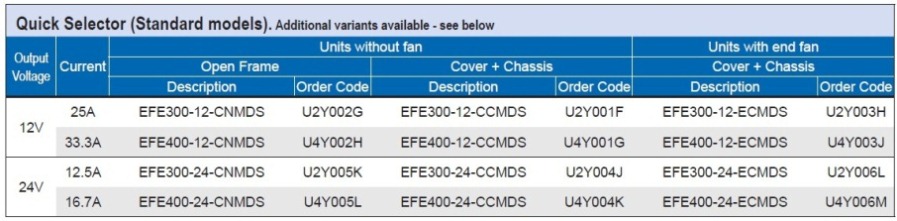

Ürün Listesi
Model Adı
Çıkış Gerilimi / Akımı
Gerilim Ayar Aralığı
Max. Çıkış Gücü
Construction
Datasheet
EFE300-12-CCMDS
12V / 25A
11.4 - 13.2V
300W
Enclosed
12V / 0.25A
11.4 - 13.2V
EFE300-12-CNMDS
12V / 25A
11.4 - 13.2V
300W
Open Frame pcb
12V / 0.25A
11.4 - 13.2V
EFE300-24-CCMDS
24V / 12.5A
22.8 - 26.4V
300W
Enclosed
12V / 0.25A
11.4 - 13.2V
EFE300-24-CNMDS
24V / 12.5A
22.8 - 26.4V
300W
Open Frame pcb
12V / 0.25A
11.4 - 13.2V
EFE400-12-CCMDS
12V / 33.3A
11.4 - 13.2V
400W
Enclosed
12V / 0.25A
11.4 - 13.2V
EFE400-12-CNMDS
12V / 33.3A
11.4 - 13.2V
400W
Open Frame pcb
12V / 0.25A
11.4 - 13.2V
EFE400-24-CCMDS
24V / 16.7A
22.8 - 26.4V
400W
Enclosed
12V / 0.25A
11.4 - 13.2V
EFE400-24-CNMDS
24V / 16.7A
22.8 - 26.4V
400W
Open Frame pcb
12V / 0.25A
11.4 - 13.2V
EFE300-12-ECMDS
12V / 25A
11.4 - 13.2V
300W
Enclosed
EFE400-12-ECMDS
12V / 33.3A
11.4 - 13.2V
400W
Enclosed
EFE300-24-ECMDS
24V / 12.5A
22.8 - 26.4V
300W
Enclosed
EFE400-24-ECMDS
24V / 16.7A
22.8 - 26.4V
400W
Enclosed
