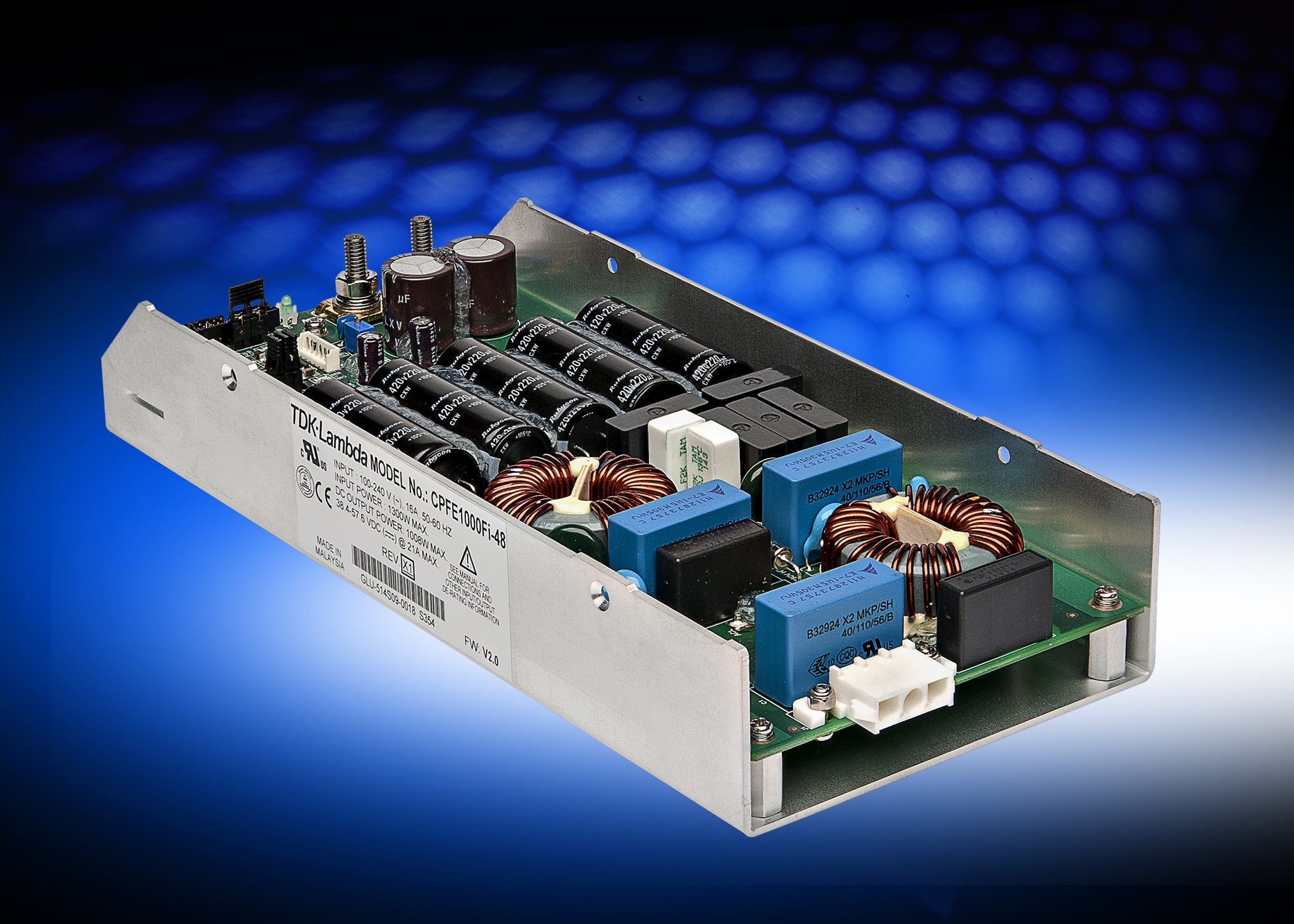

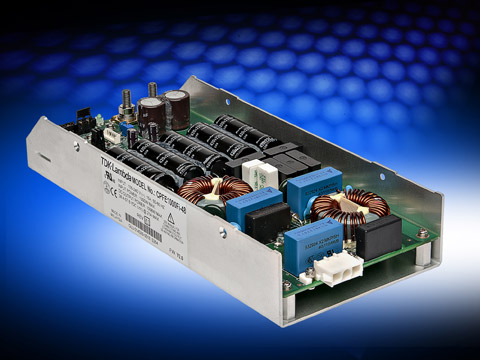

CPFE-1000FI Serisi 720-1000W Doğal Soğutmalı (Conduction Cooled) AC-DC Güç Kaynağı

Genel Özellikler :
Smaller size than CPFE1000F
Baseplate cooled, no fan required
Protective coating option
I2C Interface
Input 90 to 265VAC, 47-63Hz
High Efficiency
Class B Conducted
Low Leakage Medical Versions



The baseplate cooled CPFE1000FI applications include harsh environments where cooling fans are not permitted. They are ideal for users who require a fully compliant power supply, but do not have the time or resources to develop a custom power-module based solution. Three compact package types are available – a low profile U-channel with or without a cover and as an open-frame PCB assembly. A standard I2C interface allows engineers to interrogate and monitor the product in remote applications.

Uygulama Alanları


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Construction
Data Sheet
CPFE1000FI-12
720W
12V / 60A
Open Frame
CPFE1000FI-28
1008W
28V / 36A
Open Frame
CPFE1000FI-48
1008W
48V / 21A
Open Frame
