RTW Serisi 50-300W Tek Çıkışlı Endüstriyel AC-DC Güç Kaynağı |
| |
| |
| |
|
|
Geniş giriş gerilim aralığı (85 - 265VAC (47 - 440Hz), 120-370VDC |
|
Çıkış gerilimleri 3.3V, 5V, 12V, 15V, 24V, 28V, 48V |
|
Çıkış gücü 50W, 100W, 150W, 300W |
|
Çok düşük profil |
|
Doğal soğutmalı |
|
Yüksek verim |
|
UL, C-UL and TUV approved |
|
SEMI F47 Compliant (high line AC) |
|
10°C to +71°C, -20°C start up. See derating curves on sheet 2 |
|
Remote Sense |
|
Remote On/Off |
|
Ultra Thin Package |
| |
|
| |
|
|
 |
|
|
|
| |
|
Açıklama |

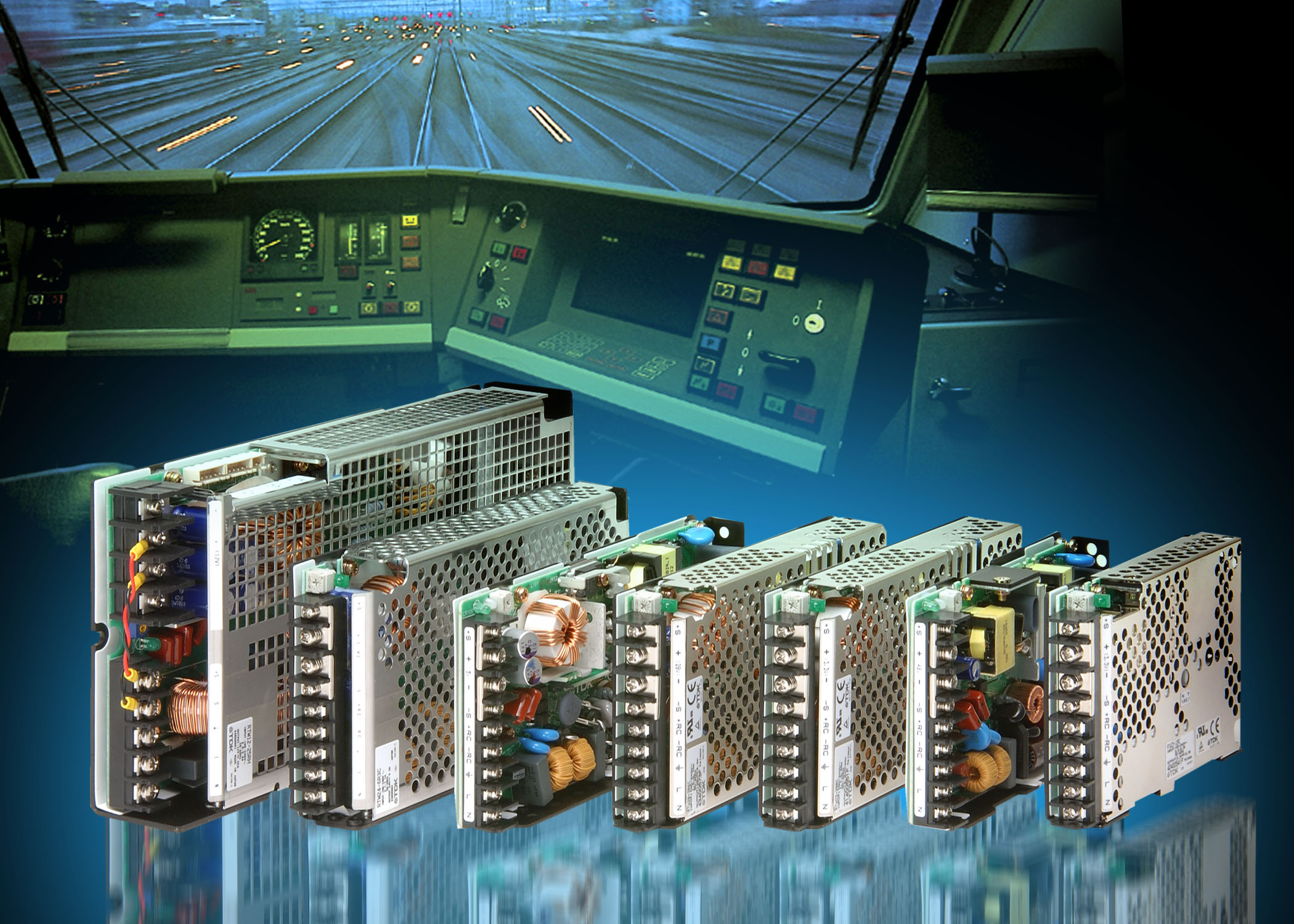

Having an ultra-low profile, the enclosed RTW series of 50 to 300W power supplies provide solutions where space is extremely limited. The height of the 300W RTW is just 40mm with the 50W model measuring 22mm. Output voltages of 3.3, 5, 12, 15, 24, 28 and 48V cover the most popular applications. All models are convection cooled. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
| Ürün Listesi |
Model Adı |
Çıkış Gücü |
Çıkış Gerilimi
|
Çıkış Akımı |
Construction |
Datasheet |
RTW03-12R |
41,25W |
3.3V
|
12,5A |
Open Frame |
|
RTW03-12RC |
41,25W |
3.3V
|
12,5A |
Enclosed |
|
RTW03-12RL |
41,25W |
|
12,5A |
Open Frame |
|
RTW03-25R |
82.5W |
3.3V |
25A |
Open Frame |
|
RTW03-25RC |
82.5W |
3.3V |
25A |
Enclosed |
|
RTW03-25RL |
82.5W |
3.3V |
25A |
Open Frame |
|
RTW03-35RC |
115.5W |
3.3V |
35A |
Enclosed |
|
RTW03-70RH |
231W |
3.3V |
70A |
Enclosed |
|
RTW05-10R |
50W |
5V |
10A |
Open Frame |
|
RTW05-10RC |
50W |
5V |
10A |
Enclosed |
|
RTW05-10RL |
50W |
5V |
10A |
Open Frame |
|
RTW05-20R |
100W |
5V |
20A |
Open Frame |
|
RTW05-20RC |
100W |
5V |
20A |
Enclosed |
|
RTW05-20RL |
100W |
5V |
20A |
Open Frame |
|
RTW05-30RC |
150W |
5V |
30A |
Enclosed |
|
RTW05-60RH |
300W |
5V |
60A |
Enclosed |
|
RTW12-4R3 |
51.6W |
12V |
4.3A |
Open Frame |
|
RTW12-4R3C |
51.6W |
12V |
4.3A |
Enclosed |
|
RTW12-4R3L |
51.6W |
12V |
4.3A |
Open Frame |
|
RTW12-8R4 |
100.8W |
12V |
8.4A |
Open Frame |
|
RTW12-8R4C |
100.8W |
12V |
8.4A |
Enclosed |
|
RTW12-8R4L |
100.8W |
12V |
8.4A |
Open Frame |
|
RTW12-12RC |
150W |
12V |
12.5A |
Enclosed |
|
RTW12-25RH |
300W |
12V |
25A |
Enclosed |
|
RTW15-3R5 |
52.5W |
15V |
3.5A |
Open Frame |
|
RTW15-3R5C |
52.5W |
15V |
3.5A |
Enclosed |
|
RTW15-3R5L |
52.5W |
15V |
3.5A |
Open Frame |
|
RTW15-6R7 |
100.5 |
15V |
6.7A |
Open Frame |
|
RTW15-6R7C |
100.5 |
15V |
6.7A |
Enclosed |
|
RTW15-6R7L |
100.5 |
15V |
6.7A |
Open Frame |
|
RTW15-10R |
150W |
15V |
10A |
Open Frame |
|
RTW15-10RC |
150W |
15V |
10A |
Enclosed |
|
RTW15-20RH |
300W |
15V |
20A |
Enclosed |
|
RTW24-2R2 |
52.8W |
24V |
2.2A |
Open Frame |
|
RTW24-2R2C |
52.8W |
24V |
2.2A |
Enclosed |
|
RTW24-2R2L |
52.8W |
24V |
2.2A |
Open Frame |
|
RTW24-4R2 |
100.8W |
24V |
4.2A |
Open Frame |
|
RTW24-4R2C |
100.8W |
24V |
4.2A |
Enclosed |
|
RTW24-4R2L |
100.8W |
24V |
4.2A |
Open Frame |
|
RTW24-6R3C |
151.2W |
24V |
6.3A |
Enclosed |
|
RTW24-13RH |
312W |
24V |
13A |
Enclosed |
|
RTW28-1R8 |
50.4W |
28V |
1.8A |
Open Frame |
|
RTW28-1R8C |
50.4W |
28V |
1.8A |
Enclosed |
|
RTW28-1R8L |
50.4W |
28V |
1.8A |
Open Frame |
|
RTW28-3R6 |
100.8W |
28V |
3.6A |
Open Frame |
|
RTW28-3R6C |
100.8W |
28V |
3.6A |
Enclosed |
|
RTW28-3R6L |
100.8W |
28V |
3.6A |
Open Frame |
|
RTW28-5R4C |
142.8W |
28V |
5.1A |
Enclosed |
|
RTW28-11RH |
308W |
28V |
11A |
Enclosed |
|
RTW48-1R1 |
52.8W |
48V |
1.1A |
Open Frame |
|
RTW48-1R1C |
52.8W |
48V |
1.1A |
Enclosed |
|
RTW48-1R1L |
52.8W |
48V |
1.1A |
Open Frame |
|
RTW48-2R1 |
100.8 |
48V |
2.1A |
Open Frame |
|
RTW48-2R1C |
100.8 |
48V |
2.1A |
Enclosed |
|
RTW48-2R1L |
100.8 |
48V |
2.1A |
Open Frame |
|
RTW48-3R2C |
153.6W |
48V |
3.2A |
Enclosed |
|
RTW48-6R5H |
312W |
48V |
6.5A |
Enclosed |
|
|
|
|
|
| |
| |
|
| |
|
