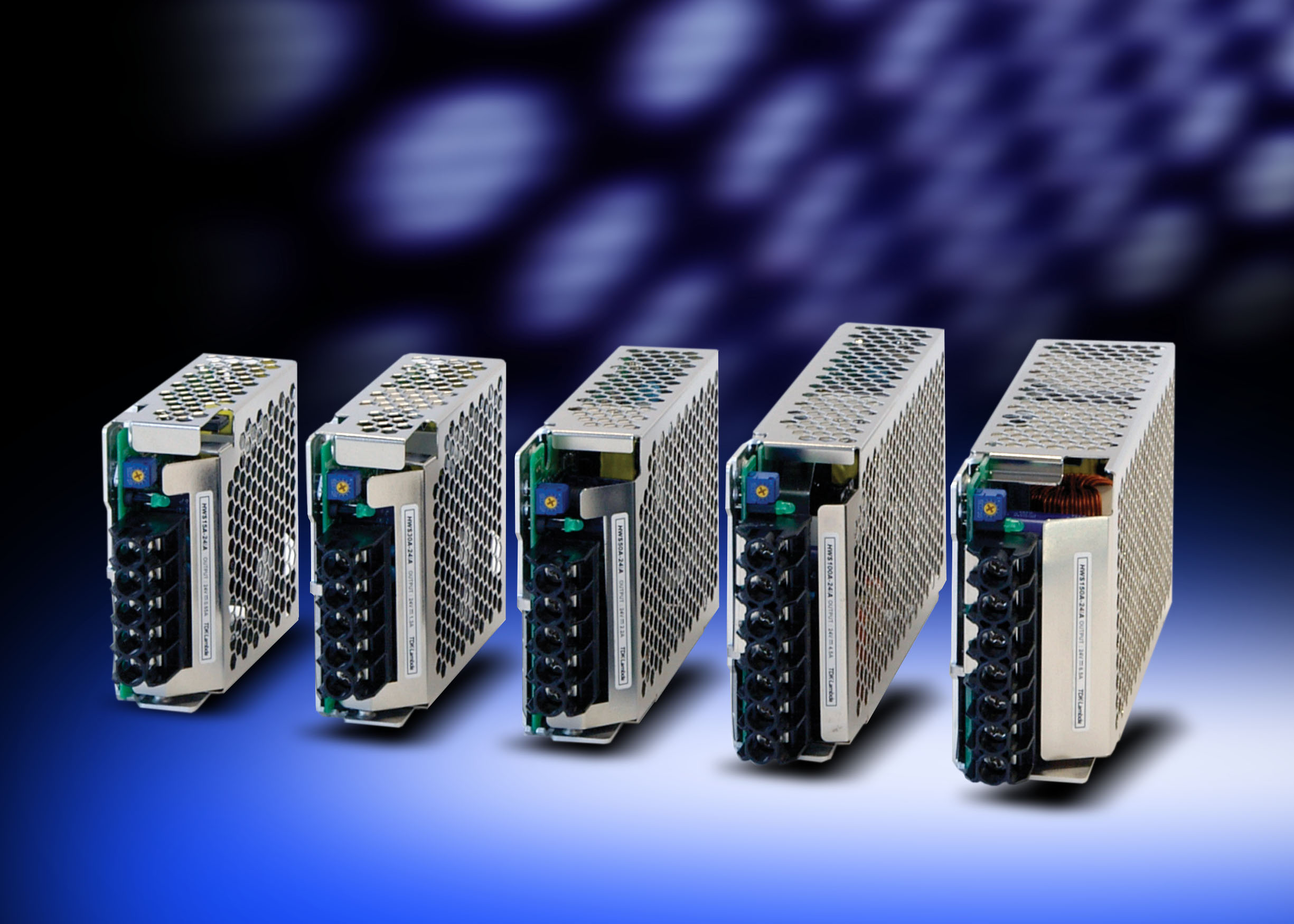

HWS-A Serisi 15-150W Tek Çıkışlı Endüstriyel AC-DC Güç Kaynağı |
| |
| |
| |
|
|
Geniş giriş çalışma aralığı 85 - 265VAC (47-63Hz) Withstands 300VAC for 5s or 120-370VDC |
|
Power Factor.Meets EN61000-3-2 |
|
15, 30, 50, 100 and 150W Models |
|
3.3, 5, 12, 15, 24, ve 48 VDC çıkış gerilimi |
|
|
|
Optional Mesh Cover |
|
Overcurrent Protection >105% |
|
Overvoltage Protection |
|
Remote Sense (HWS-100 ve HWS-150) |
|
Cooling Convection |
|
Operating Temperature (with cover)-10°C to +70°C, derate from 50°C to 70°C |
|
Conducted & Radiated EMI EN55011 / EN55022-B, FCC-B, VCCI-B |
|
Immunity IEC61000-4-2, -3, -4, -5, -6, -8, -11; IEC61000-6-2 |
|
Safety Agency Approvals UL60950-1, CSA60950-1, EN60950-1, EN50178, UL508, CE Mark |
|
.jpg) |
|
|
|
| |
|
Açıklama |
Significantly upgraded in 2013, the HWS-A series now has a higher efficiency (up to 91%), a lighter weight and reduced off-load power draws. The HWS-A series has five power levels, 15, 30, 50, 100 and 150W, and output voltages from 3.3 to 48V. The product is covered by a limited lifetime warranty - a first for the industry when announced in 2008 for the previous HWS generation series. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
|
Ürün Listesi |
Model Adı |
Çıkış Gücü |
Çıkış Gerilimi |
Çıkış Aralığı |
Çıkış Akımı |
Datasheet |
HWSA15-3/A |
9.9W |
3.3V |
2.97 - 3.96V |
3A |
|
HWSA30-3/A |
19.8W |
3.3V |
2.97 - 3.96V |
6A |
|
HWSA50-3/A |
33W |
3.3V |
2.97 - 3.96V |
10A |
|
HWSA100-3/A |
66W |
3.3V |
2.97 - 3.96V |
20A |
|
HWSA150-3/A |
99W |
3.3V |
2.97 - 3.96V |
30A |
|
HWSA15-5/A |
15W |
5V |
4.0 - 6.0V |
3A |
|
HWSA30-5/A |
30W |
5V |
4.0 - 6.0V |
6A |
|
HWSA50-5/A |
50W |
5V |
4.0 - 6.0V |
10A |
|
HWSA100-5/A |
100W |
5V |
4.0 - 6.0V |
20A |
|
HWSA150-5/A |
150W |
5V |
4.0 - 6.0V |
30A |
|
HWS15A-12/A |
15W |
12V |
9.6 - 14.4V |
1.3A |
|
HWS30A-12/A |
30W |
12V |
9.6 - 14.4V |
2.5A |
|
HWS50A-12/A |
50W |
12V |
9.6 - 14.4V |
4.3A |
|
HWS100A-12/A |
100W |
12V |
9.6 - 14.4V |
8.5A |
|
HWS150A-12/A |
150W |
12V |
9.6 - 14.4V |
13A |
|
HWS15A-15/A |
15W |
15V |
12.0 - 18.0V |
1A |
|
HWS30A-15/A |
30W |
15V |
12.0 - 18.0V |
2A |
|
HWS50A-15/A |
50W |
15V |
12.0 - 18.0V |
3.5A |
|
HWS100A-15/A |
100W |
15V |
12.0 - 18.0V |
7A |
|
HWS150A-15/A |
150W |
15V |
12.0 - 18.0V |
10A |
|
HWS15A-24/A |
15W |
24V |
19.2 - 28.8V |
0.65A |
|
HWS30A-24/A |
30W |
24V |
19.2 - 28.8V |
1.3A |
|
HWS50A-24/A |
50W |
24V |
19.2 - 28.8V |
2.2A |
|
HWS100A-24/A |
100W |
24V |
19.2 - 28.8V |
4.5A |
|
HWS150A-24/A |
150W |
24V |
19.2 - 28.8V |
6.5A |
|
HWS15A-48/A |
15W |
48V |
38.4 - 52.8V |
0.33A |
|
HWS30A-48/A |
30W |
48V |
38.4 - 52.8V |
0.65A |
|
HWS50A-48/A |
50W |
48V |
38.4 - 52.8V |
1.1A |
|
HWS100A-48/A |
100W |
48V |
38.4 - 52.8V |
2.1A |
|
HWS15A0-48/A |
150W |
48V |
38.4 - 52.8V |
3.3A |
|
|
|
|
|
|
Opsiyonlar |
Suffix |
Description |
Blank |
HWS300-1500 the cover is fitted as standard |
/A |
Not Applicable. HWS300-1500 the cover is fitted as standard |
/PV |
HWS300, 600 (Standard on HWS1000 & 1500 all output voltages): 1-6V program voltage input to adjust output 20-120% of nominal (20-110% for 48V) (12V-48V models only for 300 & 600W): |
| /HD |
See HWS30-1500/HD Datasheet for details. -40 to +71(74)°C operation, conformally coated PCBs |
| /ME |
See HWS30-1500/ME Datasheet for details. UL60601-1, EN60601-1 medical approvals |
|
|
| |
|
| |
|
