DTM Serisi 40W - 300W Medical External AC-DC Güç Kaynağı




Giriş çalışma 90 - 264VAC (47 - 63Hz)
ErP, CEC and EISA Compliant Models
5V,12V,13.5V,15V,18V,19V,20V, 24V,28V,36V,48V ve 54VDC çıkış
65W, 110W, 165W ve 300W çıkış gücü
Energy efficiency level V & VI models
60601-1 Medical Certification /2xMoPP
Kısadevre ve yüksek gerilim koruması
Çalışma sıcaklığı 0 to +40°C
87% Average Efficiency
Çıkış konnektörü Kycon KPPx-4P or equivalent, Pins 1 & 2: -Vout, Pins 3 & 4: +Vout
AC Input Connector IEC 320-C14 (Accepts IEC 320-C13)
Short Circuit Protection Continuous - hiccup mode (Auto Recovery)
Uygulama Alanları


Açıklama

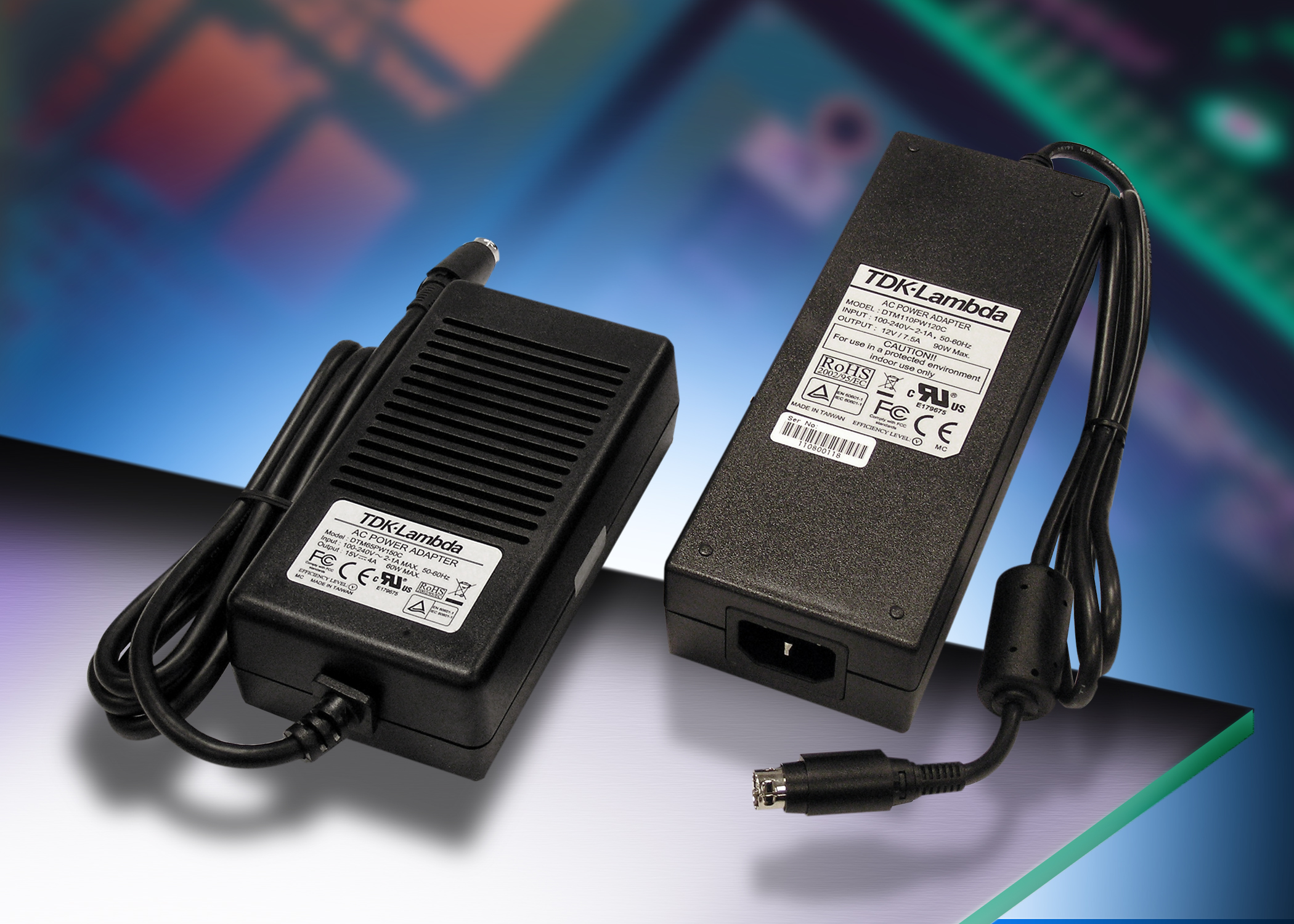

The DTM medical external power supplies are housed in a rugged plastic case and are rated from 40 to 300W with output voltages from 5V to 54V. With off-load power draws as low as <0.21W and high average efficiencies, the units are compliant to ErP Directives and the DoE Level V and VI standards. The DTM65-C8 has Class II operation (no ground wire) and is suitable for home healthcare applications.


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi DTM65-C
Model
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Datasheet
DTM65PW120C
60
12V
5A
Enclosed Plug in
DTM65PW150C
60
15V
4A
Enclosed Plug in
DTM65PW180C
65
18V
3.6A
Enclosed Plug in
DTM65PW190C8
65
19V
3.42A
Enclosed Plug in
DTM65PW240C
65
24V
2.8A
Enclosed Plug in
DTM65PW360C
65
36V
1.8A
Enclosed Plug in
DTM65PW480C
65
48V
1.35A
Enclosed Plug in
Ürün Listesi DTM65-C8
Model
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Datasheet
DTM65PW050C8
40
5V
8A
Enclosed Plug in
DTM65PW120C8
60
12V
5A
Enclosed Plug in
DTM65PW150C8
60
15V
4A
Enclosed Plug in
DTM65PW190C8
65
19V
3.42A
Enclosed Plug in
DTM65PW240C8
65
24V
2.7A
Enclosed Plug in
DTM65PW280C8
65
28V
2.32A
Enclosed Plug in
DTM65PW480C8
65
48V
1.35A
Enclosed Plug in

Ürün Listesi DTM-110C
Model
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Datasheet
DTM110PW120C
90
12V
7.5A
Enclosed Plug in
DTM110PW135C
90
13.5V
6.67A
Enclosed Plug in
DTM110PW150C
100
15V
6.67A
Enclosed Plug in
DTM110PW190C
110
19V
5.8A
Enclosed Plug in
DTM110PW200C
110
20V
5.5A
Enclosed Plug in
DTM110PW240C
110
24V
4.6A
Enclosed Plug in


Ürün Listesi DTM-165C
Model
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Datasheet
DTM165PW120C
160
12V
13.333A
Enclosed Plug in
DTM165PW150C
160
15V
10.67A
Enclosed Plug in
DTM165PW190C
160
19V
8.42A
Enclosed Plug in
DTM165PW240C
160
24V
6.88A
Enclosed Plug in
DTM165PW280C
160
28V
5.89A
Enclosed Plug in
DTM165PW360C
160
36V
4.58A
Enclosed Plug in
DTM165PW480C
160
48V
3.44A
Enclosed Plug in

Ürün Listesi DTM-300
Model
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Datasheet
DTM300PW-120D1
300
12V
25A
Enclosed Plug in
DTM300PW-120D2
300
12V
25A
Enclosed Plug in
DTM300PW-190D1
300
19V
15.79A
Enclosed Plug in
DTM300PW-190D2
300
19V
15.79A
Enclosed Plug in
DTM300PW-240D1
300
24V
12.5A
Enclosed Plug in
DTM300PW-240D2
300
24V
12.5A
Enclosed Plug in
DTM300PW-280D1
300
28V
10.71A
Enclosed Plug in
DTM300PW-280D2
300
28V
10.71A
Enclosed Plug in
DTM300PW-480D1
300
48V
6.25A
Enclosed Plug in
DTM300PW-480D2
300
48V
6.25A
Enclosed Plug in
DTM300PW-540D1
300
54V
5.56A
Enclosed Plug in
DTM300PW-540D2
300
54V
5.56A
Enclosed Plug in
