CFE-400M Serisi 400W Medikal Digital AC-DC Güç Kaynağı




Wide Range Input 85-264Vac (100-240Vac nominal) 47 - 63Hz (440Hz with reduced PFC - consult sales office)
300W convection / 400W fan cooled,
12V, 24V ve 48VDC çıkış gerilimi
Designed for Medical Equipment
%94 verim
0.5W standby mode power
Meets ERP/Eco-Design (2009/125/EC)
Meets Climate Savers Silver level
178 mm x 100mm (7 in x 4 in)
Fits 1U applications
High Power Density
Remote ON/OFF and remote sense.
Parallel connection For N+1 redundancy with ORing FET option
Short circuit protection Auto recovery after removal of short circuit
Uygulama Alanları


Açıklama

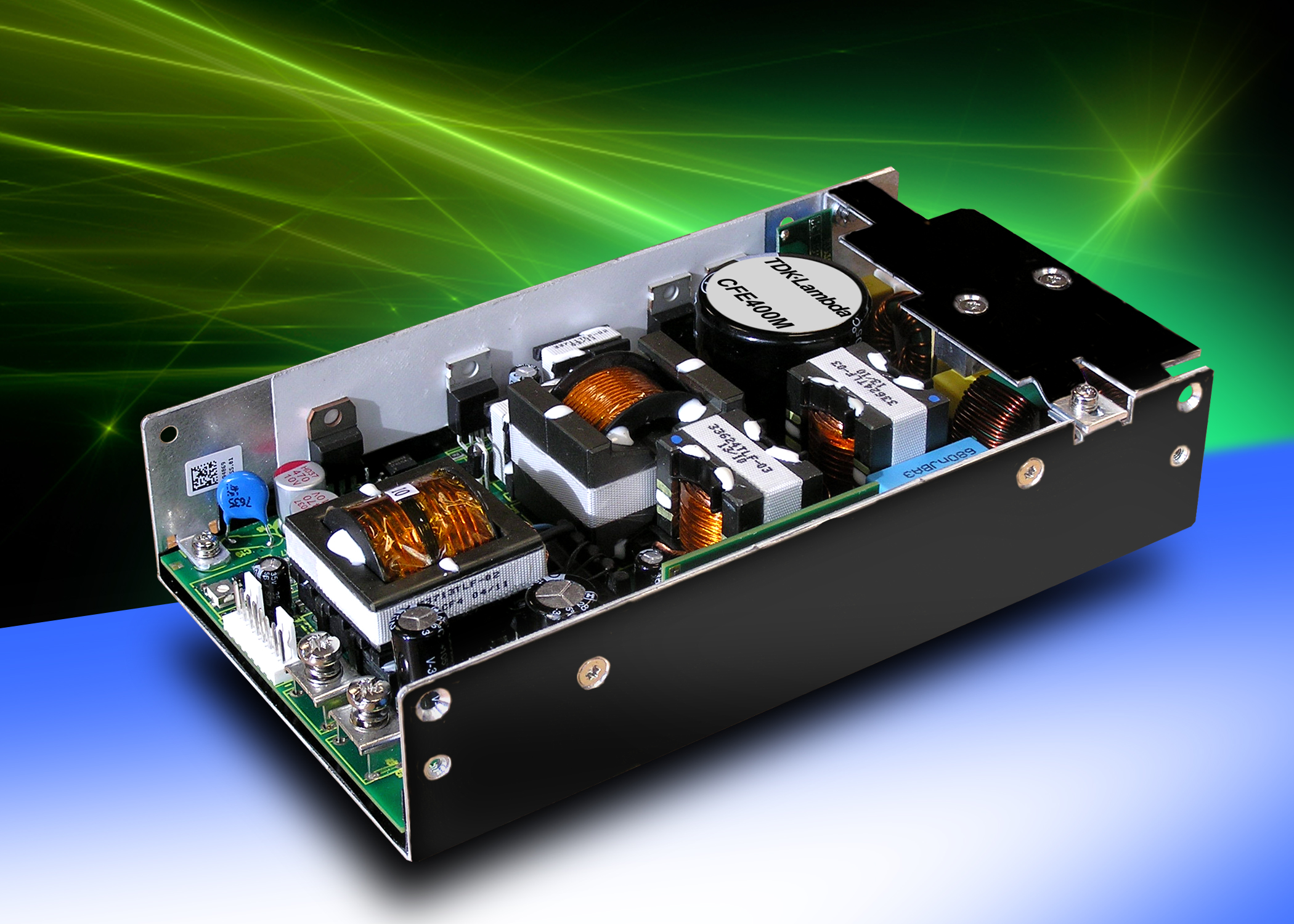

The digitally controlled, single output CFE400M is available in convection (300W) and fan cooled versions (400W), both featuring a peak power rating of 450W. Combining a 4kVac input-to-output isolation and an output-to-ground isolation of 1500Vac, the CFE400M is certified for medical equipment, including BF (body floating) type. The series has <0.5W standby power consumption and all models meet or exceed Climate Savers Silver level. Other features include a 94% efficiency, remote ON/OFF and remote sense.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler
CFE400M U Chassis (STEP format)
HWS30-1500HD (30-1500W)


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Gerilimi
Gerilim Ayar Aralığı
Çıkış Akımı
Construction
Datasheet
CFE400M-12-5C-N1-CML-NT
400W
12V
10,8 - 14,4V
33.3A
Enclosed
CFE400M-12-5C-TF-CML-NT
400W
12V
10,8 - 14,4V
33,3A
Enclosed
CFE400M-24-5C-N1-CML-NT
400W
24V
21.6 - 28.8 V
16.6A
Enclosed
CFE400M-24-5C-TF-CML-NT
400W
24V
21.6 - 28.8 V
16,6A
Enclosed
CFE400M-48-5C-N1-CML-NT
400W
48V
43.2 - 50,0 V
8,3A
Enclosed
CFE400M-48-5C-TF-CML-NT
400W
48V
43.2 - 50,0 V
8,3A
Enclosed
