DRF/HL 120-240 Hazardous ve Marine DIN-Rail DC Güç Kaynağı, ATEX Dın-rail power supply, ray montaj güç kaynağı, smps, DPP, DSP, DLP, DRL, DRF, Power Supply, din rail güç kaynağı

DRF/HL Serisi 120-480W Hazardous ve Marine DIN-Rail (Ray) Montaj AC-DC Güç Kaynakları


	Geniş giriş gerilim aralığı 85 - 264 (withstand 300VAC surge for 5s)
	120, 240 ve 480W güçlerinde
	24VDC çıkış gerilimi
	IECEx / ATEX Approval
	DNV / German Lloyd Approval
	Conformal Coated Circuit Boards
	ErP uyumlu dizayn
	Narrow Convection Cooled Design
	Mükemmel dar kutu tasarımı
	Remote Programming voltage range 5 - 6V presets the output to 24-28V
	Paralel çalışma mümkün
	DC OK relay Relay contact 30V/1A
	Operating temperature -25°C to +70°C. Start up at -40°C
	Constant current (CC) limit for >105% of peak output current

Uygulama Alanları

	Açıklama

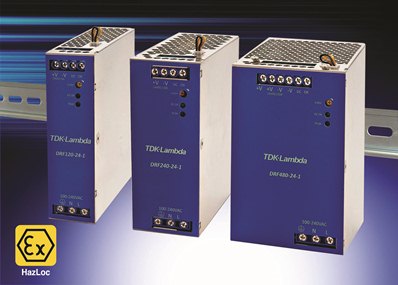

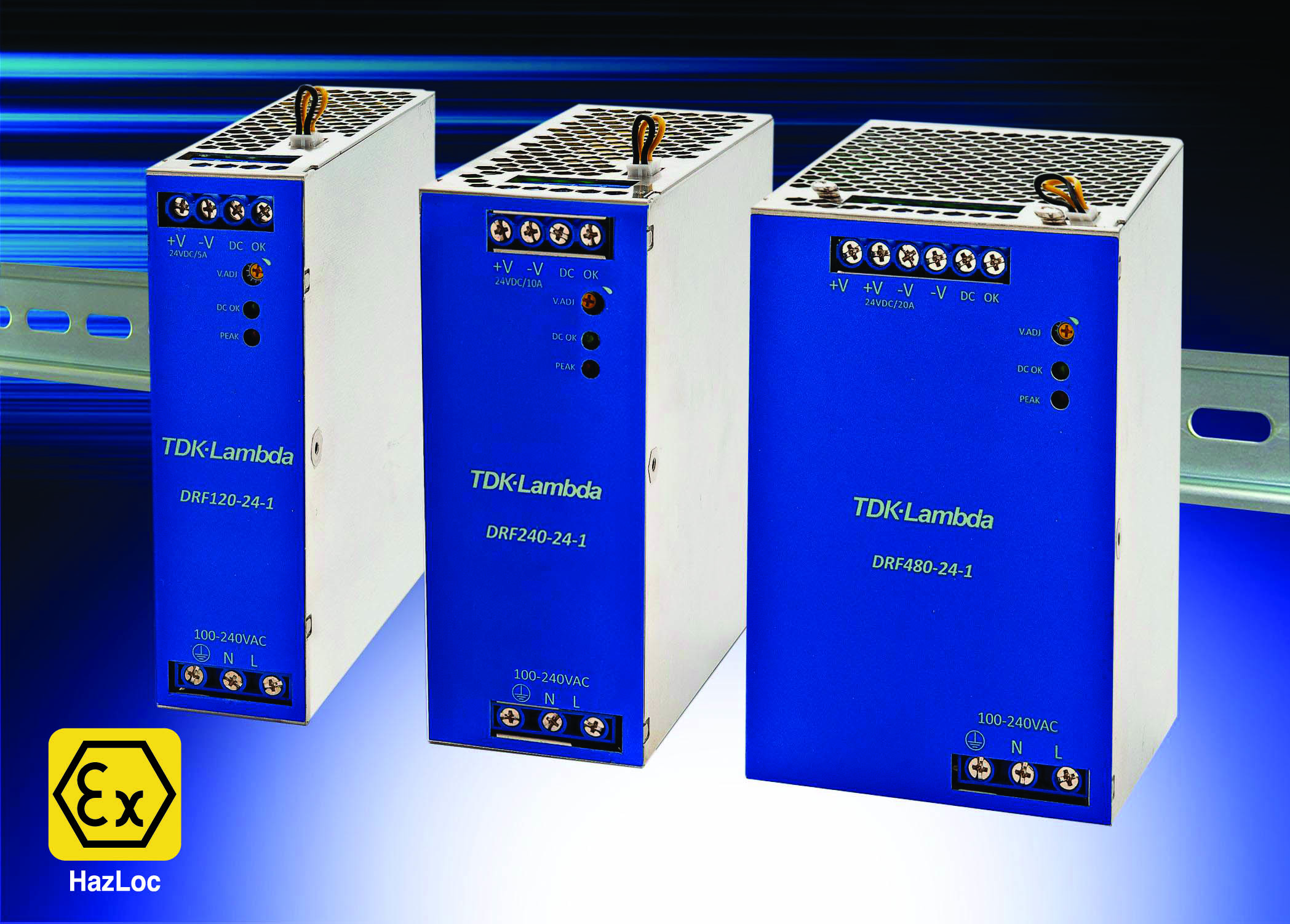

Featuring IECEx / ATEX and DNV / German Lloyd / Class 1 Div 2 approvals for hazardous and marine applications, the DRF/HL models extend the existing DRF series of 120 to 480W DIN rail mount power supplies. Accepting a wide range AC input of 85 to 265V (300V for 5s), these highly efficient power supplies can deliver a peak load of 150% in compact, slim-line packages.

Teknik Broşür, Manuel ve Dosyalar

Benzer Ürünler

	DRF/HL Datasheet
	DRF120-24-1/HL Installation Manual V2
	DRF240-24-1/HL Installation Manual V2
	DRF480-24-1/HL Installation Manual V2
	Specification, Drawings, Technical Files
	Ürün resmi

	DLP-75-240W DINRail mount power supply
	DPP-15-960W DINRail mount power supply
	DRB-15-480W Single Output DIN Rail Power Supplies
	DRF-120W-960W Single Output High Efficiency DIN Rail Mount Power Supplies
	DRF/HL 120W-480W DIN Rail Mount Power Supplies for hazardous and marine locations
	DRL-10-100W Low Profile DIN Rail Mount Power Supplies
	DSP-7.5-100W low profile DINRail mount power supply
	DRM40 20-40A DIN Rail Redundancy Modules

Aksesuarlar

Ürün Listesi

Model Adı

Çıkış Gücü

Peak
Çıkış gücü

Çıkış Gerilimi

Gerilim Ayar Aralığı

Çıkış Akımı

Peak
Çıkış Akımı

Construction

Datasheet
