DRM40 20-40A DIN Rail Redundancy Modules


	Input Voltage Range 10-30Vdc
	Number of inputs 2
	Maximum Input Current 2 x 20A, total 60A peak
	Maximum Output Current 40A
	Internal Power Loss (typ) 8W at 40A
	Input to Output Voltage Drop 0.2V at 40A
	Maximum Reverse Voltage 40Vdc
	Compact Size
	Low 200mV Voltage Drop
	Current Balance Indicator Option
	Isolated Alarm Signals

Uygulama Alanları

Açıklama

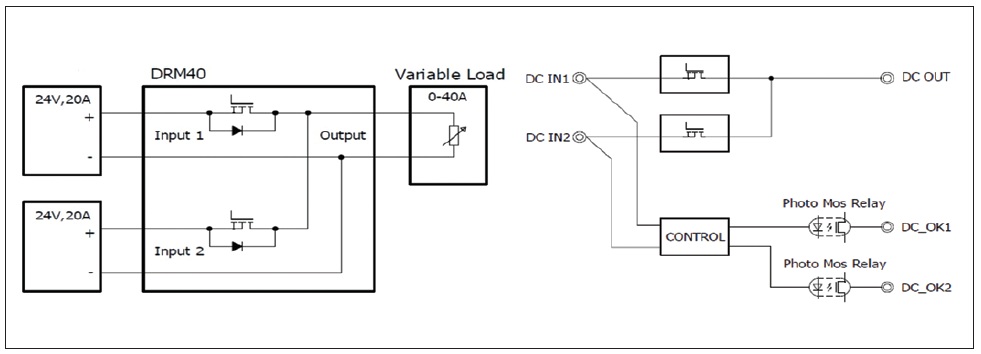

The DRM40 series of 20 to 40A DIN rail mount redundancy modules can be used in N+1 redundancy applications or to parallel two power supplies for additional power. The DRM40 has a current balancing LED indicator which is illuminated when both power supplies have been adjusted to deliver the same current. Two isolated alarm signals indicate the output voltage status of each power supply. Internally the DRM40 has a low 200mV voltage drop.

Teknik Broşür, Manuel ve Dosyalar

Benzer Ürünler

	DRM40 Datasheet
	DRM40 Manual
	DRM40 - 3D Drawing (Iges file)
	DRM40 Evaluation Data
	DRM40 IEC Data

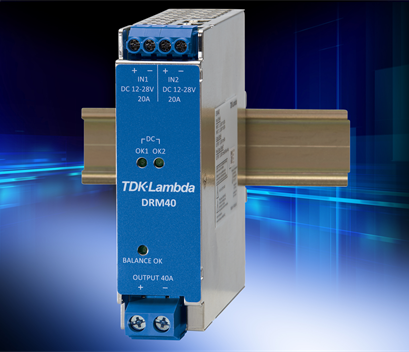

	Ürün resmi
