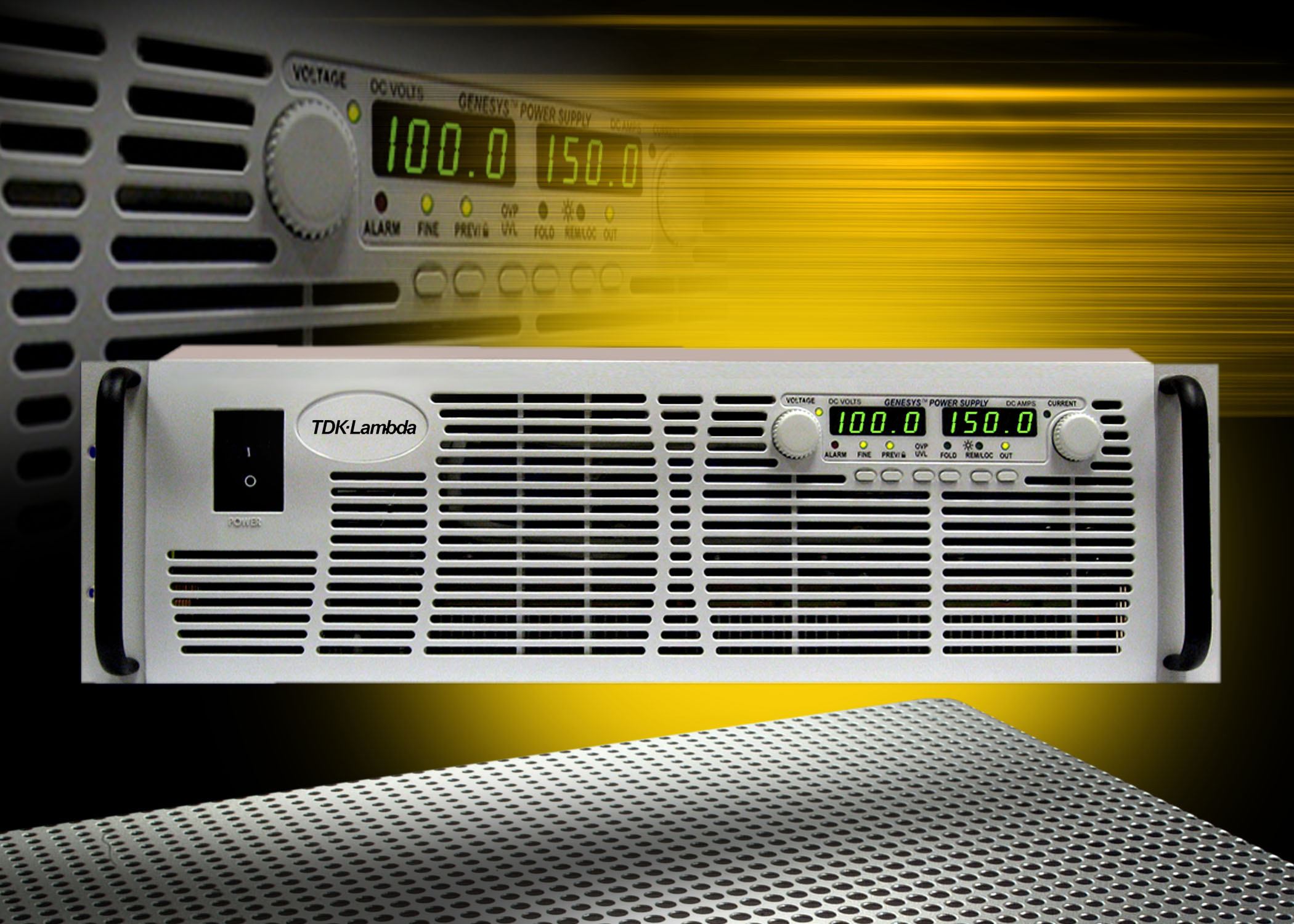

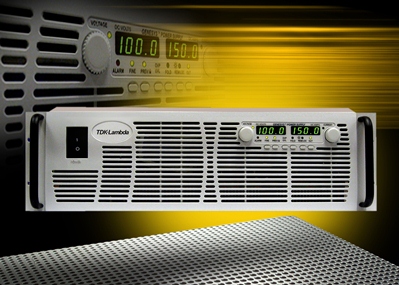

GENESYS Serisi 3U Programmable AC-DC Güç Kaynağı (10kW-15kW)

Genel Özellikler :
Wide Range of popular worldwide 3Ph AC inputs, (208VAC, 400VAC, 480VAC)

Power Factor 0.88 (Passive Correction on all Inputs)
Output Voltage up to 600V, Current up to 1,000A
Built-in RS-232/RS-485 Interface Standard
Last Setting Memory; Front Panel Lockout
Reliable Encoders for Voltage and Current Adjustment
Constant Voltage/Constant Current auto-crossover
Global Commands for Serial RS-232/RS-485 Interface
Independent Remote ON/OFF and Remote Enable/Disable
19" Rack Mounted for ATE and OEM Applications, zero stack


Downloads
Spesifikasyonlar :
Related İnformation :
Instruction Manuals :
Software :
Ürün Genel Bilgileri
Ürün adı
:
Genesys™ 3U
Güç aralığı
:
7500 - 15000W
Giriş / Çıkış bilgisi
:
AC-DC / 1 çıkış
İlave bilgi
:
Programmable Power supply Rack mount (Hot swap)
Ürün Listesi 10kW
Ürün Listesi
Çıkış Gerilimi
Çıkış Akımı
Çıkış Gücü
GEN7.5-1000-MD-3P400
0 - 7.5VDC
0 - 1000A
7,5kW
GEN10-1000-MD-3P400
0 - 10VDC
0 - 1000A
10kW
GEN12.5-800-MD-3P400
0 - 12.5VDC
0 - 800A
10kW
GEN20-500-MD-3P400
0 - 20VDC
0 - 500A
10kW
GEN25-400-MD-3P400
0 - 25VDC
0 - 400A
10kW
GEN30-333-MD-3P400
0 - 30VDC
0 - 333A
10kW
GEN40-250-MD-3P400
0 - 40VDC
0 - 250A
10kW
GEN50-200-MD-3P400
0 - 50VDC
0 - 200A
10kW
GEN60-127-MD-3P400
0 - 60VDC
0 - 127A
10kW
GEN80-125-MD-3P400
0 - 80VDC
0 - 125A
10kW
GEN100-100-MD-3P400
0 - 100VDC
0 - 100A
10kW
GEN125-80-MD-3P400
0 - 125VDC
0 - 80A
10kW
GEN150-66-MD-3P400
0 - 150VDC
0 - 66A
10kW
GEN200-50-MD-3P400
0 - 200VDC
0 - 50A
10kW
GEN250-40-MD-3P400
0 - 250VDC
0 - 40A
10kW
GEN300-33-MD-3P400
0 - 300VDC
0 - 33A
10kW
GEN400-25-MD-3P400
0 - 400VDC
0 - 25A
10kW
GEN500-20-MD-3P400
0 - 500VDC
0 - 20A
10kW
GEN600-17-MD-3P400
0 - 600VDC
0 - 17A
10kW

Ürün Listesİ 15kW
Ürün Listesi
Çıkış Gerilimi
Çıkış Akımı
Çıkış Gücü
GEN80-187.5-MD-3P400
0 - 80VDC
0 - 187.50A
15kW
GEN100-150-MD-3P400
0 - 100VDC
0 - 150A
15kW
GEN125-120-MD-3P400
0 - 125VDC
0 - 120A
15kW
GEN150-100-MD-3P400
0 - 150VDC
0 - 100A
15kW
GEN200-75-MD-3P400
0 - 200VDC
0 - 75A
15kW
GEN250-60-MD-3P400
0 - 250VDC
0 - 60A
15kW
GEN300-50-MD-3P400
0 - 300VDC
0 - 50A
15kW
GEN400-37.5-MD-3P400
0 - 400VDC
0 - 37.5A
15kW
GEN500-30-MD-3P400
0 - 500VDC
0 - 30A
15kW
GEN600-25-MD-3P400
0 - 600VDC
0 - 25A
15kW
