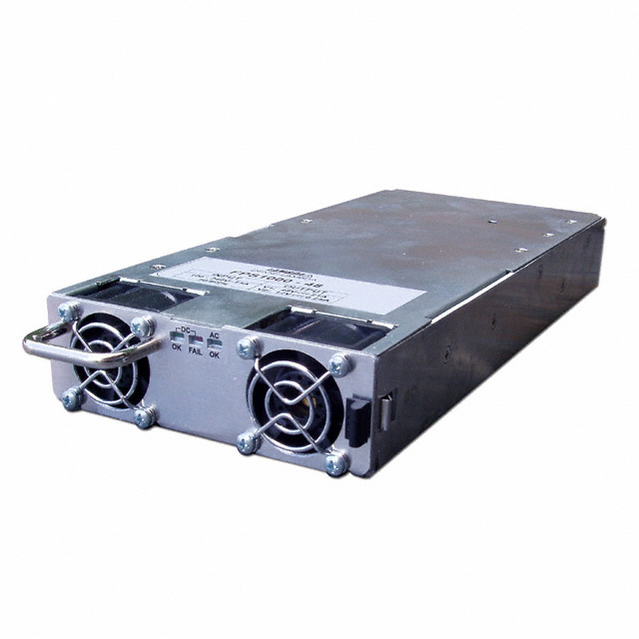

FPS Serisi 1U Front End Rack AC-DC Güç Kaynağı |
| |
| |
|
|
| |
|
|
Giriş çalışma 85-265VAC, 47-63Hz (Derate 10% < 100VAC) |
|
1000W çıkış gücü, 19'' Rack de 3 adet paralel (3000W) |
|
12V, 24V, 32V ve 48VDC çıkış |
|
N+1 yedekli paralel çalışabilme (max. 8 adet 1000W) |
|
Hotswap capable (Oring Diodes Built In) |
|
PoE Option (Çıkış-toprak 1500VAC (çıkış noise 400mV)) |
|
I2 C İnterface (24VDC için) |
|
PoE Option |
|
Easier System Monitoring |
|
Signals (opto isolated) DC OK, AC Fail, and Over temperature warning, high on fail |
|
Remote On/Off On: 0 - 0.6V or short, Off: 2- 15V or open |
|
Auxiliary Output 11.2-12.5VDC 0.25A |
|
Front panel indicators AC OK, DC OK, DC Fail |
|
Operating Temperature 0°C to +70°C, derate 2%/°C from 50°C to 60°C, 2.5%/°C from 60°C to 70°C |
|
 |
|
|
| |
|
Açıklama |

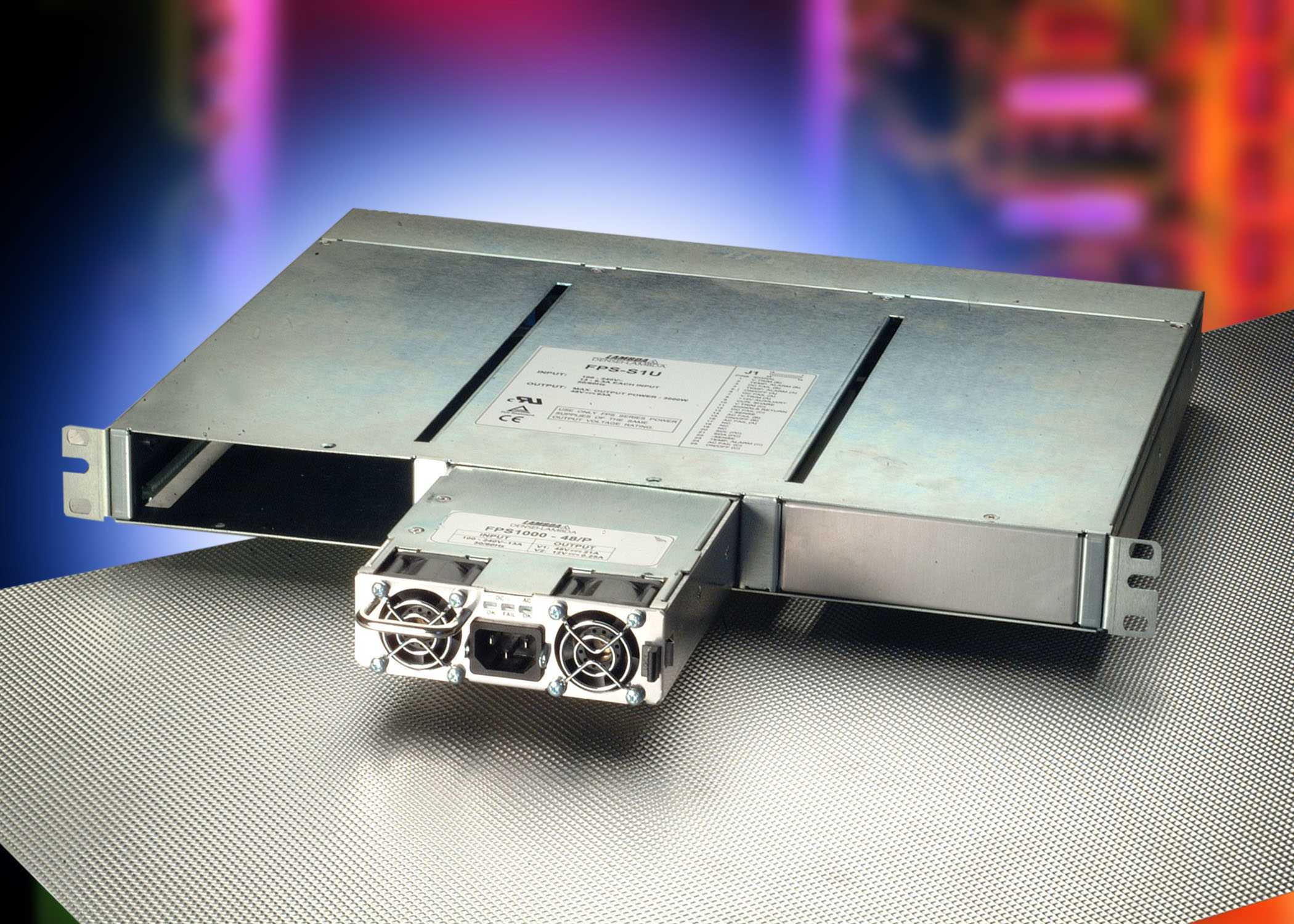

These rugged 1000W, hot-swap power supplies are available in 12V, 24V, 32V and 48V outputs and accept a wide 85 to 265Vac input. Up to three units can be plugged into the optional 1U high, 19"" rack assemblies, which are configured in either a single output, or as three individual, isolated outputs. An I2C interface and/or front entry AC are available as standard options. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
|
Ürün Listesi |
AC Giriş Arka Panel Modeller
|
Çıkış Gücü |
Çıkış Volt/Akım |
Çıkış Aralığı
|
Construction |
Datasheet |
FPS-S1U |
Rack (3 slot), contains two blanking panels |
1U Rack |
|
FPS-T1U |
Rack with 3 individual outputs (floating) |
1U Rack |
|
FPS-1000-12 |
|
12V / 72A |
10.5 - 13.2V |
|
|
FPS-1000-12/S |
|
12V / 72A |
10.5 - 13.2V |
|
|
FPS-1000-24 |
960W |
24V / 40A |
21.5 - 29V |
|
|
FPS-1000-24/S |
960W |
24V / 40A |
21.5 - 29V |
|
|
FPS-1000-32 |
992W |
32V / 31A |
28.8 - 38.4V |
|
|
FPS-1000-32/S |
992W |
32V / 31A |
28.8 - 38.4V |
|
|
FPS-1000-48 |
1008W |
48V / 21A |
43 - 58V
|
|
|
FPS-1000-48/S |
1008W |
48V / 21A |
43 - 58V
|
|
|
| |
AC Giriş Ön Panel Modeller
|
Çıkış Gücü |
Çıkış Volt/Akım |
Çıkış Aralığı
|
Construction |
Datasheet |
FPS-S1U/P |
Rack (3 slot), contains two blanking panels |
1U Rack |
|
FPS-T1U/P |
Rack with 3 individual outputs (floating) |
1U Rack |
|
FPS-1000-12/P |
|
12V / 72A |
10.5 - 13.2V |
|
|
FPS-1000-12/PS |
|
12V / 72A |
10.5 - 13.2V |
|
|
FPS-1000-24/P |
960W |
24V / 40A |
21.5 - 29V |
|
|
FPS-1000-24/PS |
960W |
24V / 40A |
21.5 - 29V |
|
|
FPS-1000-32/P |
992W |
32V / 31A |
28.8 - 38.4V |
|
|
FPS-1000-32/PS |
992W |
32V / 31A |
28.8 - 38.4V |
|
|
FPS-1000-48/P |
1008W |
48V / 21A |
43 - 58V
|
|
|
FPS-1000-48/PS |
1008W |
48V / 21A |
43 - 58V
|
|
|
|
|
|
|
| |
|
Opsiyonlar |
Suffix |
Description |
/POE* |
1500VAC Output to Ground Isolation (output noise 400mV) |
*FPS100048 only |
|
|
|
| |
|
|
