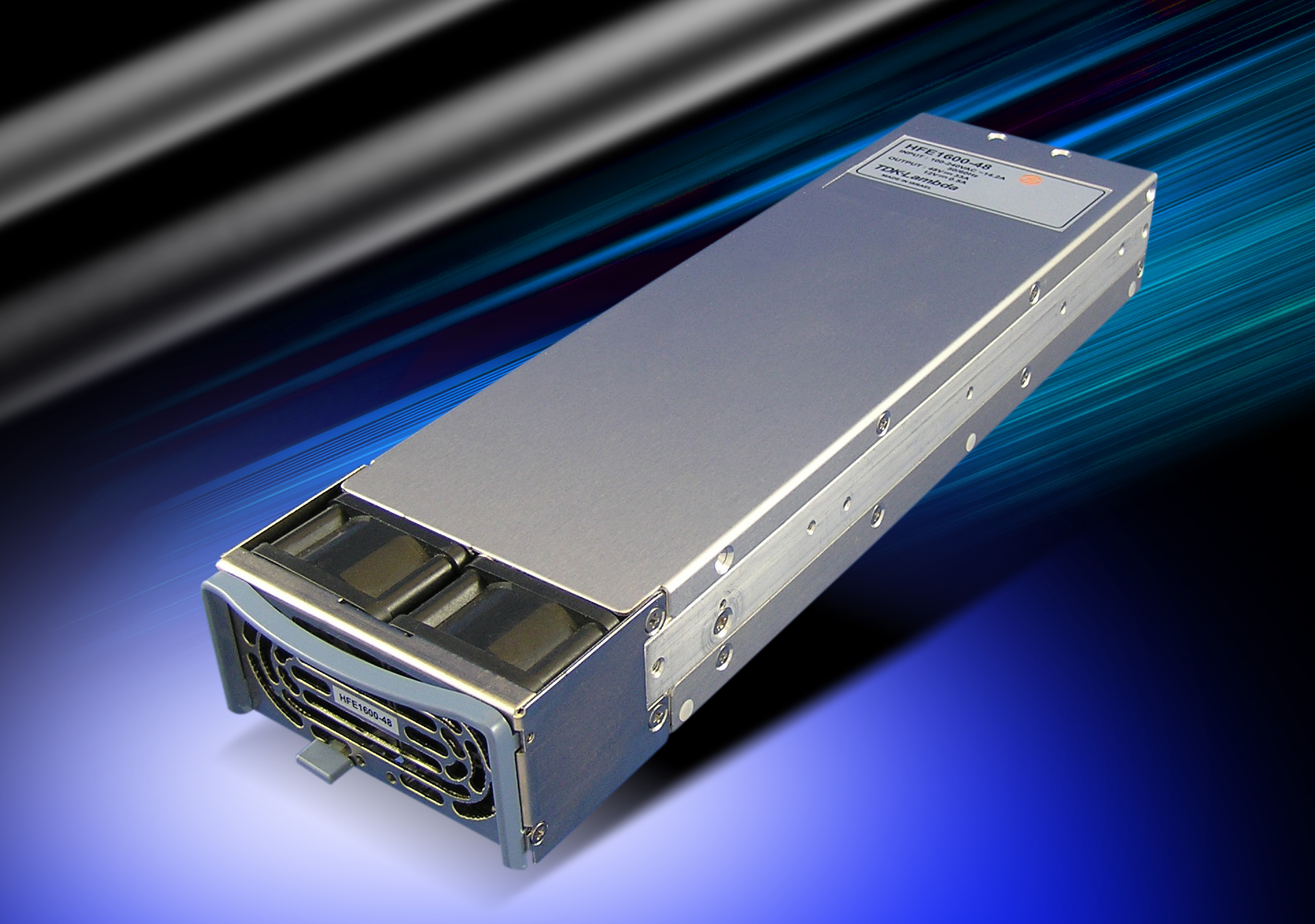

HFE Serisi 1600-2500W 1U Hot Swap Front End AC-DC Güç Kaynağı




Giriş çalışma 85-265VAC, 47-63Hz
12V, 24V, 32V ve 48VDC çıkış
1600W ve 2500W çıkış gücü
Up to 10kW in 1U rack (4X2500W)
Internal ORing MOSFET & Current Share
PMBus TM (I2 C) and LAN options)
Climate Savers Computing efficiency standards
Çalışma sıcaklığı -10°C ile 60°C
Single & Dual Output 1U Racks
Status monitoring signals
Overcurrent Protection 105 - 120%
Overvoltage Protection 110% (Tracking). Cycle AC to reset or utilize Remote On/Off
Remote On/Off Unit ON: 0 - 0.6V or short, OFF: 2 - 15V or open circuit
Parallel Operation Yes, single wire current share, 90% accuracy, up to 10 units

Uygulama Alanları


Açıklama

Developed as a standard series of high efficiency, hot-swap front end power supplies, the HFE is available in two power levels, 1600W and 2500W, and with output voltages of 12, 24, 32 and 48V. A number of 1U 19"" racks are available; a 5 slot version accepting HFE1600 modules, a 4 slot taking HFE2500 modules, plus a choice of IEC320 C20 sockets or screw terminals for the AC input. PMbus™ communication interface and LAN options can also be requested.


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi 1600W
1600W Modeller
Çıkış Gücü
Çıkış Volt/Akım
Çıkış Aralığı
Construction
Datasheet
HFE1600-12
1596W
12V / 133A
9.6 - 13.2V
Enclosed
HFE1600-12/S
1596W
12V / 133A
9.6 - 13.2V
Enclosed
HFE1600-24
1608W
24V / 67A
19.2 - 29V
Enclosed
HFE1600-24/S
1608W
24V / 67A
19.2 - 29V
Enclosed
HFE1600-32
1504W
32V / 47A
25.6 - 38.4V
Enclosed
HFE1600-32/S
1504W
32V / 47A
25.6 - 38.4V
Enclosed
HFE-1600-48
1584W
48V / 33A
38.4 - 58V
Enclosed
HFE-1600-48/S
1584W
48V / 33A
38.4 - 58V
Enclosed

Rack and Accessories 1600W
Model
Açıklama

Max. Rack Akımı
HFE1600-S1U
Five slot 19" rack, IEC320 input connectors (5)
266A per side (532A total)
HFE1600-S1U-TB
Five slot 19" rack, Terminal Block input connectors (5)
266A per side (532A total)
HFE1600/BP
One slot blanking panel, four provided with each rack
HFE1600-D1U
Four slot (two isolated pairs), dual output 19" rack, IEC320 input connectors (4)
266A per side
HFE1600-D1U-TB
Four slot (two isolated pairs), dual output 19" rack, Terminal Block input connectors (4)
266A per side
HFE1600-LAN
Plug in LAN module. Takes up one rack slot. For use with /S models only

Ürün Listesi 2500W
2500W Modeller
Çıkış Gücü
Çıkış Volt/Akım
Çıkış Aralığı
Construction
Datasheet
HFE2500-12
2400W
12V / 200A
9.6 - 13.2V
Enclosed
HFE2500-12/S
2400W
12V / 200A
9.6 - 13.2V
Enclosed
HFE2500-24
2496W
24V / 104A
19.2 - 29V
Enclosed
HFE2500-24/S
2496W
24V / 104A
19.2 - 29V
Enclosed
HFE-1600-48
2496W
48V / 52A
38.4 - 58V
Enclosed
HFE-1600-48/S
2496W
48V / 52A
38.4 - 58V
Enclosed

Rack and Accessories 2500W
Model
Açıklama

Max. Rack Akımı
HFE2500-S1U
Four slot 19" rack, IEC320-C20 input connector
320A each side (640A total)
HFE2500-S1U-TB
Four slot 19" rack, Terminal Block input connector
320A each side (640A total)
HFE2500/BP
One slot blanking panel, two provided with each rack
HFE2500-LAN
Plug in LAN module. Takes up one rack slot. For use with /S models only
