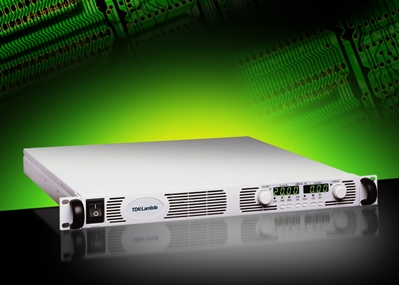

GENESYS Serisi 1U 19'' Rack 750,1500,2400W Programlanabilir DC Güç Kaynakları




Wide Range Input (85-265Vac Continuous, Single Phase, 47-63Hz)
Active Power Factor Correction (0.99 typical)
High Power Density: 2400W in 1U
Output Voltage up to 600V, Current up to 300A
Built-in RS-232/RS-485 Interface Standard
Front Panel Lockout
Last-Setting Memory
High Resolution 16 bit ADCs & DACs
Reliable Encoders for Voltage and Current Adjustment
Constant Voltage/Constant Current auto-crossover
Advanced Parallel reports total current up to four identical units
Global Commands for Serial RS-232/RS-485 Interface
Independent Remote ON/OFF and Remote Enable/Disable
Independent Remote ON/OFF and Remote Enable/Disable
Compact and lightweight package which allows easy installation and space saving in the application equipment.
High density stacking - no ventilation holes on the top and bottom surface of the power supply.
External Analog Programming and Monitoring
Reliable Modular and SMT Design
19" Rack Mounted ATE benchtop and OEM applications
Optional Interfaces;
-
Isolated Analog Programming and Monitoring, Interface (0-5V/0-10V & 4-20mA)
-
IEEE 488.2 SCPI (GPIB) Multi-Drop
-
Compliant LAN
LabView® and LabWindows® driverS
Worldwide Safety Agency Approvals; CE Mark for LVD and EMC Regulation
Uygulama Alanları


Açıklama
The Genesys™ 1U series can supply power ratings up to 2400W, the highest power density available in a 1U rack size. It offers voltages of up to 600V and currents of up to 300A. Multiple remote programming methods are available including built-in RS232 & RS485 and optional LAN, GPIB & isolated analogue interfaces. The units can operate in either constant current or constant voltage mode and accepts either a single-phase 230Vac or 3-phase 208Vac input. The product is backed with a five year warranty.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Data Sheet
GEN6-100
600W
0 - 6V
0 - 100A
1U Rack
GEN6-200
1200W
0 - 6V
0 - 200A
1U Rack
GEN8-90
720W
0- 8V
0 - 90A
1U Rack
GEN8-180
1440W
0 - 8V
0 - 180A
1U Rack
GEN8-300
2400W
0 - 8V
0 - 300A
1U Rack
GEN10-240
2400W
0 - 10V
0 - 240A
1U Rack
GEN12.5-60
750W
0 - 12.5V
0 - 60A
1U Rack
GEN12.5-120
1500W
0 - 12.5V
0 - 120A
1U Rack
GEN16-150
2250W
0 - 15V
0 - 150A
1U Rack
GEN20-38
760W
0 - 20V
0 - 38A
1U Rack
GEN20-76
1520W
0 - 20V
0 - 76A
1U Rack
GEN20-120
2400W
0 - 20V
0 - 120A
1U Rack
GEN30-25
750W
0 - 30V
0 - 25A
1U Rack
GEN30-50
1500W
0 - 30V
0 - 50A
1U Rack
GEN30-80
2400W
0 - 30V
0 - 80A
1U Rack
GEN40-19
760W
0 - 40V
0 - 19A
1U Rack
GEN40-38
1520W
0 - 40V
0 - 38A
1U Rack
GEN40-60
2400W
0 - 40V
0 - 60A
1U Rack
GEN50-30
1500W
0 - 50V
0 - 30A
1U Rack
GEN60-12.5
750W
0 - 60V
0 - 12.5A
1U Rack
GEN60-25
1500W
0 - 60V
0 - 25A
1U Rack
GEN60-40
2400W
0 - 60V
0 - 40A
1U Rack
GEN80-9.5
760W
0 - 80V
0 - 9.5A
1U Rack
GEN80-19
1520W
0 - 80V
0 - 19A
1U Rack
GEN80-30
2400W
0 - 80V
0 - 30A
1U Rack
GEN100-7.5
750W
0 - 100V
0 - 7.5A
Enclosed
GEN100-15
1500W
0 - 100V
0 - 15A
Enclosed
GEN100-24
2400W
0 - 100V
0 - 24A
1U Rack
GEN150-5
750W
0 - 150V
0 - 5A
1U Rack
GEN150-10
1500W
0 - 150V
0 - 10A
1U Rack
GEN150-16
2400W
0 - 150V
0 - 16A
1U Rack
GEN300-2.5
750W
0 - 300V
0 - 2.5A
1U Rack
GEN300-5
1500W
0 - 300V
0 - 5A
1U Rack
GEN300-8
2400W
0 - 300V
0 - 8A
1U Rack
GEN600-1.3
780W
0 - 600V
0 - 1.3A
1U Rack
GEN600-2.6
1560W
0 - 600V
0 - 2.6A
1U Rack
GEN600-4
2400W
0 - 600V
0 - 4A
1U Rack


Factory Option
Part Number
RS-232/RS-485 Interface built-in Standart
-
GBIP Interface
IEEE
Voltage Programming Isolated Analog Interface
IS510
Current Programming Isolated Analog Interface
IS420
LAN Interface (Complies with ClassC)
LAN

Accessories
Part Number
Communication Cable RS485
GEN/485-9
Communication Cable RS232 (DB-9F)
GEN/232-9
Communication Cable RS232 (DB-25F)
GEN/232-25
Serial Link Cable (included)
GEN/RJ45
