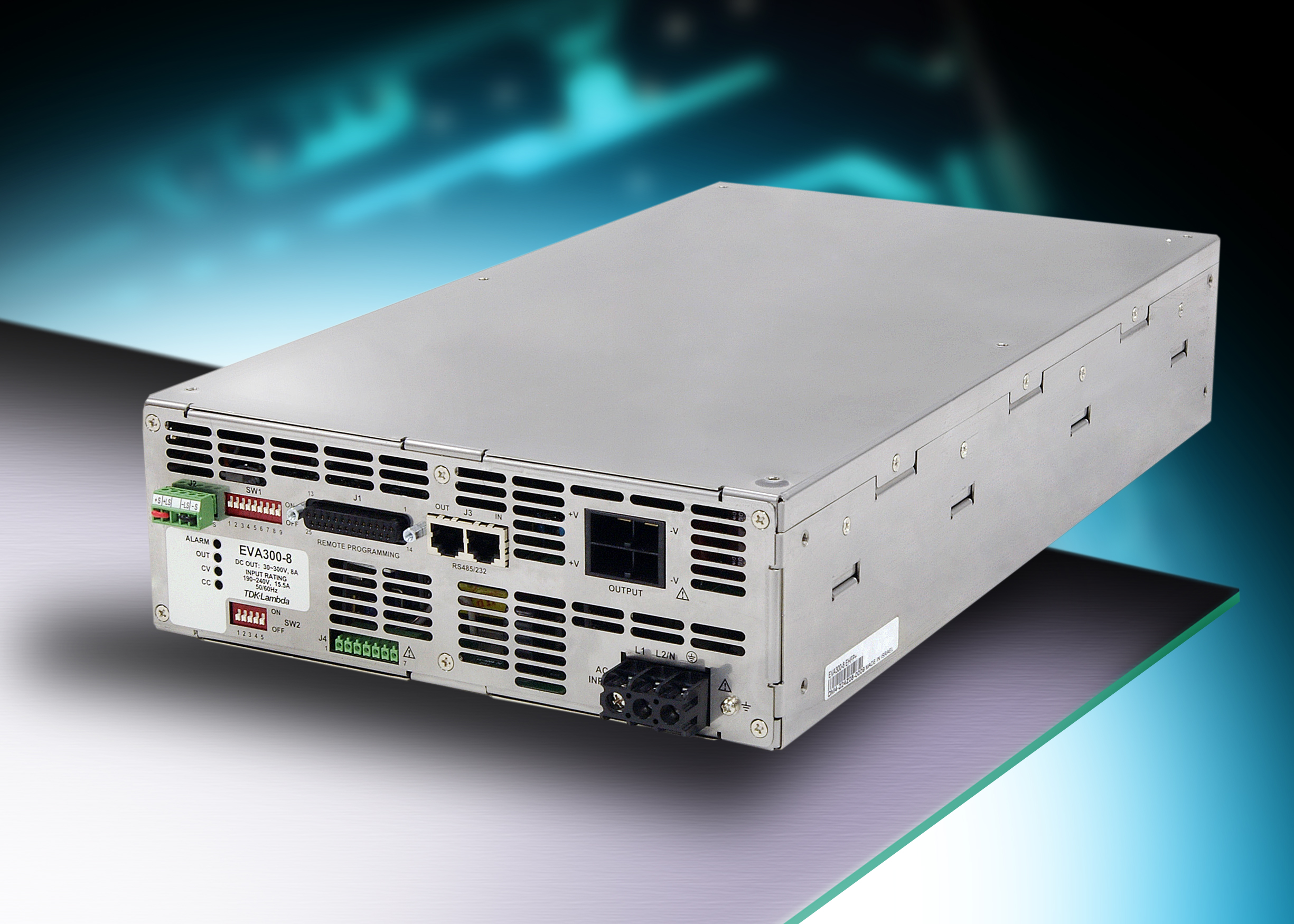

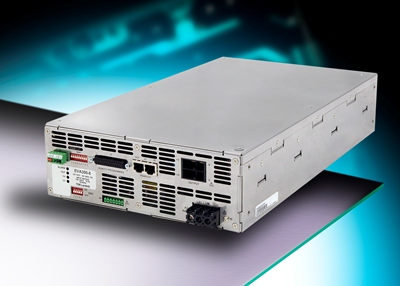

EVA Serisi 2.4kW Programlanabilir Ayarlı Tek Kanal DC Güç Kaynakları




Giriş çalışma aralığı (170 ~ 265 Vac / 47 ~ 63Hz)
Active Power Factor Correction (PFC)
2U size with 2400W output power
Ayarlı Gerilim Kaynağı veya Akım Kaynağı olarak kullanılabilir
Mikroişlemci kontrollü
RS-232 / RS-485& analogue programming interfaces (Standart)
High accuracy programming / readback-16 bit
Software calibration (no internal trimmers / potentiometers)
Last setting memory
Output voltage and current setting and monitoring function with analog signal control
Independent remote ON/OFF (SO:Shut-Out) and Enable/Disable. (Isolated from the output with opto-coupler)
Parellel operation (Master/Slave) with active current sharing
Couling fan speed control for low noise and extended fan life
Compact and lightweight package which allows easy installation and space saving in the application equipment
High density stacking - no ventilation holes on the top and bottom surface of the power supply
Uygulama Alanları


Açıklama
EVA2400 models can be programmed via the built-in RS232/485 and analogue interfaces, with a PC based GUI included. Models are available with output voltage ratings of 15-150, 30-300 and 60-600V with corresponding output current adjustment ranges of 0-16, 0-8 and 0-4A to achieve a 2.4kW output power. The 2U high system can operate in either constant current or constant voltage modes and accepts a 170-265Vac single phase input.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Gerilimi
Çıkış Akımı
Construction
Data Sheet
EVA-150-16-A
2400W
0 - 150V
0 - 16A
Enclosed
EVA-300-8-A
2400W
0 - 300V
0 - 8A
Enclosed
EVA-600-4-A
2400W
0 - 600V
0 - 4A
Enclosed
Accessories
Part Number
Serial Link Cable (included)
GEN/RJ45
Communication Cable RS485
GEN/485-9
Communication Cable RS232
GEN/232-9
