Output Power 200W/400W/600W/800W |
|
Universal Input Voltage 85-265Vac, continuous operation |
|
Active Power Factor Correction: %99 |
|
Constant Voltage / Constant Current |
|
Output Voltage up to 120V, Current up to 132A |
|
Built-in RS232 and RS485 interface |
|
Embedded Microprocessor Controller |
|
Digital Encoder Knob |
|
Software Calibration |
|
Last Setting Memory |
|
Parallel Operation (Master/Slave) Active Current Sharing, |
|
External Voltage or Resistance or Programming |
|
19” Rack Mount Capability for ATE and OEM applications |
|
Worldwide Safety Agency Approvals; CE Mark for LVD and EMC regulations |
|
|
|
| |
|
Açıklama |
Suitable for bench or 3U rack mounting, the ZUP is a programmable power supply offering power levels from 200 to 800W, voltages of up to 120V and currents of up to 132A. Remote programming methods include built-in RS232 & RS485. The units can operate in either constant current or constant voltage mode and accepts a wide 85-265Vac input. The product is backed with a three year warranty. See also our new Z+ series 200W - 800W 2U programmable power supplies |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
|
Ürün Listesi |
Model Adı |
Çıkış Gücü |
Çıkış Gerilimi
|
Çıkış Akımı |
Construction |
Datasheet |
|
|
198W |
0 - 6VDC |
0 - 33A |
Rack/bench mount |
|
|
396W |
0 - 6VDC |
0 - 66A |
Rack/bench mount |
|
|
792W |
0 - 6VDC |
0 - 132A |
Rack/bench mount |
|
|
200W |
0 - 10VDC |
0 - 20A |
Rack/bench mount |
|
ZUP10-40 |
400W |
0 - 10VDC |
0 - 40A |
Rack/bench mount |
|
|
800W |
0 - 10VDC |
0 - 80A |
Rack/bench mount |
|
ZUP20-10 |
200W |
0 - 20VDC |
0 - 10A |
Rack/bench mount |
|
ZUP20-20 |
400W |
0 - 20VDC |
0 - 20A |
Rack/bench mount |
|
ZUP20-40 |
800W |
0 - 20VDC |
0 - 40A |
Rack/bench mount |
|
ZUP36-6 |
216W |
0 - 36VDC |
0 - 6A |
Rack/bench mount |
|
ZUP36-12 |
432W |
0 - 36VDC |
0 - 12A |
Rack/bench mount |
|
ZUP36-24 |
864W |
0 - 36VDC |
0 - 24A |
Rack/bench mount |
|
ZUP60-3.5 |
210W |
0 - 60VDC |
0 - 3.5A |
Rack/bench mount |
|
ZUP60-7 |
420W |
0 - 60VDC |
0 - 7A |
Rack/bench mount |
|
ZUP60-14 |
840W |
0 - 60VDC |
0 - 14A |
Rack/bench mount |
|
ZUP80-2.5 |
200W |
0 - 80VDC |
0 - 2.5A |
Rack/bench mount |
|
ZUP80-5 |
400W |
0 - 80VDC |
0 - 5A |
Rack/bench mount |
|
ZUP120-1.8 |
216W |
0 - 120VDC |
0 - 1.8A |
Rack/bench mount |
|
ZUP120-3.6 |
432W |
0 - 120VDC |
0 - 3.6A |
Rack/bench mount |
|
|
|
|
| |
| |
| |

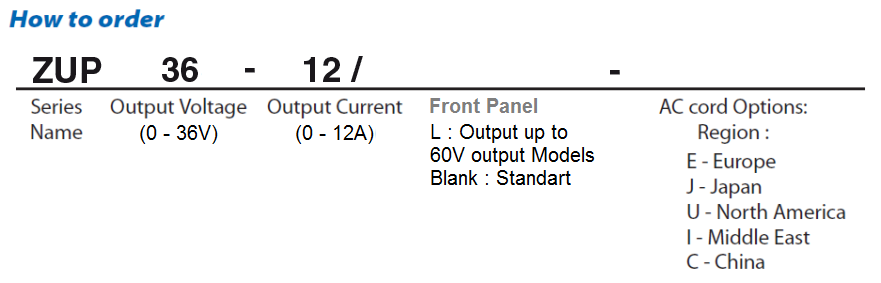

Factory Option |
Part Number |
Front panel output jaks (Up to output models) |
|
ZUP Assemblies (Dual output packing 200W/400W) |
|
Up to 6 units acn be assembled into 19'' 3U rack kit |
NL100 |
Blanking panels for NL100 (19 in. rack) |
NL100 |
Front panel insulated output sockets (Ø 4mm) for modules up to 650V or 5A Max |
L2 |
GPIB Controller |
GP/485/A |
|
| |
Accessories |
Part Number |
Communication Cable RS-232 (DB-9F) |
ZUP/NC401 |
Communication Cable RS-232 (DB-25F) |
ZUP/NC403 |
Communication Cable RS-485 (DB-9F) |
ZUP/NC402 |
Communication Cable RS-485 (DB-25F) |
ZUP/NC404 |
ZUP seial link cable (RJ-45) |
ZUP/W |
|
| |
|
