CN-A Serisi 30-200W 110VDC Input Quarter Brick DC-DC Converters

Genel Özellikler :
60 - 160VDC girişli
14.4 - 36VDC girişli
5, 12, 15 ve 24VDC çıkışlı
Full power at 100°C baseplate
30-200W Single Output
5 yıl garantili
IEC 61373 Shock and Vibration
Base plate cooled



Featuring either 60 - 160Vdc or 14.4 - 36Vdc inputs, the CN-A meets the stringent shock and vibration requirements of IEC61373, as well as the Japanese equivalent standard JIS E 4031. A coating option allow the products to meet EN50155. Full power operation on all the converters is guaranteed across a -40 to +100°C baseplate temperature. All models, except the half brick 200W, have a quarter brick footprint and will withstand a 3kVac isolation voltage.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi
Model Adı
Giriş Volt
Çıkış Volt/Akım
Çıkış Gücü
Construction
Data Sheet
CN30A110-5
60 - 160V
5V / 6A
30W
Quarter Brick
CN50A110-5
60 - 160V
5V / 10A
50W
Quarter Brick
CN50A24-5
14.4 - 36VDC
5V / 10A
50W
Quarter Brick
CN100A110-5
60 - 160V
5V / 20A
100W
Quarter Brick
CN100A24-5
14.4 - 36VDC
5V / 20A
100W
Quarter Brick
CN200A110-5
60 - 160V
5V / 40A
200W
Half Brick
CN30A110-12
60 - 160V
12V / 2.5A
30W
Quarter Brick
CN50A110-12
60 - 160V
12V / 4.2A
50.4W
Quarter Brick
CN50A24-12
14.4 - 36VDC
12V / 4.2A
50.4W
Quarter Brick
CN100A110-12
60 - 160V
12V / 8.4A
100.8W
Quarter Brick
CN100A24-12
14.4 - 36VDC
12V / 8.4A
100.8W
Quarter Brick
CN200A110-12
60 - 160V
12V / 16.7A
200W
Half Brick
CN30A110-15
60 - 160V
15V / 2A
30W
Quarter Brick
CN50A110-15
60 - 160V
15V / 3.4A
51W
Quarter Brick
CN100A110-15
60 - 160V
15V / 6.7A
100.5W
Quarter Brick
CN200A110-15
60 - 160V
15V / 13.4A
200W
Half Brick
CN30A110-24
60 - 160V
24V / 1.3A
31.2W
Quarter Brick
CN50A110-24
60 - 160V
24V / 2.1A
50.4W
Quarter Brick

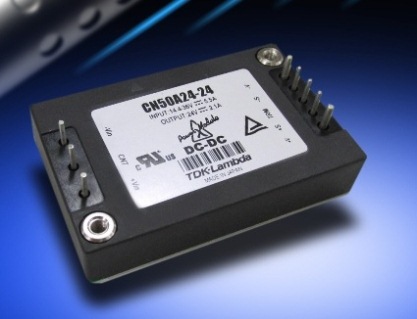

CN50A24-24
14.4 - 36VDC
24V / 2.1A
50.4W
Quarter Brick
CN100A110-24
60 - 160V
24V / 4.2A
100.8W
Quarter Brick
CN100A24-24
14.4 - 36VDC
24V / 4.2A
100.8W
Quarter Brick
CN200A110-24
60 - 160V
24V / 8.4A
200W
Half Brick
