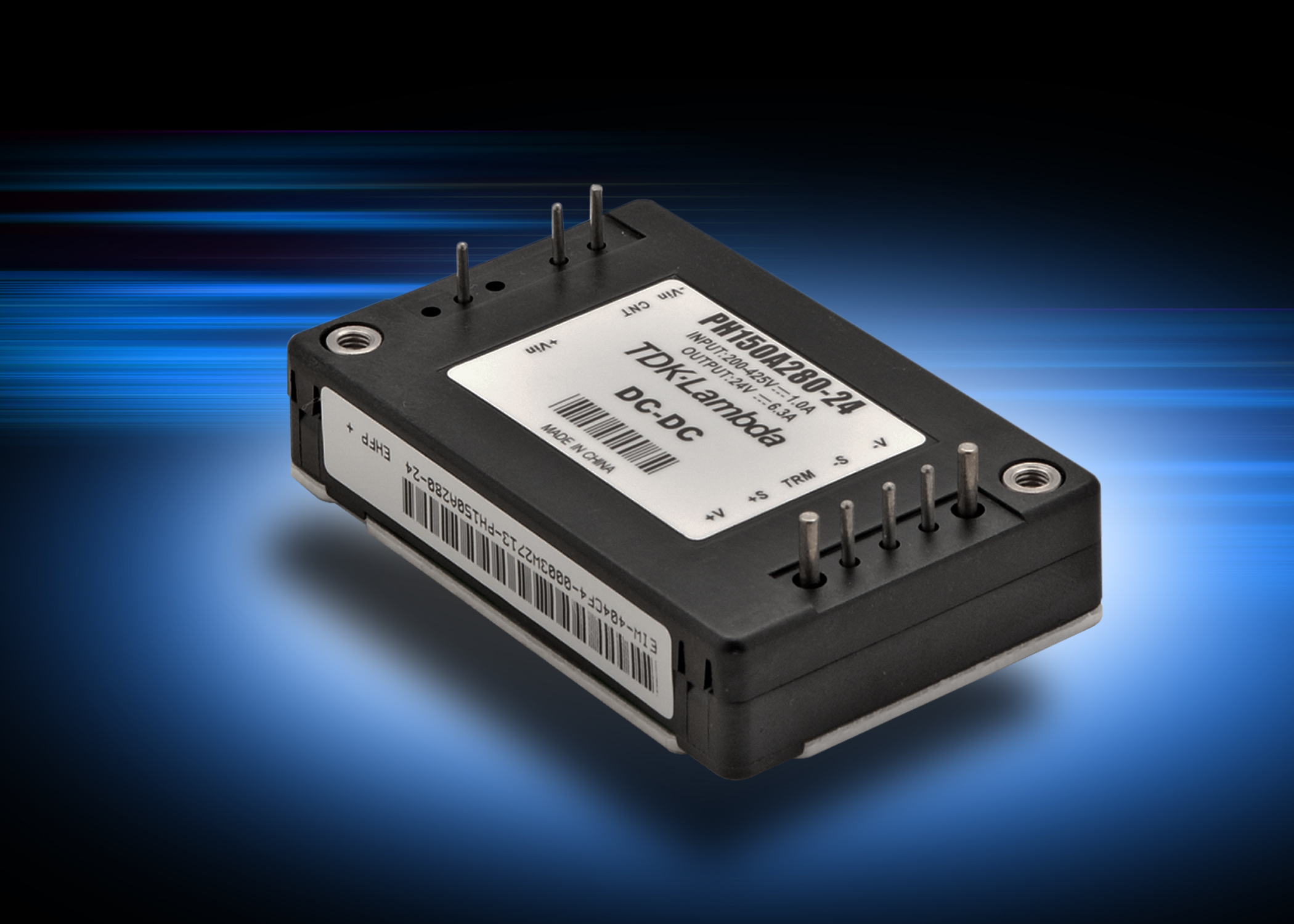

PH-A 280 Serisi 50W-150W High Density Power Modules DC-DC Konvertör

Genel Özellikler :
Input voltage range 200 to 425 Vdc
Output voltage 3.3, 5, 12, 24, 28 48Vdc
Output power 50, 75, 100, 150W
Fixed Operating Frequency
High Efficiency
High Density
Smaller Package Size
Cover HVDC Telecom Requirements



The second generation PH-A power modules feature higher efficiencies and smaller sizes than the previous PH series. These conduction cooled units accept a wide 200V to 425Vdc input, making them suitable for the emerging 380Vdc power architecture, which is used in datacentres and telecommunications facilities, where the use of higher voltage helps to reduce losses.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi
Model Adı
Çıkış Gücü
Giriş Volt
Çıkış Volt/Akım
Construction
Datasheet
PH75A280-3.3
49.5
200 - 425
3.3V / 15A
Quarter Brick
PH100A280-3.3
66
200 - 425
3.3V / 20A
Quarter Brick
PH50A280-5
50
200 - 425
5V / 10A
Quarter Brick
PH75A280-5
75
200 - 425
5V / 15A
Quarter Brick
PH100A280-5
100
200 - 425
5V / 20A
Quarter Brick
PH50A280-12
50.4
200 - 425
12V / 4.2A
Quarter Brick
PH75A280-12
75.6
200 - 425
12V / 6.3A
Quarter Brick
PH100A280-12
100.8
200 - 425
12V / 8.4A
Quarter Brick
PH75A280-15
75
200 - 425
15V / 5A
Quarter Brick
PH150A280-15
150
200 - 425
15V / 10A
Quarter Brick
PH50A280-24
50.4
200 - 425
24V / 2.1A
Quarter Brick
PH75A280-24
76.8
200 - 425
24V / 3.2A
Quarter Brick
PH100A280-24
100.8
200 - 425
24V / 4.2A
Quarter Brick
PH150A280-24
151.2
200 - 425
24V / 6.3A
Quarter Brick
PH75A280-28
75.6
200 - 425
28V / 2.7A
Quarter Brick
PH150A280-28
151.2
200 - 425
28V / 5.4A
Quarter Brick
PH50A280-48
52.8
200 - 425
48V / 1.1A
Quarter Brick
PH75A280-48
76.8
200 - 425
48V / 1.6A
Quarter Brick
PH100A280-48
100.8
200 - 425
48V / 2.1A
Quarter Brick
PH150A280-12
150
200 - 425
48V / 2.1A
Quarter Brick
PH150A280-48
153.6
200 - 425
48V / 3.2A
Quarter Brick
