PAH Serisi 29W-451W Isolated PCB mount DC-DC Konvertör |
|
 |
|
|
|
|
Industry Standard Footprint & Pinouts |
|
12V output for driving non-isolated converters |
|
Safety Approved |
|
Full power at +100ºC baseplate |
|
Wide Adjustable Output Range |
|
|
|
|
| |
|
|
| |
|
|
|
|
| |

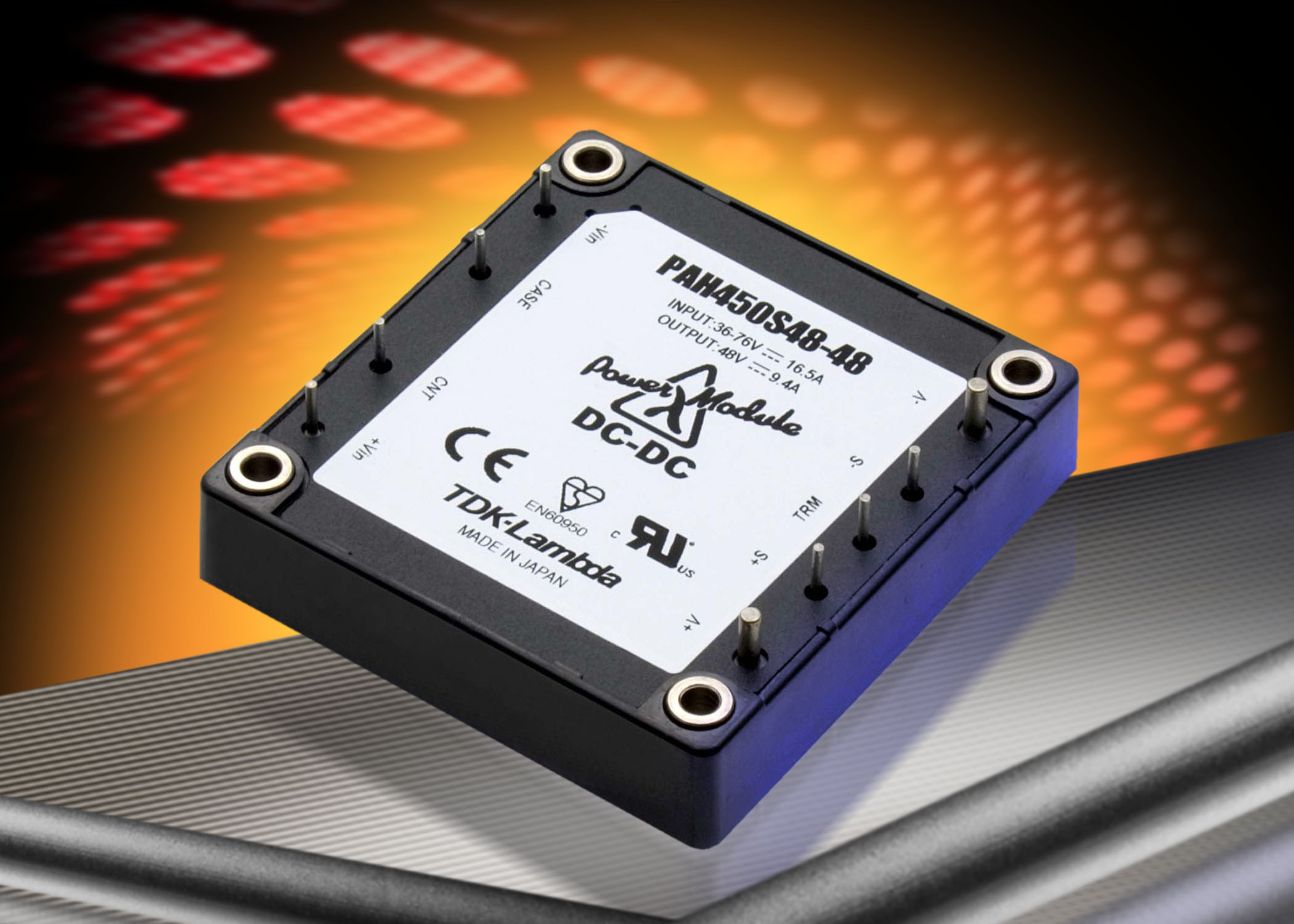

| In the industry standard half brick footprint, the conservatively rated PAH series of 29W to 451W DC-DC converters are available with output voltages of 2.5V to 48V. This large series of regulated power modules features wide input ranges with both 24V and 48V nominal inputs, remote sense, output adjustment and remote on/off. |
| |
Teknik Broşür, Manuel ve Dosyalar |
Benzer Ürünler |
|
|
|
| |
|
Ürün Listesi |
Model Adı |
Çıkış Gücü |
Giriş Volt |
Çıkış Volt/Akım
|
Construction |
Datasheet |
PAH-75D |
PAH75D-24-3325 |
75 |
18 - 36 |
3.3V / 15A
2.5V / 15A
|
Half Brick |
|
PAH75D-24-5033 |
75 |
18 - 36 |
5V / 15A
3.3V / 15A
|
Half Brick |
|
PAH75D-48-2518 |
75 |
36 - 76 |
2.5V / 15A
1.8V / 15A
|
Half Brick |
|
PAH75D-48-3318 |
75 |
36 - 76 |
3.3V / 15A
1.8V / 15A
|
Half Brick |
|
PAH75D-48-3325 |
75 |
36 - 76 |
3.3V / 15A
2.5V / 15A
|
Half Brick |
|
PAH75D-48-5033 |
75 |
36 - 76 |
5V / 15A
3.3V / 15A
|
Half Brick |
|
PAH-50/200S-48 |
PAH50S-48-2.5 |
29.25 |
36 - 76 |
2.5V / 11.7A
|
Half Brick |
|
PAH50S-48-3.3 |
38.61 |
36 - 76 |
3.3V / 11.7A
|
Half Brick |
|
PAH50S-48-5 |
50 |
36 - 76 |
5V / 10A
|
Half Brick |
|
PAH50S-48-12 |
50.4 |
36 - 76 |
12V / 4.2A
|
Half Brick |
|
PAH50S-48-15 |
51 |
36 - 76 |
15V / 3.4A
|
Half Brick |
|
PAH50S-48-24 |
50.4 |
36 - 76 |
24V / 2.1A
|
Half Brick |
|
PAH50S-48-28 |
50.4 |
36 - 76 |
28V / 1.8A
|
Half Brick |
|
PAH75S-48-2.5 |
43.75 |
36 - 76 |
2.5V / 17.5A
|
Half Brick |
|
PAH75S-48-3.3 |
57.75 |
36 - 76 |
3.3V / 17.5A
|
Half Brick |
|
PAH75S-48-5 |
75 |
36 - 76 |
5V / 15A
|
Half Brick |
|
PAH75S-48-12 |
75.6 |
36 - 76 |
12V / 6.3A
|
Half Brick |
|
PAH75S-48-15 |
75 |
36 - 76 |
15V / 5A
|
Half Brick |
|
PAH75S-48-24 |
76.8 |
36 - 76 |
24V / 3.2A
|
Half Brick |
|
PAH75S-48-28 |
75.6 |
36 - 76 |
28V / 2.7A
|
Half Brick |
|
PAH100S-48-2.5 |
58.5 |
36 - 76 |
2.5V / 23.4A
|
Half Brick |
|
PAH100S-48-3.3 |
77.22 |
36 - 76 |
3.3V / 23.4A
|
Half Brick |
|
PAH100S-48-5 |
100 |
36 - 76 |
5V / 20A
|
Half Brick |
|
PAH100S-48-12 |
100.8 |
36 - 76 |
12V / 8.4A
|
Half Brick |
|
PAH100S-48-15 |
100.5 |
36 - 76 |
15V / 6.7A
|
Half Brick |
|
PAH100S-48-24 |
100.8 |
36 - 76 |
24V / 4.2A
|
Half Brick |
|
PAH100S-48-28 |
100.8 |
36 - 76 |
28V / 3.6A
|
Half Brick |
|
PAH150S-48-2.5 |
87.5 |
36 - 76 |
2.5V / 35A
|
Half Brick |
|
PAH150S-48-3.3 |
115.5 |
36 - 76 |
3.3V / 35A
|
Half Brick |
|
PAH150S-48-5 |
150 |
36 - 76 |
5V / 30A
|
Half Brick |
|
PAH150S-48-12 |
150 |
36 - 76 |
12V / 12.5A
|
Half Brick |
|
PAH150S-48-15 |
150 |
36 - 76 |
15V / 10A
|
Half Brick |
|
PAH150S-48-24 |
151.2 |
36 - 76 |
24V / 6.3A
|
Half Brick |
|
PAH150S-48-28 |
151.2 |
36 - 76 |
28V / 5.4A
|
Half Brick |
|
PAH200S-48-12 |
200.4 |
36 - 76 |
12V / 16.7A
|
Half Brick |
|
PAH200S-48-15 |
201 |
36 - 76 |
15V / 13.4A
|
Half Brick |
|
PAH200S-48-24 |
201.6 |
36 - 76 |
24V / 8.4A
|
Half Brick |
|
PAH200S-48-28 |
201.6 |
36 - 76 |
28V / 7.2A
|
Half Brick |
|
PAH-200H |
PAH200H-48-1R2 |
84 |
36 - 76 |
1.2V / 70A |
Half Brick |
|
PAH200H-48-1R5 |
105 |
36 - 76 |
1.5V / 70A
|
Half Brick |
|
PAH200H-48-1R8 |
126 |
36 - 76 |
1.8V / 70A
|
Half Brick |
|
PAH200H-48-2R5 |
175 |
36 - 76 |
2.5V / 70A
|
Half Brick |
|
PAH200H-48-3R3 |
198 |
36 - 76 |
3.3V / 60A
|
Half Brick |
|
PAH-300-350-450 |
PAH300S-24-12 |
300 |
18 - 36 |
12V / 25A
|
Half Brick |
|
PAH300S-48-12 |
300 |
36 - 76 |
12V / 25A
|
Half Brick |
|
PAH350S-48-12 |
350.4 |
36 - 76 |
12V / 29.2A
|
Half Brick |
|
PAH300S-24-28 |
308 |
18 - 36 |
28V / 11A
|
Half Brick |
|
PAH300S-48-28 |
308 |
36 - 76 |
28V / 11A
|
Half Brick |
|
PAH350S-48-28 |
350 |
36 - 76 |
28V / 12.5A
|
Half Brick |
|
PAH350S-24-28 |
350 |
18 - 36 |
28V / 12.5A
|
Half Brick |
|
PAH450S-48-28 |
448 |
36 - 76 |
28V / 16A
|
Half Brick |
|
PAH350S-24-48 |
350 |
18 - 36 |
48V / 7.3A
|
Half Brick |
|
PAH450S-48-48 |
451.2 |
36 - 76 |
48V / 9.4A
|
Half Brick |
|
|
|
|
|
| |
| |
|
