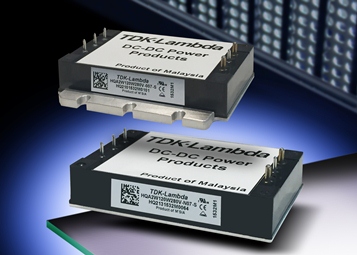

HQA Serisi 120W Harsh Environment Quarter Brick DC-DC Konvertör

Genel Özellikler :
Standard Quarter Brick Footprint
9-40, 18-40VDC Inputs
Up to 91.5% Efficiency
Up to 115°C Baseplate Temperatures
Rugged Package with Encapsulation
No Optocouplers Used
Enhanced Screening Option




The HQA120 series of encapsulated DC-DC converters are packaged in a ruggedised quarter brick form factor and can deliver 120W output power. The HQA120 operates over a 9V to 40V input range (50V for 1 second).   These 89% efficient converters are suitable for use in COTS, communications and industrial equipment.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi
Model Adı
Çıkış Gücü
Giriş Volt
Çıkış Volt/Akım
Construction
Data Sheet
HQA2W120W120V-007-S
120
9 - 40V
12V / 10A
Enclosed pcb mount
HQA2W120W240V-007-S
120
9 - 40V
24V / 5A
Enclosed pcb mount
HQA2W120W280V-007-S
120
9 - 40V
28V / 4.2A
Enclosed pcb mount
HQA24120W480V-007-S

120

18 - 40V
48V / 2.5A
Enclosed pcb mount
