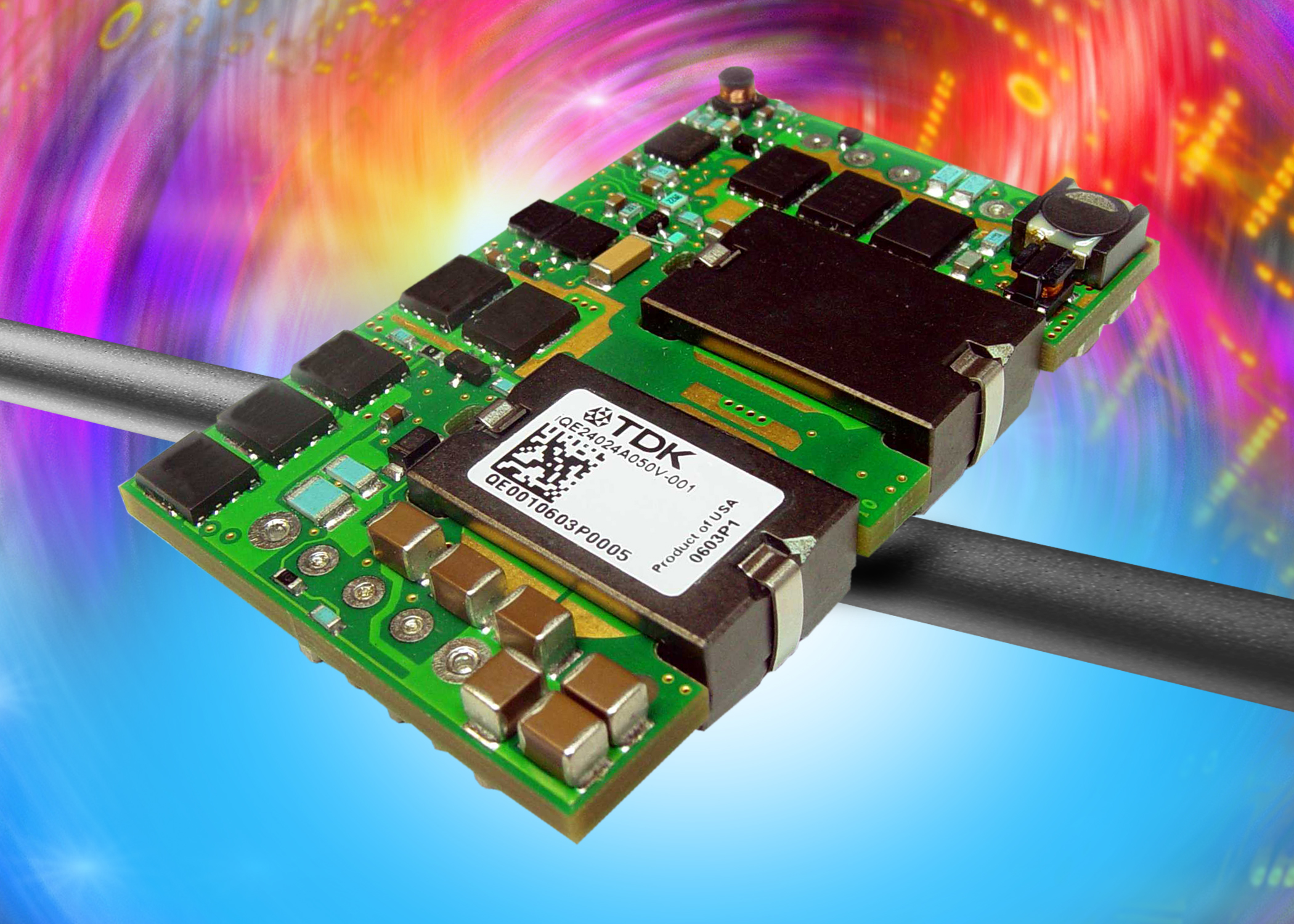

iQE Serisi 96-204W Quarter Brick DC-DC Konvertör

Genel Özellikler :
24 & 48V Inputs
Up to 30A Output
Up to 204W
DOSA Compatible
High Efficiency - up to 94%
Constant Switching Frequency 330kHz
Flat Efficiency Curve




With a low component count and single-board open-frame design, the iQE provides both solid electrical and thermal performance. These mid power quarter bricks (50 to 204W) feature a low profile of just 10.4mm and are available with 24V and 48V input voltages, and output voltages of 3.3V to 15V.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi
Model Adı
Çıkış Gücü
Giriş Volt
Çıkış Volt/Akım
Construction
Datasheet
IQE24030A033V-001-R
99
18 - 36
3.3V / 30A
Quarter Brick
IQE24024A050V-001-R
120
18 - 36
5V / 24A
Quarter Brick
IQE48030A050V-001-R
150
36 - 75
5V / 30A
Quarter Brick
IQE24009A120V-001-R
108
18 - 36
12V / 9A
Quarter Brick
IQE4W011A120V-001-R
132
18 - 60
12V / 11A
Quarter Brick
IQE48017A120V-001-R
204
36 - 75
12V / 17A
Quarter Brick
IQE48010A150V-007-R
150
36 - 75
15V / 10A
Quarter Brick
