iBD Serisi izolesiz DC-DC Konvertör (7A POL DC-DC Converters Non isolated)

Genel Özellikler :
Standard SIP Footprint (DOSA)
6.0-14VDC Input
0.8 - 5.5V Outputs
Through Hole Mounting
Low 12.7mm Profile
Non Isolated Output

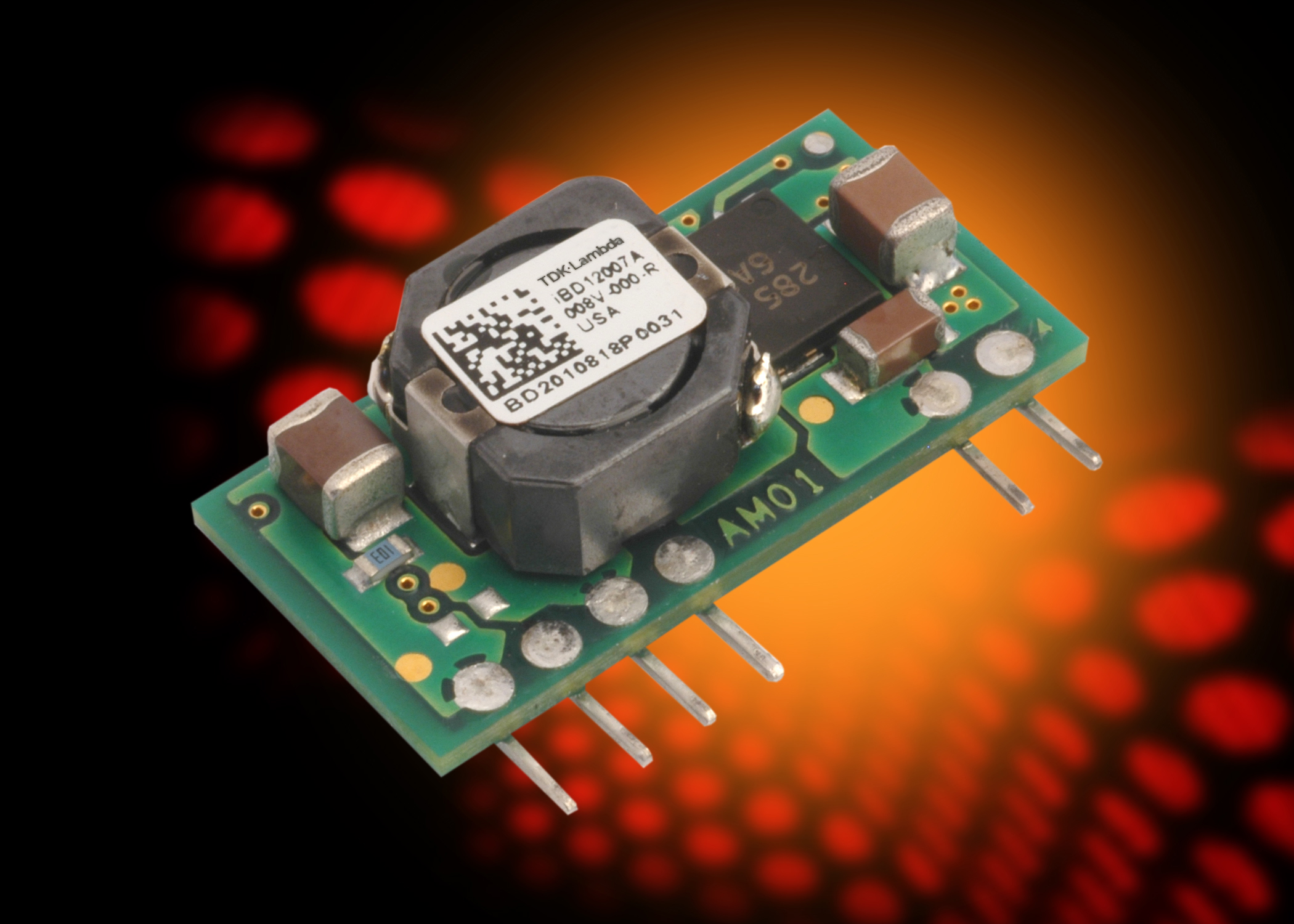

The iBD series is one of TDK-Lambda's first generation DOSA compatible Point of Load, through hole DC-DC converters. Measuring 25.4 x 8.51 x 12.7mm (LxWxH), the product will deliver up to 7A from a 12V nominal input. The efficiency at full load is 92%.
Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Construction
Datasheet
iBD12007A008V-000-R
5.6
0.8V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
7
1V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
8.4
1.2V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
10.5
1.5V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
12.6
1.8V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
14
2V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
17.5
2.5V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
23.1
3.3V / 7A
Open Frame DOSA SIP
iBD12007A008V-000-R
35
5V / 7A
Open Frame DOSA SIP
