iBF Serisi DC-DC Konvertör (DC-DC-Wandler (POL)8.4W - 60W)

Genel Özellikler :
Fully Optimised Control Loop with Excellent Transient Response
DOSA Compatible Footprint
LGA or EPC Format
3 Year Warranty

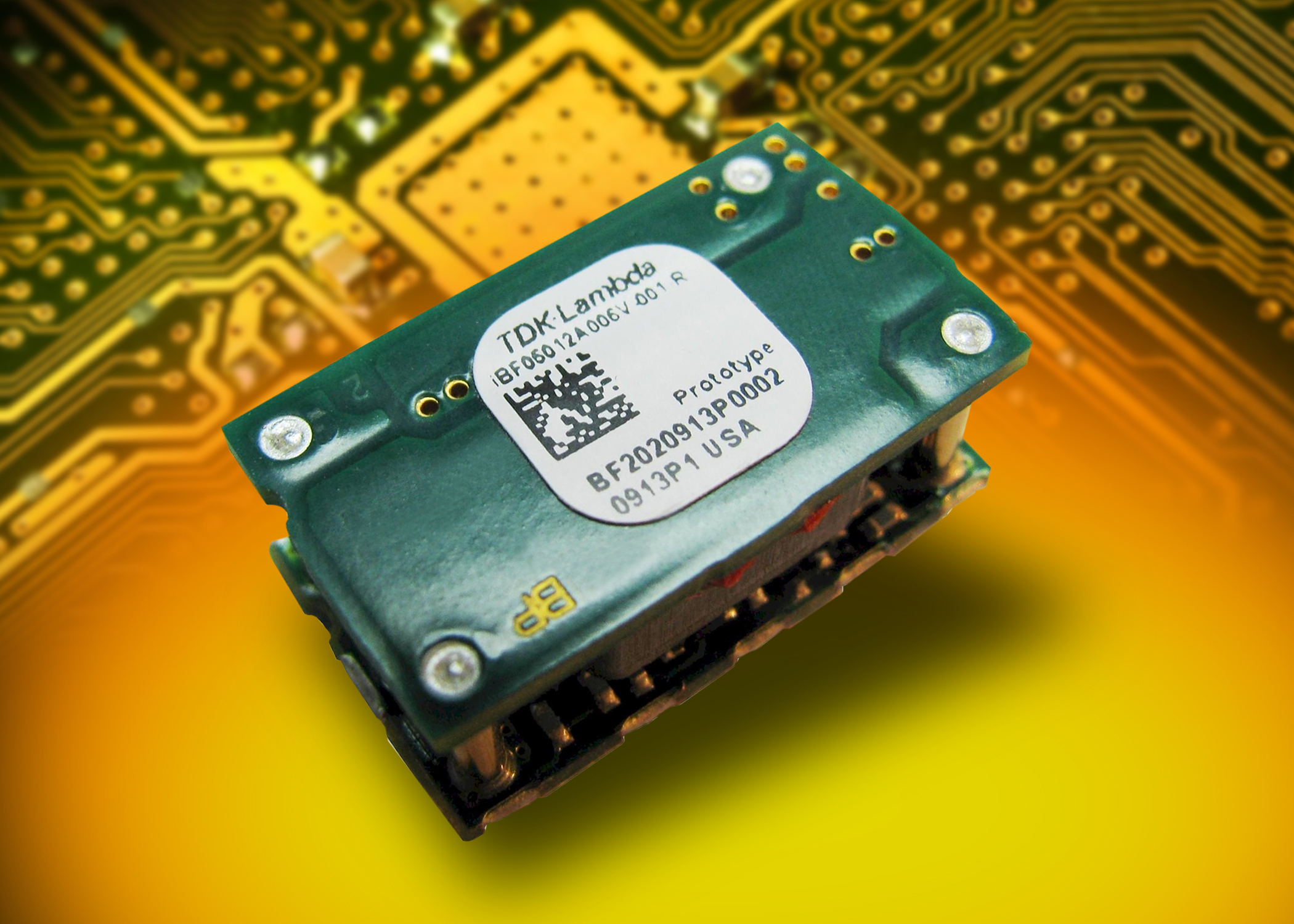

The iBF series is one of TDK-Lambda's second generation DOSA-2 compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 20.3 x 11.4mm, the product will deliver 12A (50% more than the iBA models) from either a 3.3V / 5V or 12V nominal input with efficiency levels of up to 94.5%.
Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Construction
Datasheet
iBF12012A007V-007-R
8.4
0.7V / 12A
Open Frame DOSA smt
iBF12012A007V-007-R
14.4
1.2V / 12A
Open Frame DOSA smt
iBF12012A007V-007-R
21.6
1.8V / 12A
Open Frame DOSA smt
iBF12012A007V-007-R
30
2.5V / 12A
Open Frame DOSA smt
iBF12012A007V-007-R
39.6
3.3V / 12A
Open Frame DOSA smt
iBF12012A007V-007-R
60
5V / 12A
Open Frame DOSA smt
