iCF Serisi DC-DC Konvertör (3A Non-isolated SMT DOSA 2 POL Converters)

Genel Özellikler :
Fully Optimised Control Loop with Excellent Transient Response
DOSA Compatible Footprint
LGA or EPC Format
3 Year Warranty

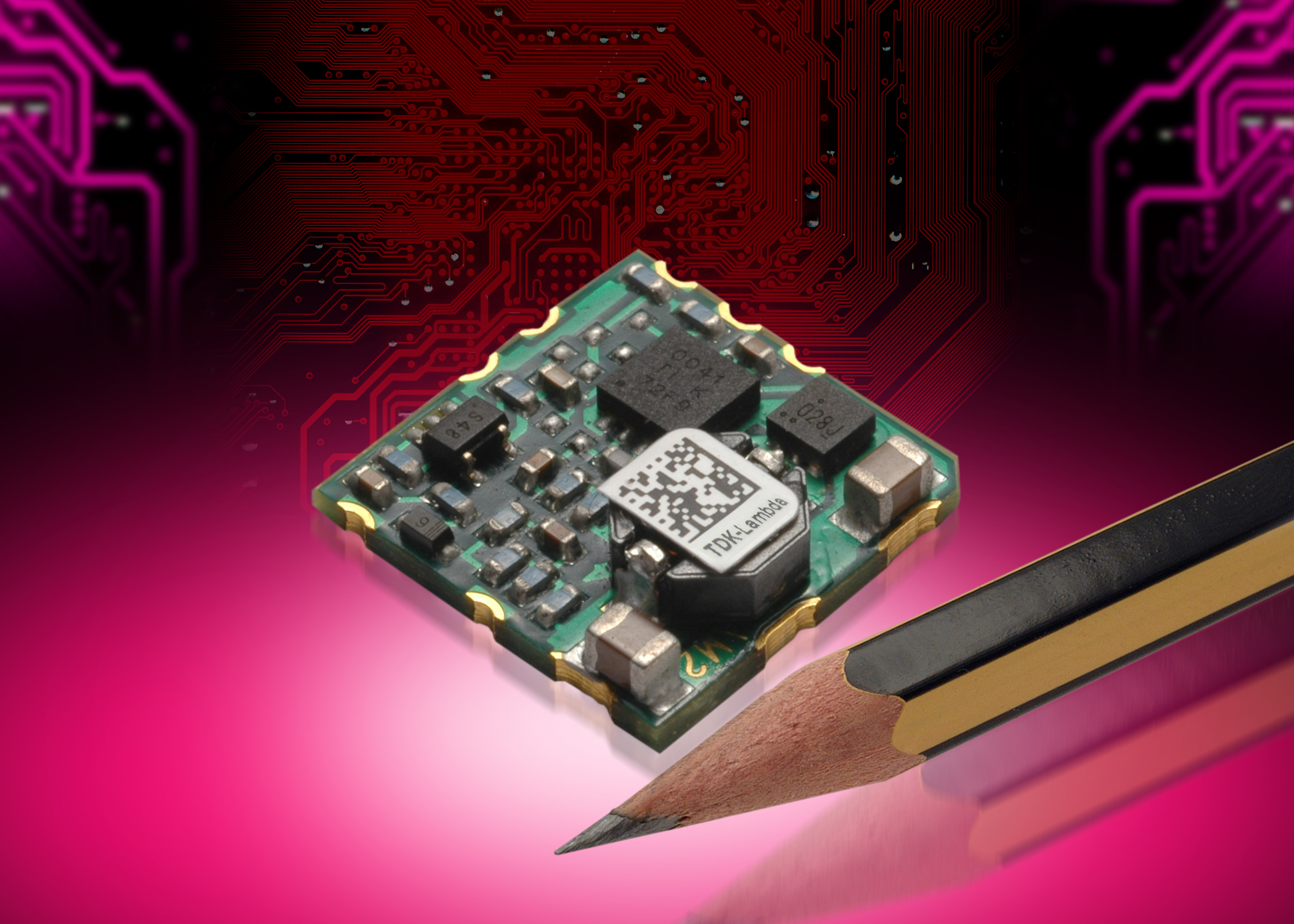

The iCF series is one of TDK-Lambda's second generation DOSA-2 compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 12.2 x 12.2mm, the product will deliver 3A from either a 3.3V / 5V or 12V nominal input with efficiency levels of up to 93.5%.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi

Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Construction
Datasheet
iCF12003A007V-007-R
2.1
0.7V / 3A
Open Frame DOSA smt
iCF12003A007V-007-R
3.6
1.2V / 3A
Open Frame DOSA smt
iCF12003A007V-007-R
5.4
1.8V / 3A
Open Frame DOSA smt
iCF12003A007V-007-R
7.5
2.5V / 3A
Open Frame DOSA smt
iCF12003A007V-007-R
9.9
3.3V / 3A
Open Frame DOSA smt
iCF12003A007V-007-R
15
5V / 3A
Open Frame DOSA smt
