iCG Serisi DC-DC Konvertör (6A Non-isolated SMT DOSA 2 POL Converters)

Genel Özellikler :
Fully Optimised Control Loop with Excellent Transient Response
DOSA Compatible Footprint
LGA or EPC Format
3 Year Warranty

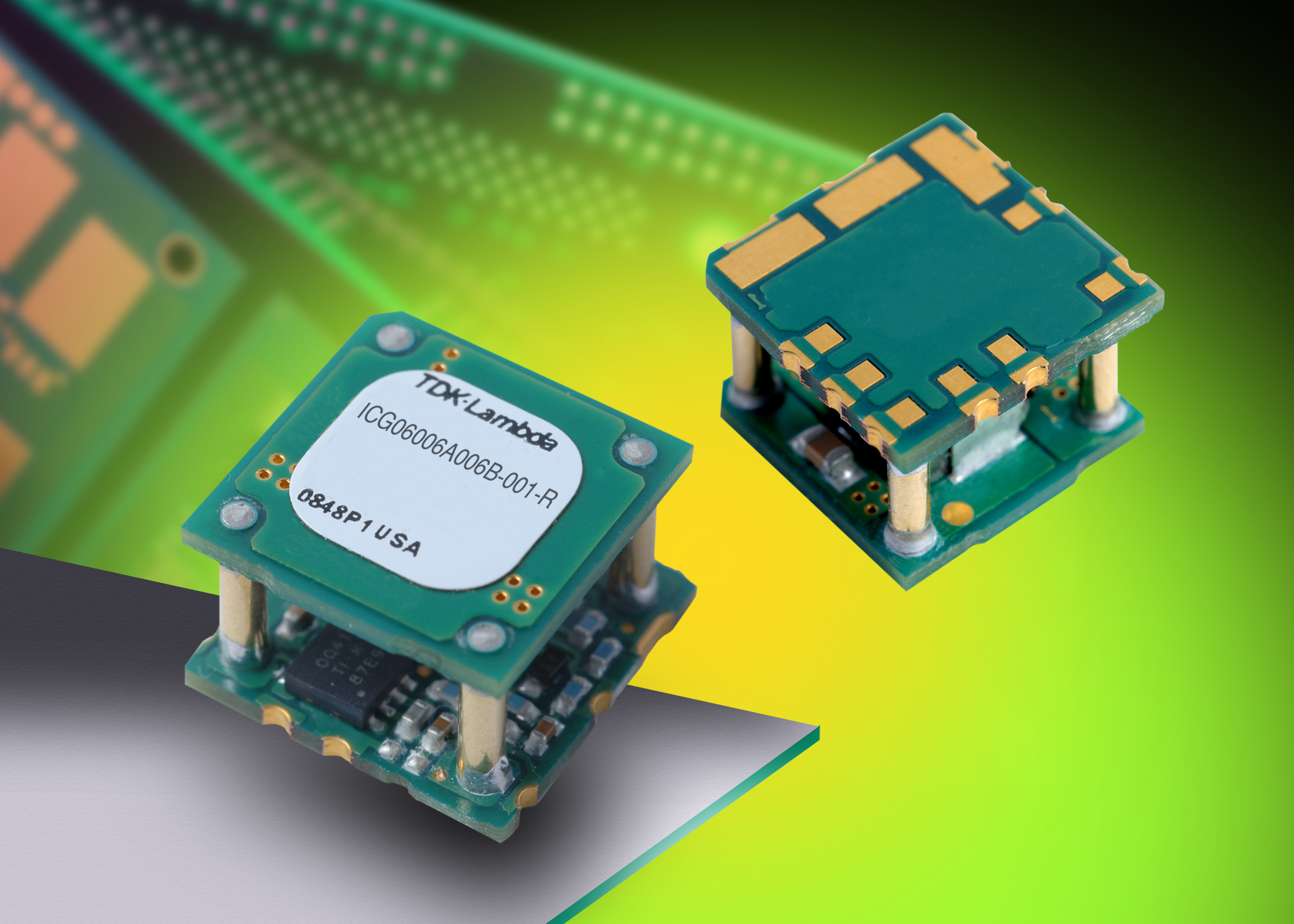

The iCG series is one of TDK-Lambda's second generation DOSA-2 compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 12.2 x 12.2mm, the product will deliver 6A from either a 3.3V / 5V or 12V nominal input with efficiency levels of up to 94%.

Teknik Broşür, Manuel ve Dosyalar
Ürünle ilgili bilgiler

Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Construction
Datasheet
iCG12006A007V-007-R
4.2
0.7V / 6A
Open Frame DOSA smt
iCG12006A007V-007-R
7.2
1.2V / 6A
Open Frame DOSA smt
iCG12006A007V-007-R
10.8
1.8V / 6A
Open Frame DOSA smt
iCG12006A007V-007-R
15
2.5V / 6A
Open Frame DOSA smt
iCG12006A007V-007-R
19.8
3.3V / 6A
Open Frame DOSA smt
iCG12006A007V-007-R
30
5V / 6A
Open Frame DOSA smt
