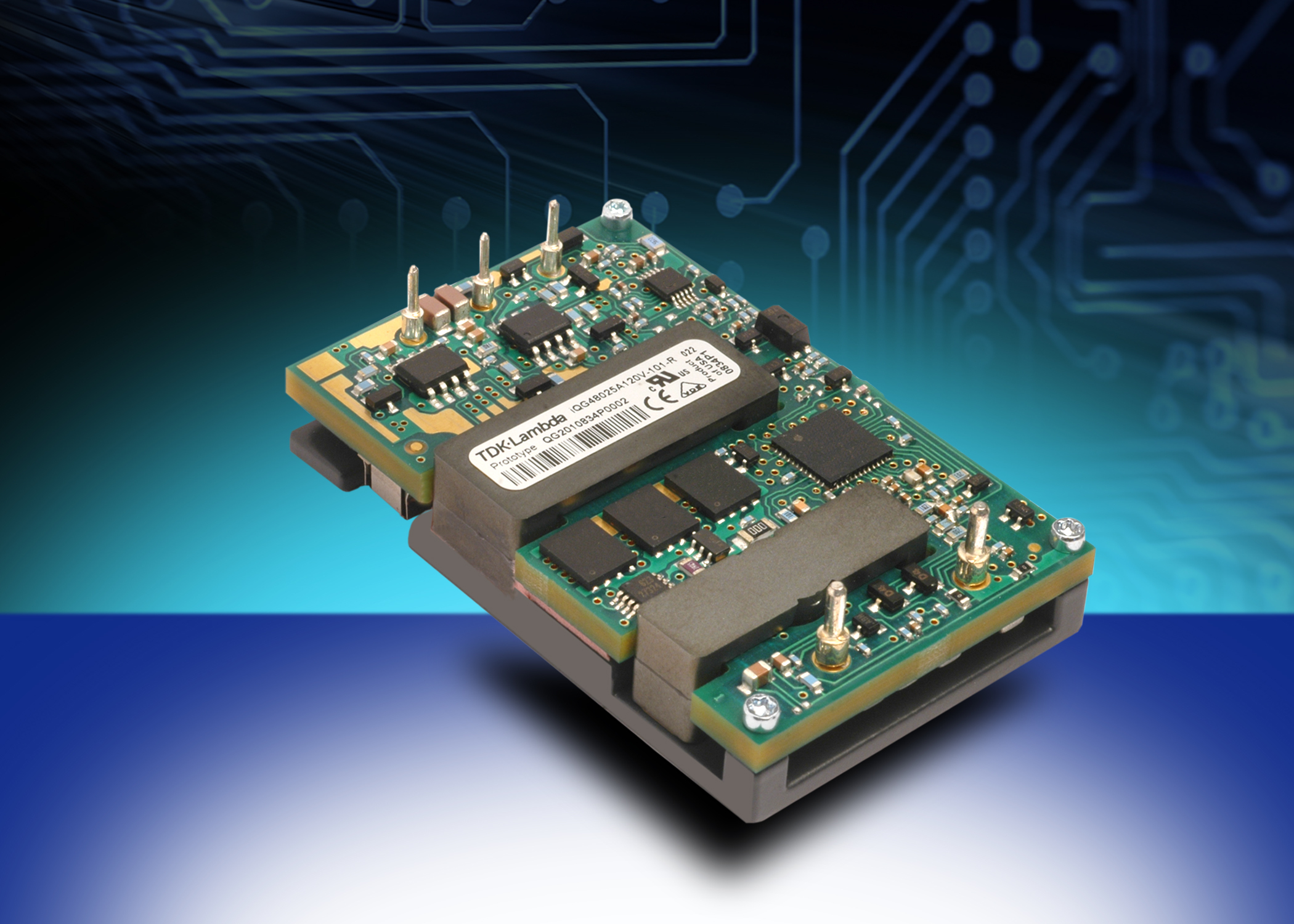

iQG Serisi 300-504W Quarter Brick DC-DC Konvertör

Genel Özellikler :
Standard Quarter Brick Footprint
36-75VDC Input
High Operating Efficiency (up to 94.5%)
Through Hole Mounting
Low Profile (13.21mm with baseplate)
1500VDC Basic Isolation




Designed for power hungry ATCA applications in demanding thermal environments, the iQG quarter brick converters feature an efficiency level of 95% and an output voltage of 12V for driving point of load converters. The series provides exceptionally high true useable power and can deliver more current at high ambient temperatures than other competing converters. A baseplate for conduction cooling or use with a heatsink is available to further enhance the output power.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

Ürün Listesi
Model Adı
Çıkış Gücü
Giriş Volt
Çıkış Volt/Akım
Construction
Datasheet
iQG48047A096V-1D1-R
450
36 - 75
9.6V / 47A
Quarter Brick
iQG48025A120V-001-R
300
36 - 75
12V / 25A
Quarter Brick
iQG48025A120V-101-R
300
36 - 75
12V / 25A
Quarter Brick
iQG48025A120V-009-R
300
36 - 75
12V / 25A
Quarter Brick
iQG48025A120V-109-R
300
36 - 75
12V / 25A
Quarter Brick
iQG48033A120V-109-R
396
36 - 75
12V / 33A
Quarter Brick
iQG48033A120V-1D9-R
396
36 - 75
12V / 33A
Quarter Brick
iQG48033A120V-101-R
400
36 - 75
12V / 33A
Quarter Brick
iQG48033A120V-1D1-R
400
36 - 75
12V / 33A
Quarter Brick
iQG48033A120V-009-R
400
36 - 75
12V / 33A
Quarter Brick
iQG48042A120V-109-R
504
36 - 75
12V / 42A
Quarter Brick
iQG48042A120V-1U9-R
504
36 - 75
12V / 42A
Quarter Brick
