ZWX Serisi 180-300W Endüstriyel ATX AC-DC Güç Kaynakları




Giriş çalışma gerilimi 85 - 265VAC (47-63Hz)
90 - 150W Convection Cooled Ratings
1U High
AFX SFX 12V Compatible
Power Factor Corrected
Peak Power Ratings
No Minimum Loading Required
Over current protection (automatic recovery)
PFC: Conforms to EN61000-3-2
EN55022 curve B
Floating Adjustable Fourth Output
Adjustable Main and Fourth Output
Can be used as Positive or Negative Output
Remote On / Off
Oper Temp (convection cooled) -10°C to 60°C, derate linearly to 50% load from 40°C to 60°C.
Oper Temp (forced air cooled) -10°C to 70°C, derate linearly to 50% load from 50°C to 70°C. (>30cfm airflow)
Uygulama Alanları


Açıklama

Targeting the industrial ATX computer market, the ZWX series will operate without any forced air cooling, enabling the product to be used in applications where the use of fans cannot be tolerated. The remote on/off and DC good signals comply with the SFX12V standards. Three power levels are available - 180W, 240W and 300W..

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler
ZWX Datasheet
ZWX Installation Manual

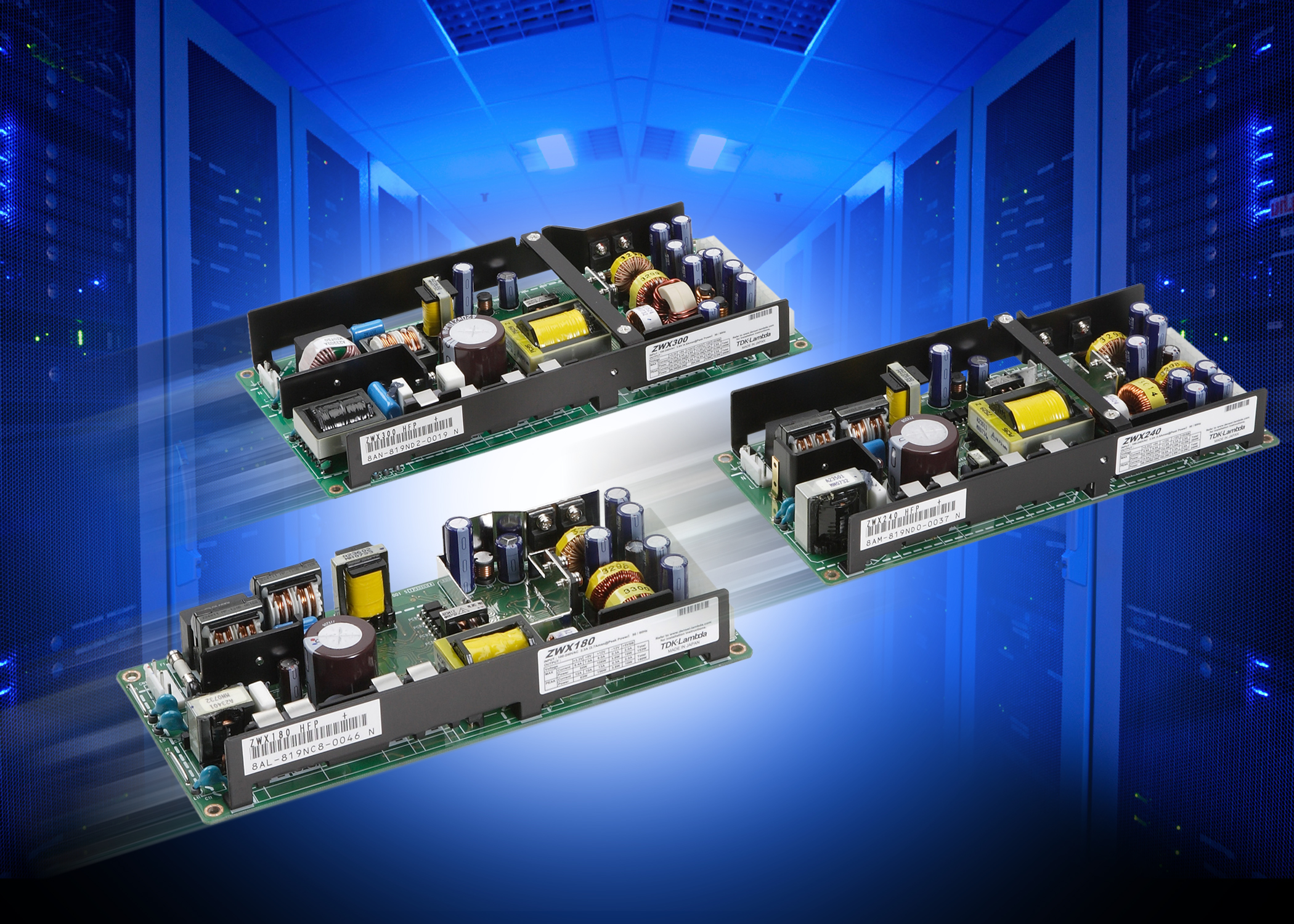

Ürün Resmi
ZWD100-225 Serisi 2 çıkışlı 100-225W




Ürün Listesi
Model Adı
Çıkış Volt
Max. Akım (Convection)
Max. Güç (Convection)
Max. Akım (Forced Air)
Max. Güç (Forced Air)
Max. Akım (Forced Air)
Max. Güç (Forced Air)
Construction
Datasheet
ZWX180
V1
3.3V
6A
90W
8.4A(5
153W
12A(5)
180W
Open Frame pcb
V2
5V
5A
7A(5)
10A(5
V3
12V
6A
9A
13A
V4
-12V
0.2A
0.3A
0.3A
V5
5V (sb)
1.4A
2A
2A
ZWX240
V1
3.3V
7A
120W
9.8A
204W
14A
240W
Open Frame pcb
V2
5V
6A
8.4A
12A
V3
12V
8A
11.2A
16A
V4
-12V
0.2A
0.3A
0.3A
V5
5V (sb)
1.4A
2A
2A
ZWX240
V1
3.3V
10A
150W
14A
255W
20A
300W
Open Frame pcb
V2
5V
6A
8.4A
12A
V3
12V
4A(6)
5.6A
8A
V4
-12V
0.2A
0.4A
0.4A
V5
5V (sb)
5A
2A
2A

Opsiyonlar
Suffix
Description
Blank
Open frame
/L1
L Bracket - input on the left side (rear mounting side facing away)
/L2
L Bracket - input on the right side (rear mounting side facing away)
/A1
Bracket & Cover - input on the left side (rear mounting side facing away)
/A2
L Bracket & Cover - input on the right side (rear mounting side facing away)
