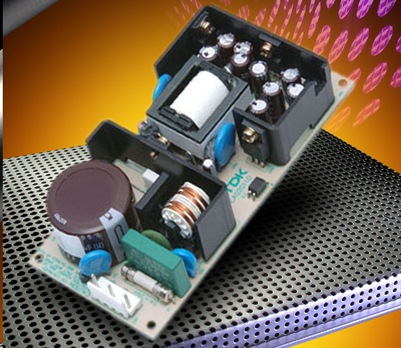

MTW Serisi 15W - 60W Low Profile Üç Çıkışlı AC-DC Güç Kaynağı




Giriş çalışma gerilimi 85 - 265VAC (47 - 440Hz)
Compact, slim and lightweight contributing to energy-saving and environmental protection
Low Cost Design
Meets UL, C-UL, TUV approvals
Conforms to FCC-B, VCCI-B, EN55011-B, EN55022-B
16-62W çıkış gücü
3 çıkışlı
Output 1 isolated from outputs 2 & 3
Outputs V2 & V3 can be connected in series
Operating Temperature -20°C start up. -10°C to +60°C, derating linearily to 70% load above 50°C
Overcurrent Protection; Automatic recovery. Hiccup style on MTW30&60
Output Voltage Adjustment Fixed
EMI: Complying with FCC Class B, VCCI-B, EN55011-B, -B
Immunity : Complying with EN61000-4-2,-3,-4,-5, -6,-8,-11
Peak load accommodatable

Uygulama Alanları


Açıklama

With a two converter topology, the MTW 15, 30 and 60W triple output power supplies do not have the minimum loading requirement found on many low power multiple output products. The main output is also isolated from the other two outputs, allowing series operation for higher voltages. Measuring just 26mm high, these slim-line products are suitable for low profile applications where height is restricted.


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler

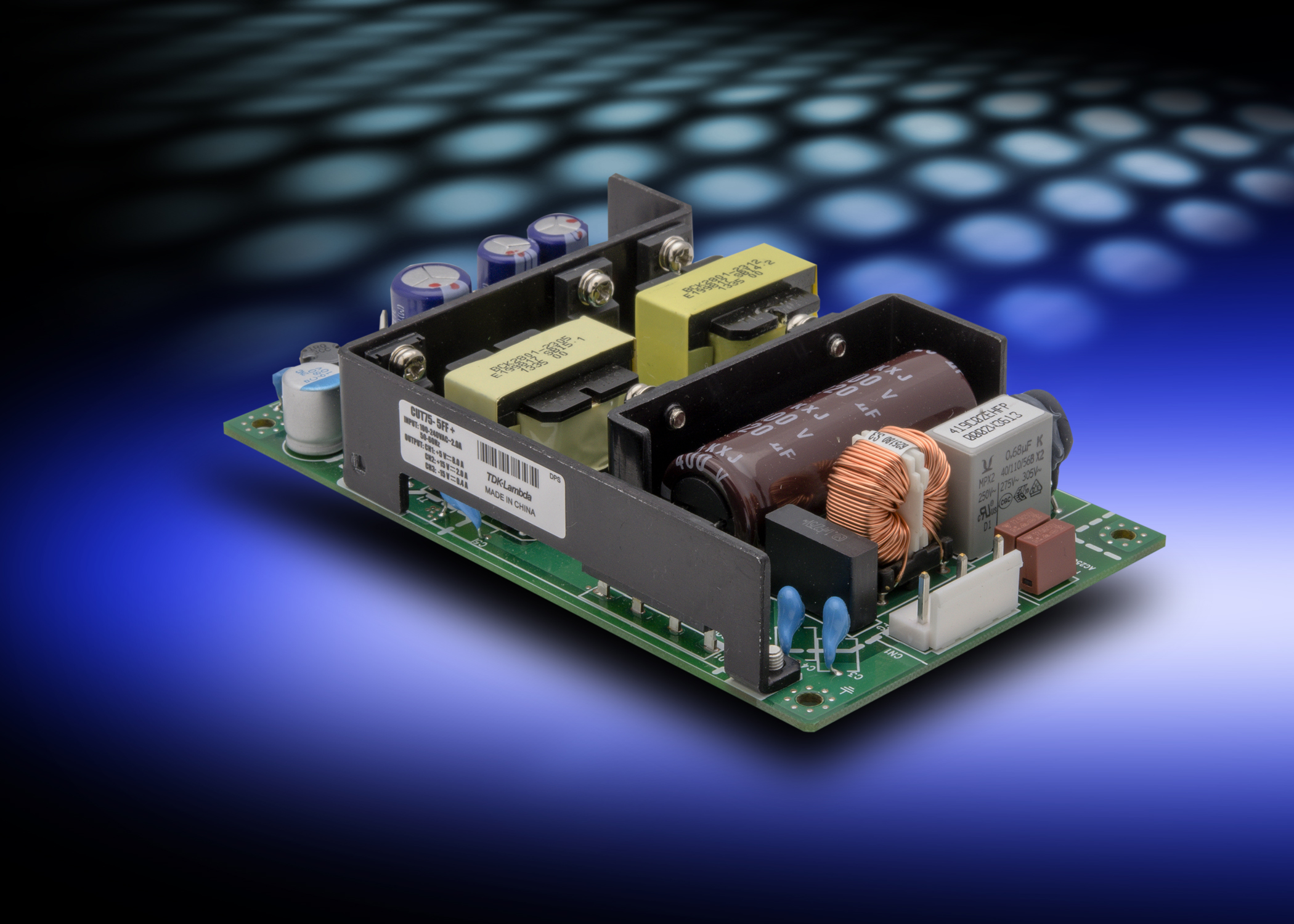

Ürün Listesi CUT-35
Model Adı
Çıkış Gerilimi
Regulation
Max. Çıkış Akımı
Peak Çıkış Akımı
Çıkış Gücü
Construction
Datasheet
MTW15-51212
V1
5V
4.75 - 5.25V
2.0A
3.0A
15W
Open Frame pcb
V2
+12V
11.4 - 12.6V
0.3A
0.6A
V3
-12V
11.4 - 12.6V
0.2A
0.3A
MTW15-51515
V1
5V
4.75 - 5.25V
2.0A
3.0A
15W
Open Frame pcb
V2
+15V
14.4 - 15.6V
0.3A
0.6A
V3
-15V
14.4 - 15.6V
0.2A 0.3A
MTW30-51212
V1
5V
4.9 - 5.3V
3.0A
4.5A
30W
Open Frame pcb
V2
+12V
11.4 - 12.6V
1.2A
2.0A
V3
-12V
11.4 - 12.6V
0.3A
0.45A
MTW30-51515
V1
5V
4.9 - 5.3V
3.0A
4.5A
30W
Open Frame pcb
V2
+15V
14.25 - 15.75V
0.8A
2.0A
V3
-15V
14.25 - 15.75V
0.3A
0.45A
MTW60-51212
V1
5V
4.9 - 5.3V
5.0A
7.0A
60W
Open Frame pcb
V2
+12V
11.4 - 12.6V
2.5A
3.5A
V3
-12V
11.4 - 12.6V
0.5A
0.7A
MTW60-1515
V1
5V
4.9 - 5.3V
5.0A
7.0A
60W
Open Frame pcb
V2
+12V
14.25 - 15.75V
2.0A
3.5A
V3
-12V
14.25 - 15.75V
0.5A
0.7A
