ZPSA Serisi 20W, 40W, 60W & 100W PCB Tip Tek Çıkışlı Low Profile AC-DC Güç Kaynağı |
| |
| |
|
|
| |
|
|
Giriş çalışma gerilimi 85 - 264VAC (47 - 440Hz) or 120 - 370VDC |
|
Single output 20W, 40W and 60W models |
|
Output voltages from 3.3V to 48Vdc |
|
Çıkış gücü 20W, 40W, 60W, 100W |
|
Low Profile, Industry Standard Footprint |
|
Temperature range 0°C to 70°C |
|
Very low height profile |
|
Industry standard 2 x 4 inch package (20W 2 x 3.5 inch) |
|
|
|
|
|
|
|
|
|
Immunity EN55022-B, FCC Class B |
|
Conducted & Radiated EMI EN55022-B, FCC Class B |
|
Safety Agency Approvals UL60950-1, CSA60950-1, EN60950-1 Class I, CE Mark (LVD) |
| |
|
|
 |
|
|
| |
|
Açıklama |

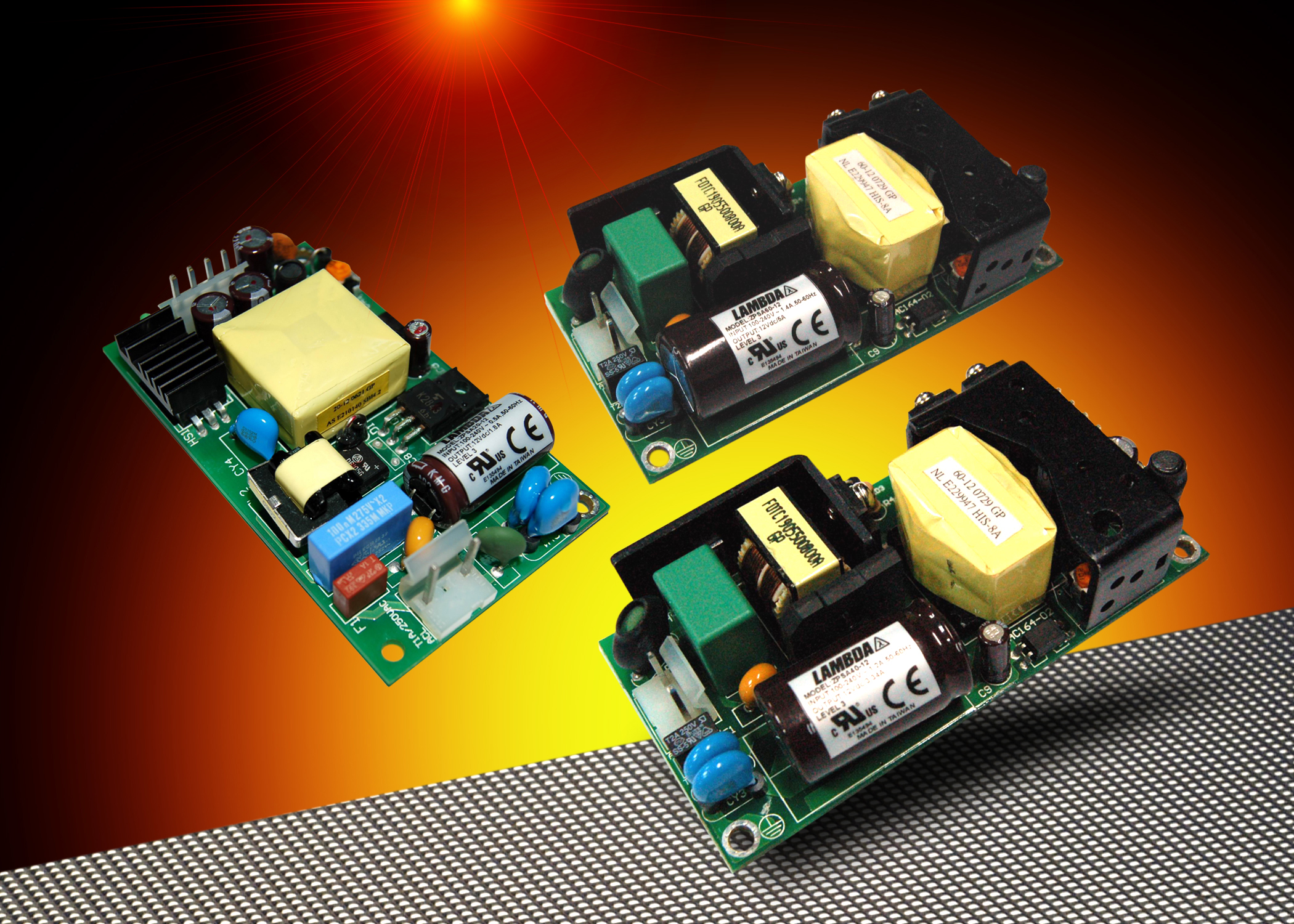

Featuring a lower profile and higher efficiency, the ZPSA series is TDK-Lambda's second generation of single output 20, 40, 60 and 100W power supplies. Output voltages are available for the most popular voltages of 3.3 to 48V. The ZPSA20 has a 2"" x 3.5"" footprint, the ZPSA40/60 a 2"" x 4"" and the ZPSA100 is in the popular 3"" x 5"" size. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ZPSA Serisi 20W-100W PCB Tip Tek Çıkışlı Low Profile AC-DC Güç Kaynağı |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
|
| |
|
|
Ürün Listesi Tek Çıkış |
Model Adı |
Çıkış Gücü |
Çıkış Gerilim/Akım |
Construction |
Datasheet |
ZPSA20-3R3 |
14.52W |
3.3V / 4.4A |
Open Frame pcb |
|
ZPSA40-3R3 |
19.8W |
3.3V / 6A |
Open Frame pcb |
|
ZPSA60-3R3 |
26.4W |
3.3V / 8A |
Open Frame pcb |
|
ZPSA20-5 |
22W |
5V / 4.4A |
Open Frame pcb |
|
ZPSA40-5 |
30W |
5V / 6A |
Open Frame pcb |
|
ZPSA60-5 |
40W |
5V / 8A |
Open Frame pcb |
|
ZPSA100-5 |
100W |
5V / 20A |
Open Frame pcb |
|
ZPSA20-9 |
21.6W |
9V / 2.4A |
Open Frame pcb |
|
ZPSA40-9 |
40.05W |
9V / 4.45A |
Open Frame pcb |
|
ZPSA60-9 |
60.03W |
9V / 6.67A |
Open Frame pcb |
|
ZPSA100-9 |
100.8W |
9V / 11.2A |
Open Frame pcb |
|
ZPSA20-12 |
21.6W |
12V / 1.8A |
Open Frame pcb |
|
ZPSA40-12 |
40.08W |
12V / 3.34A |
Open Frame pcb |
|
ZPSA60-12 |
60W |
12V / 5A |
Open Frame pcb |
|
ZPSA100-12 |
100.8 |
12V / 8.4A |
Open Frame pcb |
|
ZPSA20-15 |
21W |
15V / 1.4A |
Open Frame pcb |
|
ZPSA40-15 |
40.05W |
15V / 2.67A |
Open Frame pcb |
|
ZPSA60-15 |
60W |
15V / 4A |
Open Frame pcb |
|
ZPSA100-15 |
100.5W |
15V / 6.7A |
Open Frame pcb |
|
ZPSA100-18 |
100.8W |
18V / 5.6A |
Open Frame pcb |
|
ZPSA20-24 |
21.6W |
24V / 0.9A |
Open Frame pcb |
|
ZPSA40-24 |
40.08W |
24V / 1.67A |
Open Frame pcb |
|
ZPSA60-24 |
60W |
24V / 2.5A |
Open Frame pcb |
|
ZPSA100-24 |
100.8W |
24V / 4.2A |
Open Frame pcb |
|
ZPSA40-28 |
40.04W |
28V / 1.43A |
Open Frame pcb |
|
ZPSA60-28 |
59.92W |
28V / 2.14A |
Open Frame pcb |
|
ZPSA40-30 |
39.9W |
30V / 1.33A |
Open Frame pcb |
|
ZPSA60-30 |
60W |
30V / 2A |
Open Frame pcb |
|
ZPSA40-36 |
39.96W |
36V / 1.11A |
Open Frame pcb |
|
ZPSA60-36 |
60.12W |
36V / 1.67A |
Open Frame pcb |
|
ZPSA40-48 |
40.032W |
48V / 0.834A |
Open Frame pcb |
|
ZPSA60-48 |
60W |
48V / 1.25A |
Open Frame pcb |
|
ZPSA100-48 |
100.8W |
48V / 2.1A |
Open Frame pcb |
|
|
| |
|
|
|
| |
|
|
|
|
