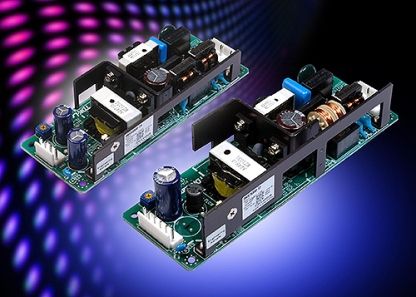

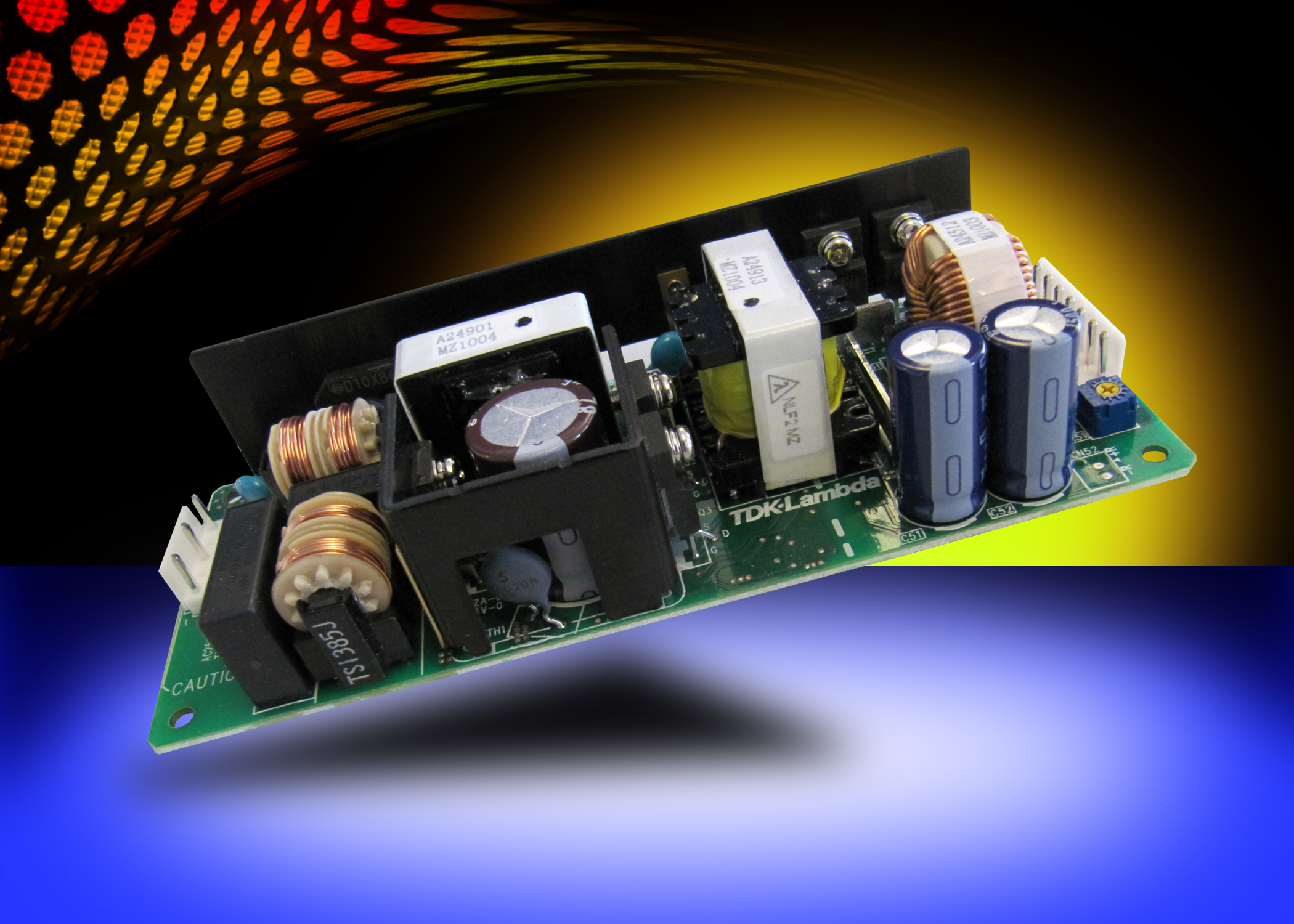

ZWS-BAF Serisi 50-300W PCB-Type Tek çıkışlı AC-DC Güç Kaynağı |
| |
| |
|
|
| |
|
|
Giriş çalışma gerilimi 85 - 265VAC (47-63Hz), 120 - 370VDC |
|
3V, 5V, 12V, 15V, 24V ve 48V çıkış gerilimleri |
|
50W, 75W, 100W, 150W ve 300W çıkış gücü |
|
Active Power Factor Correction - Designed to meet EN/IEC61000-3-2 |
|
Doğal soğutmalı |
|
Remote on/off |
|
Conformally coated PCB |
|
E-cap lifetime Up to 10 years; 45°C ambient, 100% full load, 24 hours |
|
Compact Design |
|
Operating Temperature (Convection) 10°C to +70°C, derate linearly to 50% load from 50°C to 70°C |
|
Low Cost & High Reliability |
| |
|
| |
|
|
 |
| |
|
|
| |
|
Açıklama |
| Next generation ZWS-BAF open frame power supplies are now available in five power levels, 50W, 75W, 100W, 150W and a more powerful 300W version. The series has both convection and forced air cooling ratings and is backed by a five year warranty. The conservatively rated products have 10 year electrolytic capacitor lifetimes, ideal for professional and industrial equipment requiring long-term reliable operation. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ZPSA Serisi 20W-100W PCB Tip Tek Çıkışlı Low Profile AC-DC Güç Kaynağı |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
|
| |
|
|
Ürün Listesi |
Model Adı |
Çıkış Volt |
Gerilim Ayar Aralığı |
Çıkış Akım |
Çıkış Gücü |
Construction |
Datasheet |
ZWS50BAF-3 |
3.3V |
2.97 - 3.63V |
10A |
33W |
Open Frame pcb |
|
ZWS50BAF-5 |
5V |
4.5 - 5.5V |
10A |
50W |
Open Frame pcb |
|
ZWS50BAF-12 |
12V |
10.8 - 13.2V |
4,5A |
51,6W |
Open Frame pcb |
|
ZWS50BAF-15 |
15V |
13.5 - 16.5V |
3,5A |
52,5W |
Open Frame pcb |
|
ZWS50BAF-24 |
24V |
21.6 - 26.4V |
2,1A |
50,4W |
Open Frame pcb |
|
ZWS50BAF-48 |
48V |
39.5 - 52.8V |
1,1A |
52,8W |
Open Frame pcb |
|
ZWS75BAF-3 |
3.3V |
2.97 - 3.63V |
15A |
49,5W |
Open Frame pcb |
|
ZWS75BAF-5 |
5V |
4.5 - 5.5V |
15A |
75W |
Open Frame pcb |
|
ZWS75BAF-12 |
12V |
10.8 - 13.2V |
6,3A |
75,6W |
Open Frame pcb |
|
ZWS75BAF-15 |
15V |
13.5 - 16.5V |
5A |
75W |
Open Frame pcb |
|
ZWS75BAF-24 |
24V |
21.6 - 26.4V |
3,2A |
76,8W |
Open Frame pcb |
|
ZWS75BAF-48 |
48V |
39.5 - 52.8V |
1,6A |
76,8W |
Open Frame pcb |
|
ZWS100BAF-3 |
3.3V |
2.97 - 3.63V |
20A |
66W |
Open Frame pcb |
|
ZWS100BAF-5 |
5V |
4.5 - 5.5V |
20A |
100W |
Open Frame pcb |
|
ZWS100BAF-12 |
12V |
10.8 - 13.2V |
8,5A |
102W |
Open Frame pcb |
|
ZWS100BAF-15 |
15V |
13.5 - 16.5V |
6,7A |
100,5W |
Open Frame pcb |
|
ZWS100BAF-24 |
24V |
21.6 - 26.4V |
4,3A |
103,2W |
Open Frame pcb |
|
ZWS100BAF-48 |
48V |
39.5 - 52.8V |
2,1A |
100,8W |
Open Frame pcb |
|
ZWS150BAF-3 |
3.3V |
2.97 - 3.63V |
30A |
99W |
Open Frame pcb |
|
ZWS150BAF-5 |
5V |
4.5 - 5.5V |
30A |
150W |
Open Frame pcb |
|
ZWS150BAF-12 |
12V |
10.8 - 13.2V |
12.5A |
150W |
Open Frame pcb |
|
ZWS150BAF-15 |
24V |
21.6 - 26.4V |
10A |
150W |
Open Frame pcb |
|
ZWS150BAF-24 |
15V |
13.5 - 16.5V |
6,3A |
151,2W |
Open Frame pcb |
|
ZWS150BAF-48 |
48V |
39.5 - 52.8V |
3,2A |
153,6W |
Open Frame pcb |
|
ZWS300BAF-12 |
12V |
10.8 - 13.2V |
25A |
300W |
Open Frame pcb |
|
ZWS300BAF-15 |
15V |
13.5 - 16.5V |
20A |
300W |
Open Frame pcb |
|
ZWS300BAF-24 |
24V |
21.6 - 26.4V |
12,5A |
300W |
Open Frame pcb |
|
ZWS300BAF-36 |
36V |
32.4 - 39.6V |
8,4A |
300,4W |
Open Frame pcb |
|
ZWS300BAF-48 |
48V |
39.5 - 52.8V |
6,3A |
302,4W |
Open Frame pcb |
|
|
| |
Opsiyonlar |
Description |
Suffix |

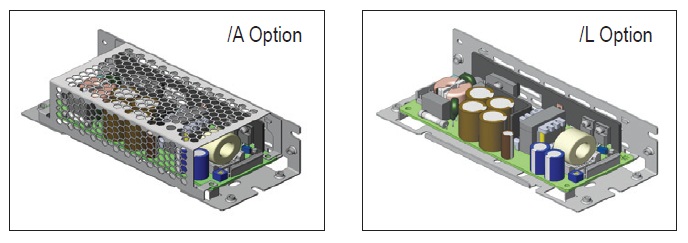

L-Plate and Cover |
/A |
L-Plate |
/L |
Conformally coated PCB |
/CO2 |
Fixed Output Voltage |
/FV |
Remote on/off |
/R |
Terminal Block |
/T |
Terminal Block with L-Plate |
/TL |
Terminal Block with L-Plate & Cover |
/TA |
|
|
|
ZWS-BAF Option Matrix |
Power |
|
/L |
/CO2 |
/FV |
/R |
/T |
/TL |
/TA |
50W |
|
|
|
|
|
|
|
|
75W |
|
|
|
|
|
|
|
|
100W |
|
|
|
|
|
|
|
|
150W |
|
|
|
|
|
|
|
|
300W |
|
|
|
|
|
|
|
|
|
|
|
| |
 |
| |
|
|
|
| |
|
|
|
|
