ALPHA (CA) Serisi 1000W-1500W Modular AC-DC Güç Kaynağı



Wide Range Input (85-264Vac Continuous, Single Phase, 47 - 63Hz (440Hz with reduced PFC - consult sales office))
Active Power Factor Correction (0.99 typical)
1 to 14 outputs modular
Standard or Configurable
No Minimum Load
Rapid Connection
EN61000-3-2 Compliant
Class B Conducted
Low Leakage Medical Versions
Medical Approval available (CA1000)
Temperature 0°C to 70°C operational, -40°C to 70°C storage


Uygulama Alanları


NOT : Bu modeli yeni tasarımlarda kullanmayınız. Önerilen model QM serisidir.

Açıklama

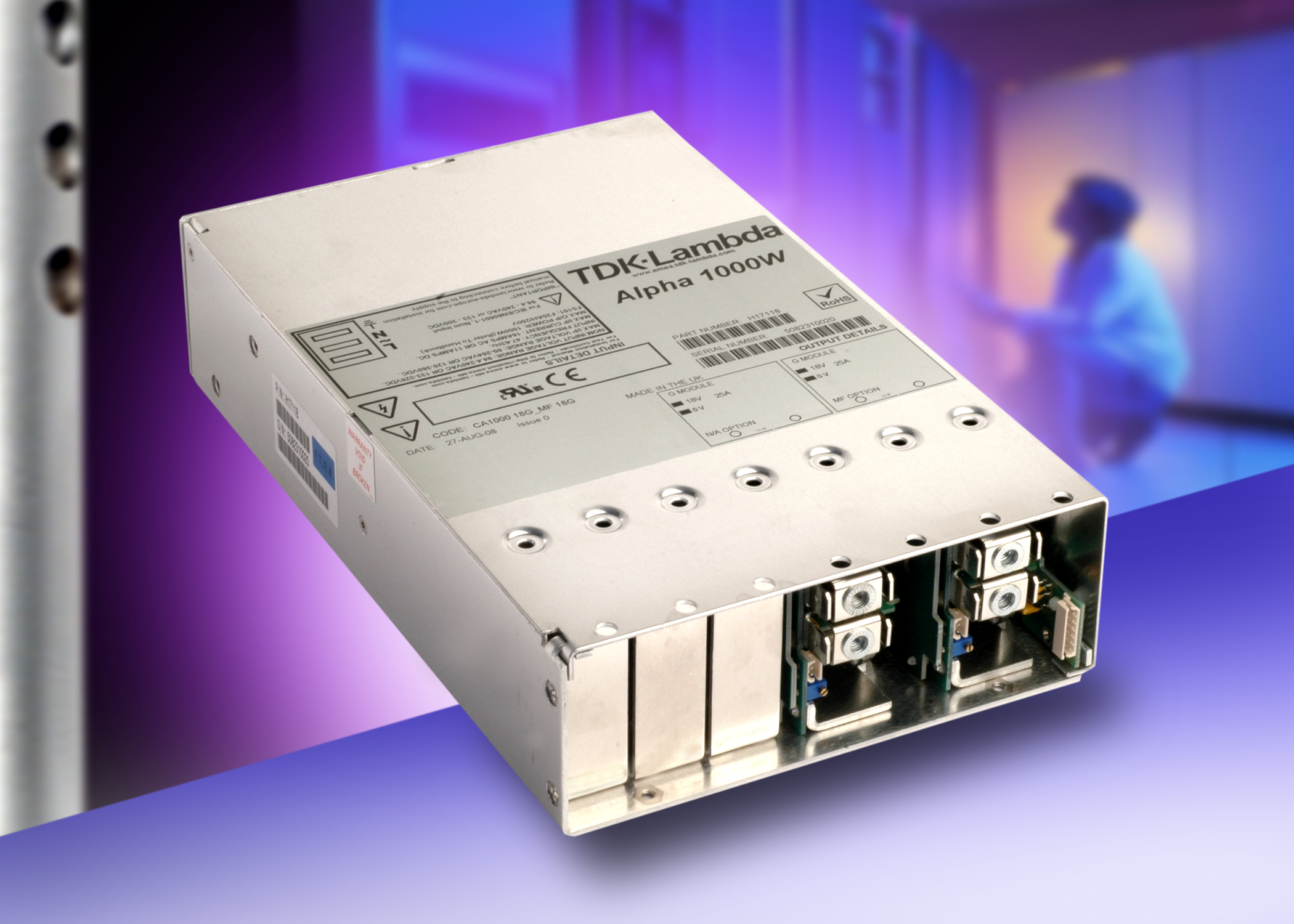

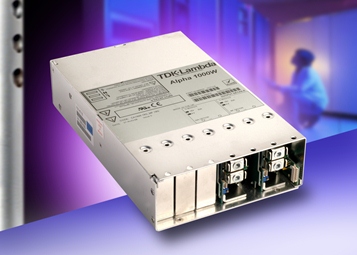

TDK-Lambda's Alpha series of 1000 to 1500W modular supplies are fully configurable and can provide between one and 16 adjustable outputs. Up to 8 modules – single or dual outputs – can be fitted with output voltages from 1.8V to 48V and output currents of up to 120 amps. No minimum loads are required and inhibit, AC fail, current-share and DC-good signals are available as options. IEC 60601-1 medical certifications are available for the 1000W model.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Gerilim/Akım
Construction
Data Sheet
CA1000 12C 5A 3.3R 12F
1000W
12V / 1A
5V / 60A
3.3V / 60A
12V / 33A
Enclosed
CA1000 5A 12F 12F
1000W
5V / 60A
12V / 33A
12V / 33A

Enclosed
CA1000 24G_PP 24G_PP
960W
24V / 40A
Enclosed
