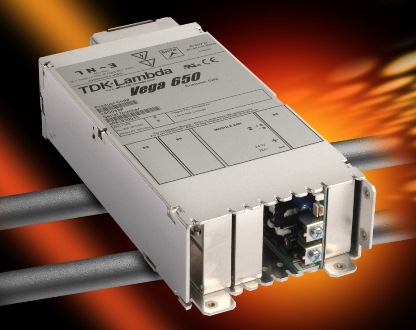

VEGA Serisi 450, 650&900W Modüler AC-DC Güç Kaynağı

Genel Özellikler :
Power Density 5.8W/cu in
450 watts to 900 watts
1-10 fixed or adjustable  modular o/ps
Output voltages - 1.8-64 V full overlap
Output current - 1A-120A
Cooling - System air/End fan/Reverse fan
Signal options - Mains fail, Global inhibit, Output good, Output inhibit

Medical and Industrial safety approvals



TDK-Lambda's Vega series of 450, 650 and 900W modular supplies are fully configurable and can provide between one and ten adjustable outputs. Up to 5 modules – single or dual outputs – can be fitted with output voltages from 1.8V to 64V and output currents of up to 120 amps. No minimum loads are required and inhibit, AC fail, current-share and DC-good signals are available as options. Both IEC 60950-1 and medical 60601-1 certifications are available with a variety of cooling and earth leakage current options.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Part No
Çıkış Gücü
Çıkış V/A
Construction
Data Sheet
V4FSS 15B3S 15B3S 9,5/9,5H3/3S
V406LTB
450W
Enclosed
V6FS 15C3S 15C3S 5Z18N
V608BNJ
650W

Enclosed
V6FSS 24/15H5/3S 5D2SN 24C5SN 15/15H3/3S
V6G03P9
650W
Enclosed
V6QFS 31B5F 24D5F 24D5F
V6G02YH
650W
Enclosed
V9FSE 24/24H5/4SN 24B5SN 24/24H5/4SN
K90053A
900W
24V / 5A
24V / 4.5A
24V / 6A
24V / 5A
24V / 4.5A
Enclosed

V6G0831
650W
3.3V / 35A
5V / 60A
12V / 10A
12V / 6A
Enclosed

V6G0740
650W
24V / 25A
3.3V / 60A
Enclosed

V4G01S7
450W
12V / 10A
24V / 4.5A
12V / 12A
5V / 20A
Enclosed

V4G02N5
450W
12V / 10A
12V / 6A
5V / 60A
Enclosed

V4G035R
450W
24V / 6A
5V / 60A
12V / 12A
12V / 12A
Enclosed

V4G036S
450W
24V / 6A
5V / 60A
12V / 10A
12V / 6A
Enclosed

V6005DX
650W
24V / 6A
5V / 60A
12V / 10A
12V / 6A
Enclosed
